- Econosto Globe Valve DN100 PN16 – Manual Handwheel, Flanged Ends
Description

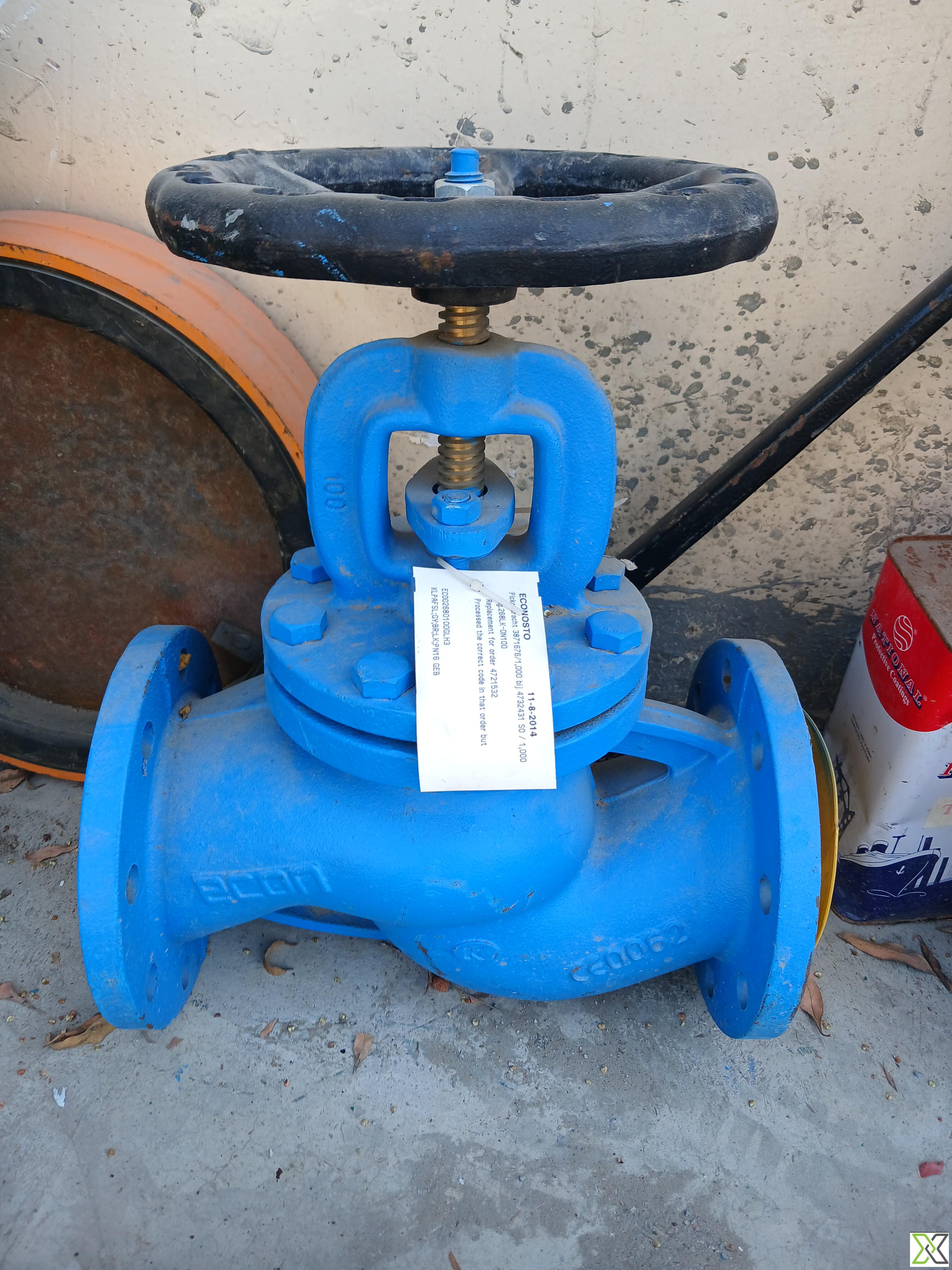

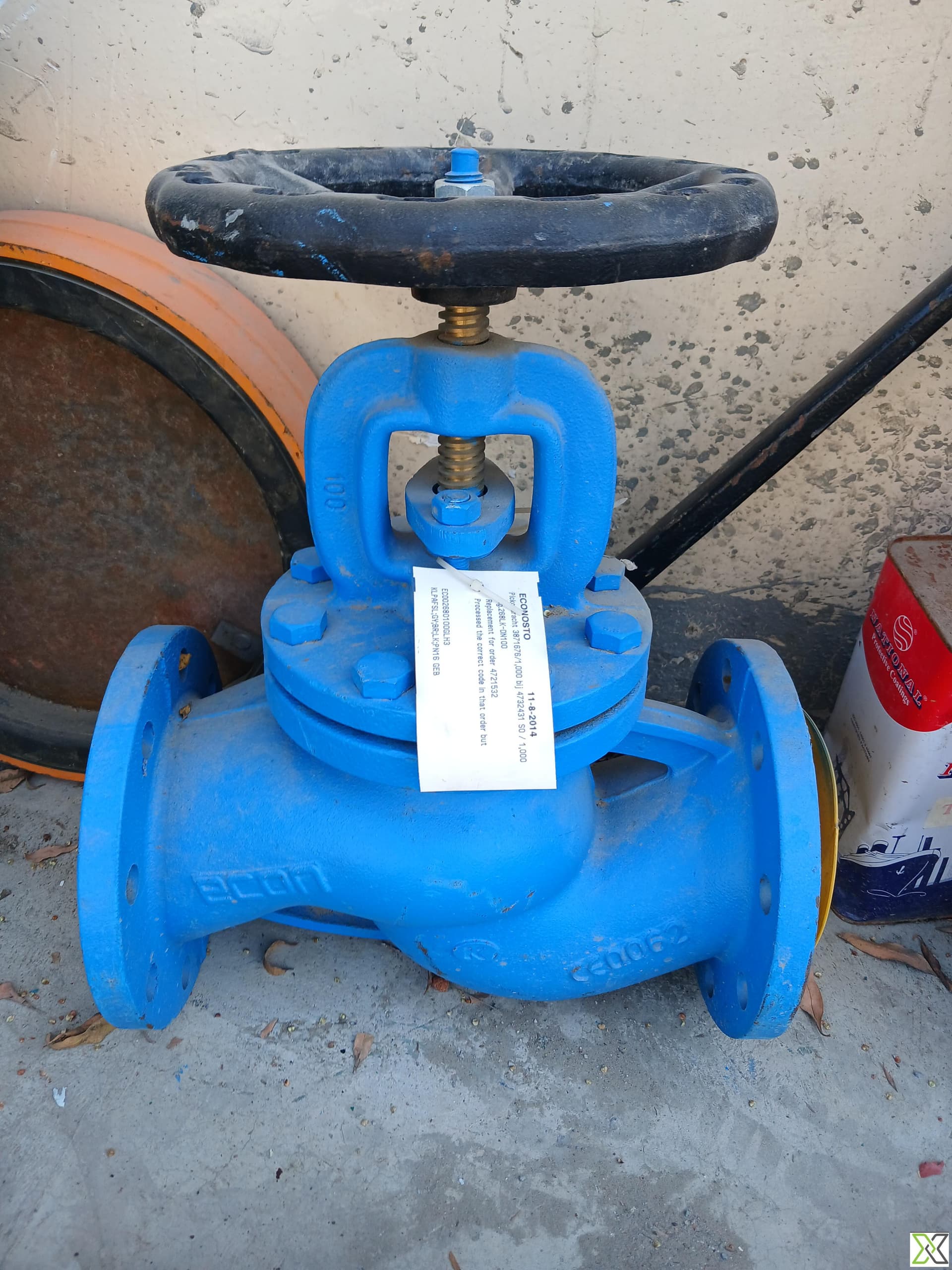

Econosto Globe Valve DN100 PN16 – Manual Handwheel, Flanged Ends
Description:
The Econosto Globe Valve DN100 PN16 is a high-quality industrial valve designed for precise flow regulation and shut-off in fluid systems. Manufactured under the model code 9-268LK-DN100, this valve features a manual handwheel operation and flanged end connections for secure pipeline integration. The valve is rated for PN16 pressure, making it suitable for moderate pressure applications. Constructed with durable materials and finished in blue, it carries the tag EC002680100GLH3 and was manufactured or replaced on 11 August 2014. The material code KLPAFSL.CGY.BRL.K.PN16.GEB provides traceability for material specification and compatibility assurance.
Specifications:
– Brand: Econosto
– Model Code: 9-268LK-DN100
– Valve Type: Globe Valve
– Operation: Manual (Handwheel)
– Nominal Size: DN100
– Pressure Rating: PN16
– Connection Type: Flanged Ends
– Body Color: Blue

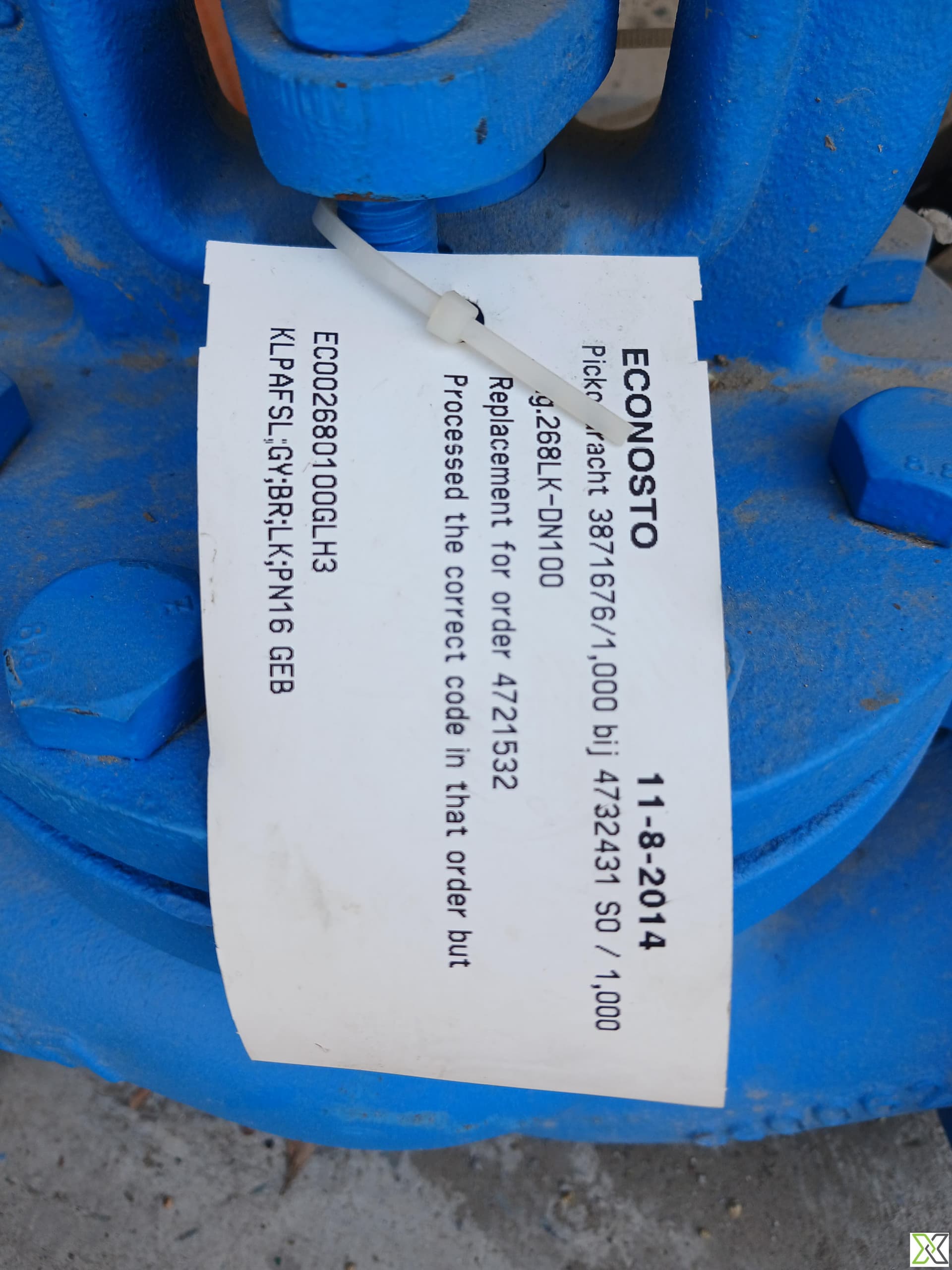

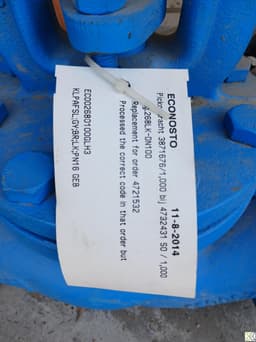

– Tag Info: EC002680100GLH3
– Date of Manufacture/Replacement: 11-08-2014
– Material Code: KLPAFSL.CGY.BRL.K.PN16.GEB
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
Technical Details
| Year of Manufacturing | 2014 |
|---|---|
| ISO 15926 Pt 4 | 10554 |
| Model Number | 9-268LK-DN100 |
| Year of Manufacturing | 2014 |
| Manufacturer Name | Econosto |
| Height | 450 mm |
| Width | 300 mm |
| Length | 230 mm |
| Weight | 35–40 kg |
| ISO 15926 Pt 4 | 10554 |
| PCA RDS Code | RDS292589 |
| CFIHOS ID | CFIHOS-30000660 |
| IFC Class | IfcValve |
| Design Specification | EN 13709 / EN 558-1 |
| Failure Action | Fail-Last Position |
| Fluid Name | Water, Steam, Air, Oil |
| Full Opening Valve | No |
| Nominal Diameter | DN100 |
| Normal Operating Pressure | 16 bar |
| Normal Operating Temperature | -10°C to +200°C |
| Piping Class | PN16 / EN 1092-1 Flange Compatibility |
| UNSPSC Code | 40141600 |
