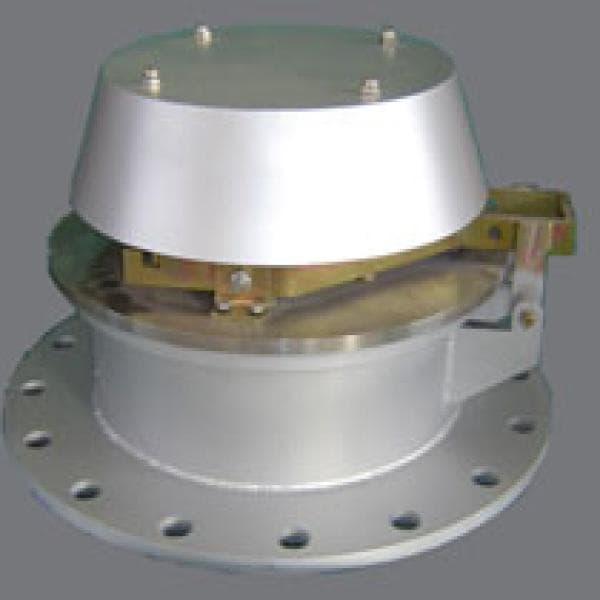

BZSV Emergency Relief Valve – 16" to 24", ANSI 150LB RF

The BZSV Emergency Relief Valve series is designed for rapid overpressure protection in large atmospheric and low-pressure storage tanks. Available in 16", 20", and 24" diameters, these valves feature ANSI B16.5 150LB raised-face flanged connections and are constructed from robust carbon steel, stainless steel, or other customizable materials.

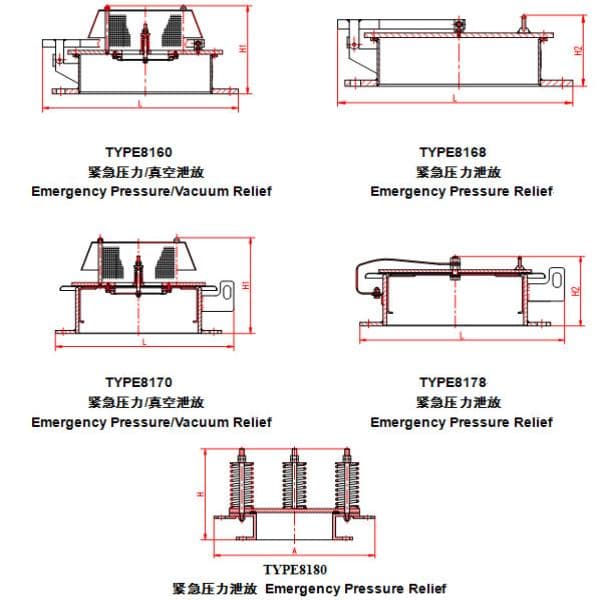

Several model configurations serve specific functions:

Type 8160 / 8168: Equipped with an opening stop block that assists valve seat re-closure after activation.

Type 8170 / 8178: Designed with a guided bonnet to ensure controlled valve movement and enhanced alignment during operation.

Type 8180: Spring-loaded variant suited for tanks requiring higher set pressures. It opens automatically when the tank pressure reaches a preset limit and closes securely once pressure is relieved.

These valves provide essential overpressure protection while maintaining structural integrity and operational reliability in critical containment systems.

Specifications:

– Valve Type: Emergency relief valve
– Model Types: 8160, 8168, 8170, 8178, 8180
– Size Range: 16", 20", 24"
– Pressure Class: 150LB
– Inlet/Outlet Flanges: ANSI B16.5 150LB RF (customizable as per request)
– Body Material Options: Carbon steel, stainless steel, other alloys
– Operation Types:
 • 8160 / 8168: Mechanical stop-block assisted reset
 • 8170 / 8178: Guided bonnet mechanism
 • 8180: Spring-loaded for higher set pressures
– Function: Pressure relief and re-sealing

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
