Emergency Shut Off Valves – Cast Steel, JIS/DIN, ½” to 4”, PN16/10K Rated

ReflowX SKU: REF-9490

Product Details

Quantity

200
Availability (Lead Time)

6-10 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

China, Korea
Equipment code

Get Quotation Whatsapp

Short Description

High-reliability cast steel emergency shut off valves in ½” to 4” sizes, designed to meet JIS and DIN standards for rapid isolation in critical systems. Available in JIS 5K/10K and PN6/PN16 pressure ratings.

Description

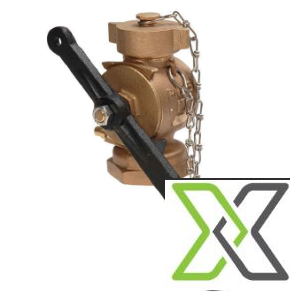

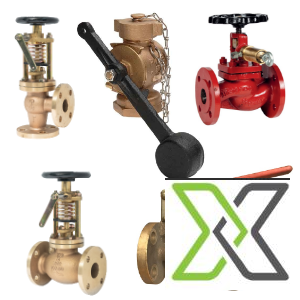

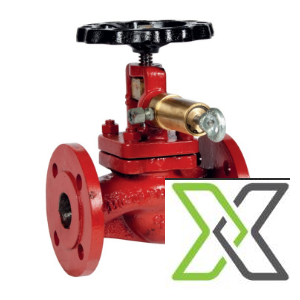

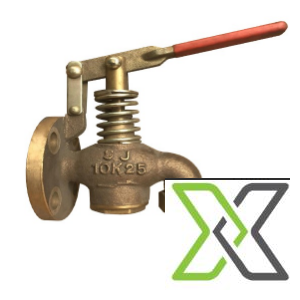

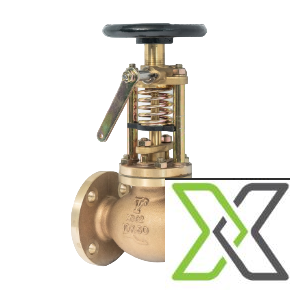

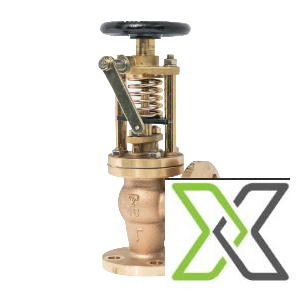

Emergency Shut Off Valves – Cast Steel, JIS/DIN, ½” to 4”, PN16/10K Rated
Description:

These Emergency Shut Off Valves are precision-engineered using cast steel and built to provide immediate and secure shutoff in critical process applications. Available in sizes ranging from ½” to 4”, they comply with international standards such as JIS and DIN, ensuring compatibility across global piping systems. The valves are designed to handle pressures of JIS 5K and 10K as well as DIN PN6 and PN16, offering robust performance in both normal and emergency conditions. Their cast steel construction delivers mechanical strength and long service life in demanding industrial environments such as oil & gas, chemicals, and utilities. These valves are manufactured in China and Korea, recognized for their quality manufacturing and metallurgy.

Specification:

– Product Type: Emergency Shut Off Valve
– Material: Cast Steel
– Size Range: ½” to 4”
– Pressure Ratings:
• JIS Ratings: 5K, 10K
• DIN Ratings: PN6, PN16
– Standards: JIS, DIN
– End Connection: Flanged (typically JIS or DIN-compatible)
– Operation Type: Manual, Pneumatic or Electro-Pneumatic (depending on system configuration)
– Design Features:
• Rapid closure mechanism
• Leak-tight sealing under pressure
• Corrosion-resistant internal components
– Surface Finish:
• Primer coated or epoxy-painted exterior for corrosion protection
– Typical Applications:
• Emergency isolation of gas, steam, or fluid pipelines
• Industrial plants, chemical processing, storage depots
– Origin: China, Korea

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Height	100 mm - 320 mm
Width	75 mm - 250 mm
Length	130 mm - 300 mm
Weight	4 kg - 45 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Failure Action	Fail-Closed
Fluid Name	Air, Steam, Water, Oil, Chemical Fluids
Full Opening Valve	No
Nominal Diameter	½” to 4”
Normal Operating Pressure	6.9 bar to 16 bar
Normal Operating Temperature	−10°C to +200°C
Piping Class	DIN PN6 / PN16
UNSPSC Code	40141600
