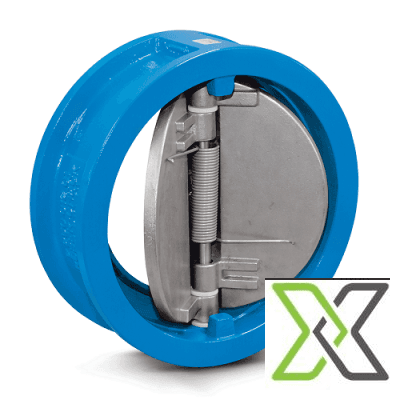

FBV Dual Plate Check Valves – ½” to 16”

ReflowX SKU: REF-1625

Product Details

Quantity

50
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

FBV Inc., USA
Equipment code

Get Quotation Whatsapp

Short Description

Compact and efficient FBV dual plate check valves, USA-made, available in ½” to 16” sizes and pressure classes 150 to 1500. Designed for non-return flow control in industrial piping systems.

Description

FBV Dual Plate Check Valves – ½” to 16”, Class 150 to 1500, USA

FBV dual plate check valves are engineered for high-performance flow control in applications requiring non-return functionality with reduced pressure drop and compact form factor. Manufactured in the USA, these valves are available in sizes from ½” to 16” and pressure ratings from Class 150 up to Class 1500. The dual plate design features two spring-loaded plates that open with forward flow and close tightly upon reverse flow, minimizing water hammer and flow disruption. Ideal for oil and gas, petrochemical, power generation, and water treatment applications, FBV check valves are built from durable materials such as carbon steel and stainless steel, with wafer or lug-type end connections to fit standard flanged piping.

Specifications:

– Manufacturer: FBV Inc., USA
– Product Type: Dual Plate Wafer Check Valve
– Size Range: ½” to 16”
– Pressure Ratings:
• Class 150
• Class 300
• Class 600
• Class 800
• Class 900
• Class 1500
– Body Material Options:
• WCB (Carbon Steel)
• CF8 / CF8M (Stainless Steel)
• Other alloys available upon request
– Disc Material:
• Stainless Steel (SS316/SS304)
• Optional Monel, Inconel, etc.
– Seat Options:
• Metal-to-metal
• Resilient seats (EPDM, Viton, NBR, etc.)
– End Connections:
• Wafer type (standard)
• Lug type (optional)
– Face-to-Face: Per API 594 or manufacturer standard
– Design Features:
• Spring-loaded dual plates for quick shutoff
• Low-pressure drop design
• Minimized water hammer effect
• Center-guided hinge pin
– Standards & Certifications:
• API 594 compliant
• API 598 tested
• ASME B16.34 design
• ISO 9001:2015 certified manufacturing

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	Dual Plate Wafer Check Valve
Manufacturer Name	FBV Inc., USA
Height	80 mm to 640 mm
Length	40 mm to 165 mm
Weight	2 kg to 180 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	ASME B16.34 compliant construction
Failure Action	Automatic closure by spring-assisted dual plates upon reverse flow
Fluid Name	Water, air, oil, gas, steam, hydrocarbons, corrosive fluids
Full Opening Valve	Not full bore
Nominal Diameter	½” to 16”
Normal Operating Pressure	19 bar to 257 bar
Normal Operating Temperature	-29°C to +425°C
Piping Class	Class 150 to 1500
UNSPSC Code	40141600
