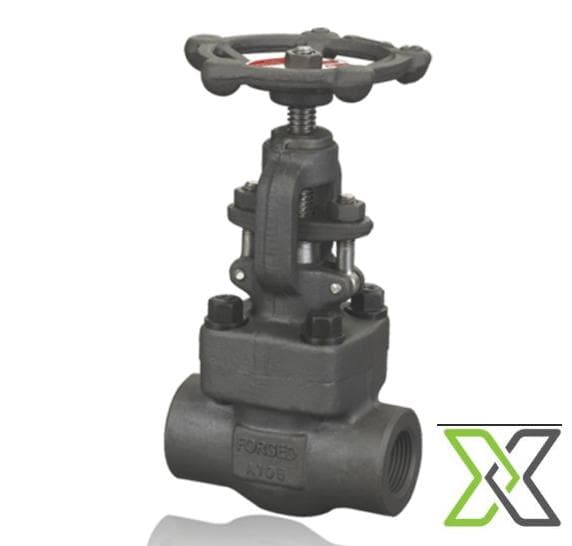

FBV Gate Valves – ½” to 24”

ReflowX SKU: REF-1804

Product Details

Quantity

50
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

FBV Inc., USA
Equipment code

Get Quotation Whatsapp

Short Description

FBV gate valves made in the USA, available in sizes ½” to 24” and pressure classes 150 to 1500. Designed for reliable shutoff in oil, gas, and industrial applications.

Description

FBV Gate Valves – ½” to 24”, Class 150 to 1500, USA

FBV gate valves are engineered for dependable isolation in a wide range of industrial applications, including oil and gas production, refining, petrochemical, and power generation. Manufactured in the USA, these valves are available in sizes from ½” to 24” and pressure ratings of Class 150, 300, 600, 800, and 1500. Constructed from forged or cast steel, FBV gate valves are offered in both full bore and reduced bore designs. They feature a rising stem, bolted bonnet, and metal-to-metal seating for long service life and tight shutoff performance. End connections include flanged, threaded (NPT), and socket weld (SW) depending on valve size and pressure class. Compliant with API and ASME standards, these valves are pressure-tested and certified for industrial-grade reliability.

Specifications:

– Manufacturer: FBV Inc., USA
– Product Type: Gate Valve
– Size Range: ½” to 24”
– Pressure Ratings:
• Class 150
• Class 300
• Class 600
• Class 800
• Class 1500
– Body Materials:
• Forged Steel: A105, F316, LF2
• Cast Steel: WCB, WC6, LCB (available on larger sizes)
– End Connections:
• NPT (Threaded)
• SW (Socket Weld)
• RF (Raised Face Flanged)
• RTJ (Ring Type Joint, optional)
– Design Features:
• Rising stem with outside screw & yoke (OS&Y)
• Bolted bonnet or pressure seal bonnet (on high-pressure models)
• Flexible or solid wedge gate
• Backseat design
• Full bore or reduced bore
• Low fugitive emission packing options
– Compliance Standards:
• API 600 / API 602 / API 603
• ASME B16.34
• API 598 (testing)
• NACE MR0175 (for sour service, optional)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	Gate Valve
Manufacturer Name	FBV Inc., USA
Height	180 mm to 2500 mm
Width	120 mm to 1100 mm
Length	108 mm to 812 mm
Weight	4 kg to 1800 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	API 600 / 602 / 603 compliant gate valve
Failure Action	Manual valves default to stay-in-place upon system loss
Fluid Name	Steam, water, oil, natural gas
Full Opening Valve	Yes – Full Bore
Nominal Diameter	½” to 24”
Normal Operating Pressure	19 bar to 257 bar
Normal Operating Temperature	-29°C to +425°C
Piping Class	ASME B16.5, B16.11, and B1.20.1
UNSPSC Code	40141600
