HART Digital Valve Positioner – IP66, 4–20 mA + HART

ReflowX SKU: REF-1924

Product Details

Quantity

100
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Fisher (a division of Emerson)
Equipment code

Get Quotation Whatsapp

Short Description

Advanced HART-enabled digital valve positioner for modulating control of pneumatic valves. IP66 rated, 4–20 mA with HART, explosion-safe T5/T6 classification, and robust industrial housing.

Description

HART Digital Valve Positioner – IP66, 4–20 mA + HART

This HART-compatible digital valve positioner—likely from the DVC6000 series or equivalent—is designed for precise control and diagnostics of pneumatic actuators in demanding process automation environments. It uses a 4–20 mA analog signal with a digital HART protocol superimposed, enabling both real-time control and remote diagnostics through a single loop.

Operating with an input voltage of 30 VDC and a current of 226 mA, this unit features a low power input of just 1.4 Watts, making it highly energy efficient. Electrical characteristics include a capacitance of 5 nF and inductance of 0.55 mH, ensuring stability and reliability across various industrial signal systems.

Encased in a rugged, IP66-rated industrial housing, this valve positioner is built to withstand dust, moisture, and high-pressure water jets, making it ideal for outdoor and harsh environments. It maintains functionality across a broad ambient temperature range from -40°C to +80°C. For hazardous area applications, it meets temperature classifications of T5 (up to 60°C ambient) and T6 (up to 75°C ambient), ensuring safety in explosive atmospheres.

With compatibility for both linear and rotary valve actuators, this unit offers versatile mounting and is an essential element in modern HART-enabled process control systems.

Specifications:

– Primary Function: Digital valve position control and diagnostics
– Product Series: Likely DVC6000 or equivalent
– Application: Modulating control of pneumatic valves
– Protocol Type: HART (Highway Addressable Remote Transducer)
– Interface: 4–20 mA analog with digital HART signal superimposed

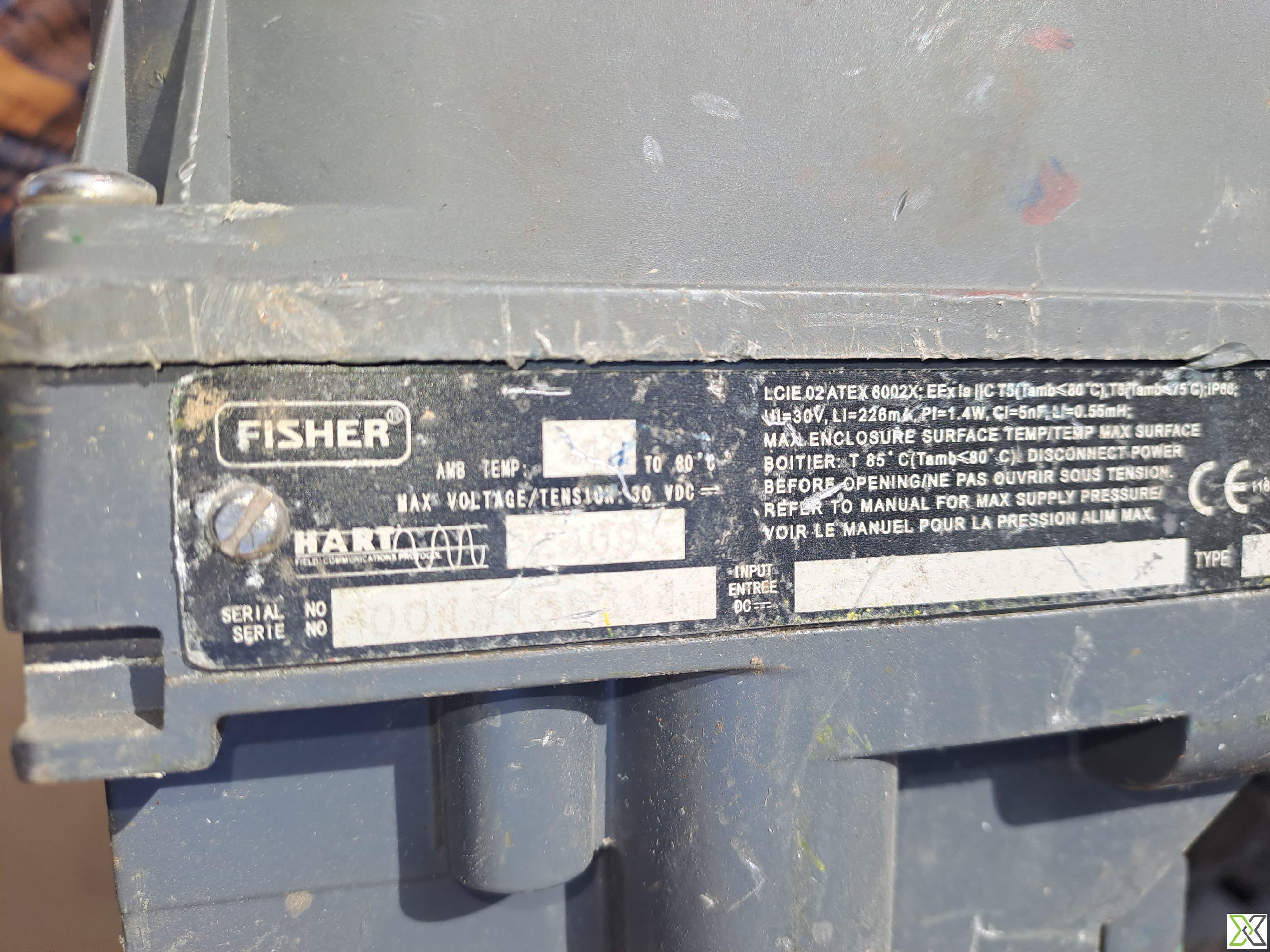

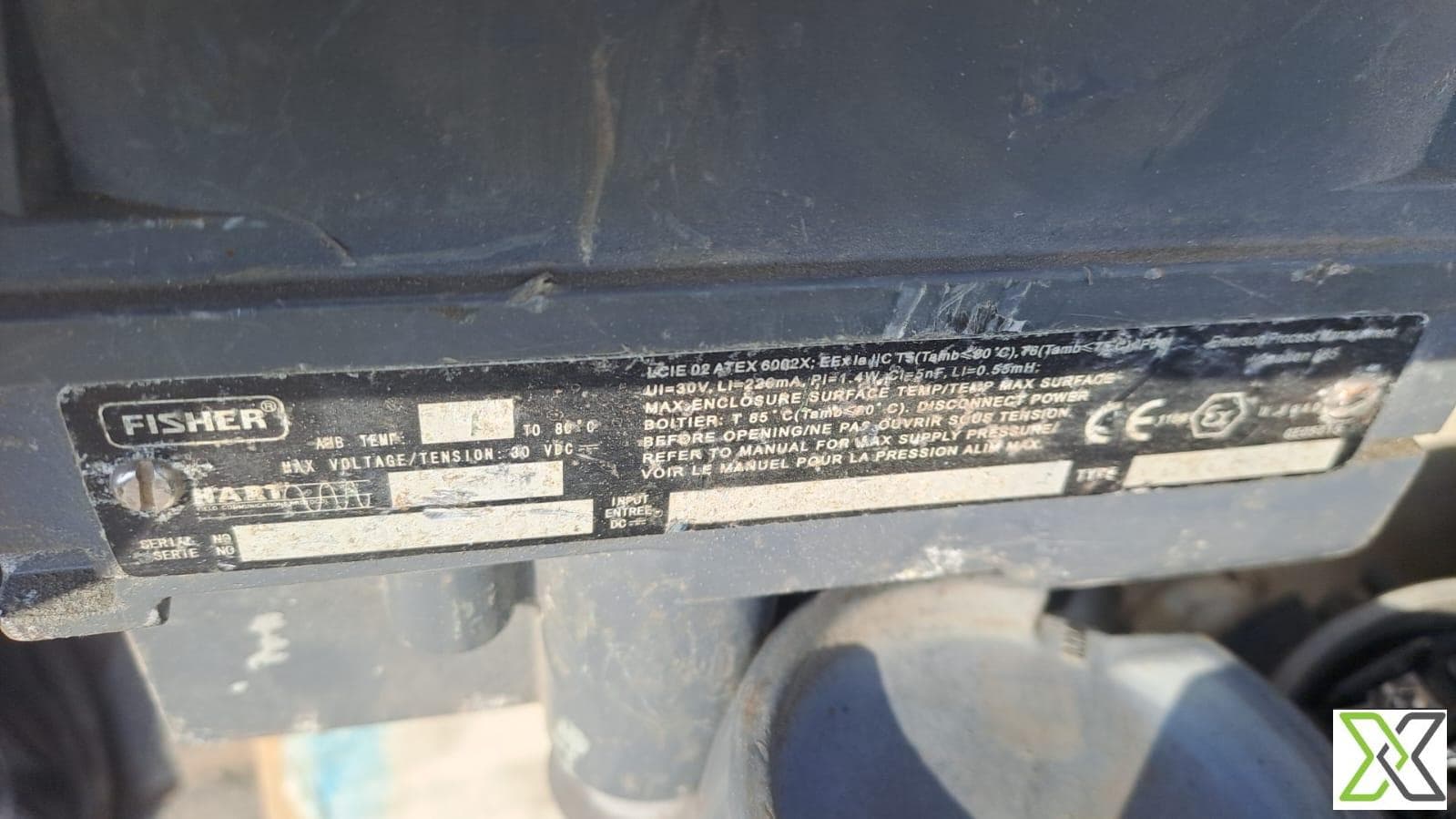

– Input Voltage (Ui): 30 VDC
– Input Current (Ii): 226 mA
– Power Input (Pi): 1.4 Watts
– Capacitance (Ci): 5 nF
– Inductance (Li): 0.55 mH
– Input Type: DC – 30 VDC
– Enclosure Rating: IP66 – Dust-tight and protected against water jets
– Enclosure Temperature Maximum: 85°C
– Ambient Temperature Range: -40°C to +80°C
– Temperature Classification:
– T5: For ambient up to 60°C
– T6: For ambient up to 75°C
– Housing: Rugged industrial-grade enclosure
– Ingress Protection: IP66

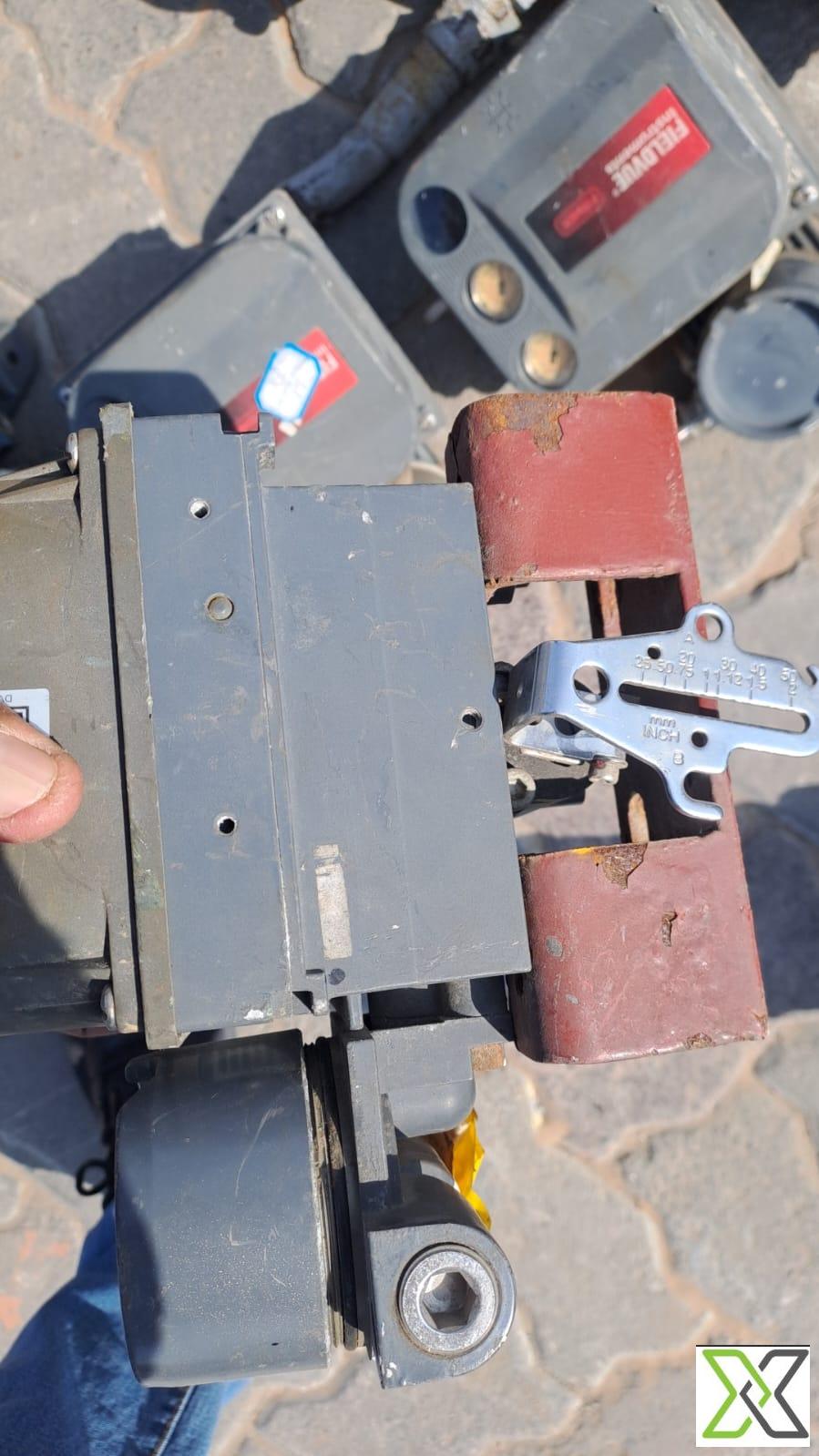

– Mounting: Suitable for standard linear or rotary valve actuators
– Quantity Available: Specify upon request
– Delivery: On request / lead time applies

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	DVC Series
Height	Approximately 7.5 inches (190 mm)
Width	Approximately 6.2 inches (157 mm)
Length	Approximately 5.5 inches (140 mm)
Weight	Approximately 3.6 kg (8 lb)
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	based digital valve controller
Full Opening Valve	full open or full closed
Nominal Diameter	½ inch to 36 inches
Normal Operating Pressure	145 psi (10 bar) maximum
Normal Operating Temperature	–40°C to +85°C
Piping Class	not have a piping class itself
UNSPSC Code	40141600
