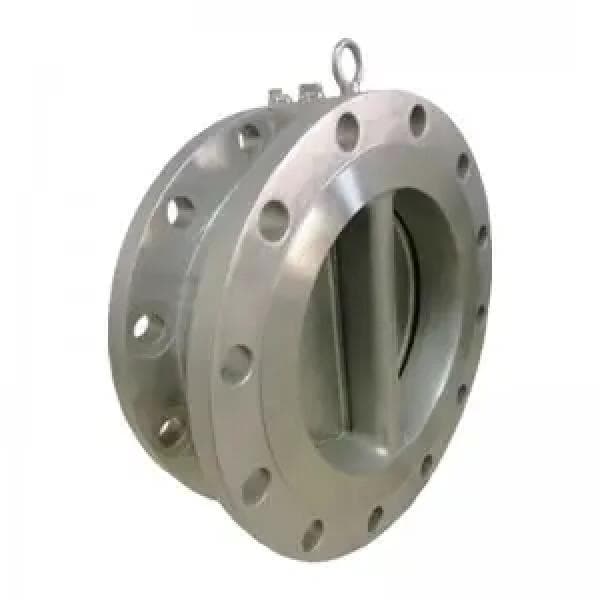

NSW Flange Wafer Check Valve – Class 150 to 2500, RF/RTJ, Spring-Loaded Disc

Product Details

Quantity

500
Availability (Lead Time)

4-6 Weeks
Product Location

China
Condition
OEM

WENZHOU NEWSWAY VALVE CO. LTD
Equipment code

Get Quotation Whatsapp

Short Description

Compact flange wafer check valve with spring-loaded disc, suitable for Class 150 to 2500 service. Available in A216 WCB, stainless steel, and special alloys. RF/RTJ ends per ASME B16.5/B16.47. API 6D and API 594 design.

Description

NSW Flange Wafer Check Valve – Class 150 to 2500, RF/RTJ, Spring-Loaded Disc

The NSW Flange Wafer Check Valve is a compact, high-performance valve designed for reliable backflow prevention in critical flow systems. Built in accordance with API 6D and API 594 standards, this wafer-style check valve features a spring-loaded disc for quick and responsive closure, minimizing water hammer and ensuring tight shutoff.

Available in a wide range of sizes from ½" to 24" (DN15–DN600) and pressure classes up to Class 2500, this valve offers reduced installation space requirements and excellent versatility across industrial applications. Constructed from robust cast materials including A216 WCB, CF8, CF8M, Alloy 20, Monel, Inconel, and Hastelloy, it is suitable for aggressive and high-pressure environments. Options for soft-seal designs enhance leak-tight performance, and the concealed pin structure eliminates external leakage paths.

Specifications:

– Valve Type: Spring-loaded flange wafer check valve
– Size Range: NPS ½″ to 24″ (DN15 to DN600)
– Pressure Class: Class 150 to Class 2500
– Body Materials: A216 WCB, WC6, WC9, A351 CF8, CF8M, CF3, CF3M, A350 LCB, A995 4A/5A/6A, Alloy 20, Monel, Inconel, Hastelloy
– Design Standards: API 6D, API 594
– Face-to-Face: API 594, ASME B16.10
– End Connections:
• Flanged Ends – ASME B16.5 / B16.47 / MSS SP-44 (NPS 22 only)
• Socket Weld – ASME B16.11
• Butt Weld – ASME B16.25
• Screwed Ends – ANSI/ASME B1.20.1
– Test & Inspection: API 598
– Fire Safe Design: API 6FA, API 607
– Additional Compliance: NACE MR-0175, MR-0103, ISO 15848
– Non-Destructive Testing: PMI, UT, RT, PT, MT
– Design Features:
• Compact wafer-style body
• Spring-loaded disc for responsive sealing
• Pin built-in design to eliminate external leakage
• Optional soft sealing available
• Fast closing with low pressure drop
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
