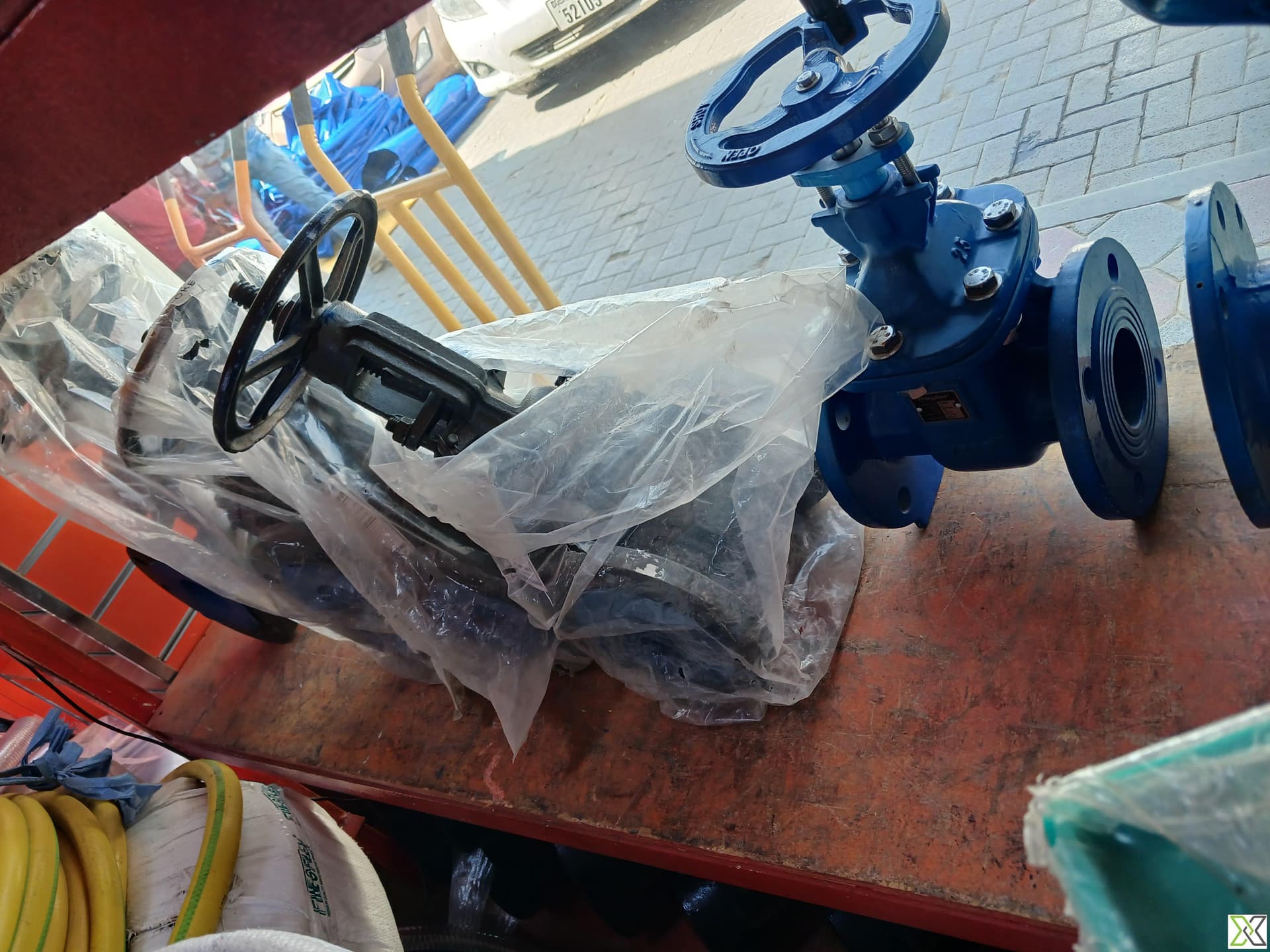

Manual Gate Valve – Flanged, Rising Stem | Cast Iron / Ductile Iron

ReflowX SKU: REF-8432

Product Details

Quantity

100
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

ReflowX
Equipment code

Get Quotation Whatsapp

Short Description

Manual gate valve with rising stem and handwheel operation, available in sizes from 3” to 8”, flanged ends, and cast or ductile iron construction. Suitable for water, oil, steam, and general industrial use.

Description

Manual Gate Valve – Flanged, Rising Stem | Cast Iron / Ductile Iron

This manual gate valve is designed for effective isolation in industrial and utility piping systems. Featuring a rising stem design with handwheel operation, it offers clear visual indication of valve position and robust sealing. The valve is available in flanged configurations according to ANSI B16.1 Class 125 or EN 1092-2 PN16 standards, making it compatible with a wide range of international systems. Body construction is offered in cast iron or ductile iron, with optional metal or resilient seating depending on the application. It is well-suited for regulating water, oil, steam, and other non-corrosive fluids in industrial environments. The bolted bonnet design ensures structural integrity and ease of maintenance. This gate valve is supplied brand new and ready for integration into your pipeline.

Specifications:

– Valve Type: Manual Gate Valve
– Operation: Handwheel, Rising Stem
– Sizes Available: 3” (DN80), 4” (DN100), 6” (DN150), 8” (DN200)
– Body Type: Flanged
– Material: Cast Iron or Ductile Iron
– End Connection: ANSI B16.1 Class 125 / EN 1092-2 PN16
– Stem Type: Rising Stem
– Bonnet Type: Bolted
– Seat Type: Metal or Resilient Seat (varies by model)
– Application: Suitable for water, oil, steam, and general industrial services
– Condition: New
– Rising stem design provides external visual indication of valve status
– Resilient seat models offer enhanced sealing for water and low-pressure service
– Durable handwheel and stem construction ensures long service life
– Available with optional epoxy coating for corrosion resistance

For further specifications or to inquire about this equipment and ReflowX's logistics services, please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Weight	18 kg - 85 kg
Color	Blue
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Failure Action	Manual fail-in-position
Fluid Name	Water, Oil, Air, Steam
Full Opening Valve	Yes
Nominal Diameter	DN80 to DN200 (3” to 8”)
Normal Operating Pressure	PN16 / ANSI 125/150 Class
Normal Operating Temperature	-10°C to +120°C
Piping Class	PN16 / Class 150 flange drilling
UNSPSC Code	40141600
