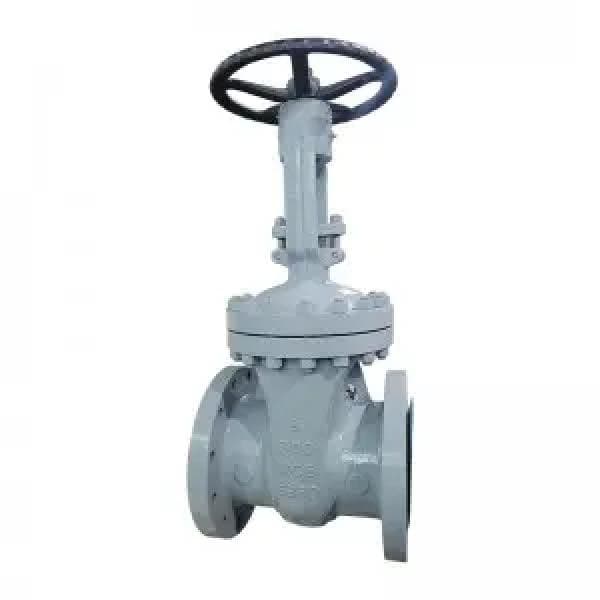

NSW Flanged Gate Valve – Class 150 to 2500, WCB Body, OS&Y, RF/RTJ Ends

ReflowX SKU: REF-0090

Product Details

Quantity

500
Availability (Lead Time)

4-6 Weeks
Product Location

China
Condition
OEM

WENZHOU NEWSWAY VALVE CO. LTD
Equipment code

Get Quotation Whatsapp

Short Description

Industrial flanged gate valve available in sizes 2″ to 60″, pressure class 150–2500, with bolted or pressure seal bonnet. Constructed from WCB, CF8M, or specialty alloys. OS&Y design with rising stem and RF/RTJ/BW connections.

Description

NSW Flanged Gate Valve – Class 150 to 2500, WCB Body, OS&Y, RF/RTJ Ends

The NSW Flanged Gate Valve is a robust, high-integrity shut-off valve suitable for heavy-duty applications in oil & gas, petrochemical, power, and general industrial systems. Designed and manufactured in compliance with API 600, API 6D, and ISO 10434, this gate valve is engineered to perform under pressure with long service life and dependable sealing. Available in pressure classes from 150 to 2500 and sizes ranging from 2″ to 60″, it features a flange connection for stable sealing and easy installation.

The valve body is available in a wide range of cast materials including A216 WCB, CF8M, Monel, Inconel, and other corrosion-resistant alloys. Its Outside Screw and Yoke (OS&Y) rising stem design allows for clear position indication and straightforward manual or automated operation. The valve supports both flexible and solid wedge configurations with renewable seat rings. Bonnet options include bolted or pressure-seal designs for enhanced pressure containment.

Designed for minimal flow resistance and maximum reliability, the NSW flanged gate valve is fire-safe, NACE compliant, and fully tested per API 598 standards. It is ideal for both isolation and critical flow control applications in high-pressure, high-temperature, or corrosive environments.

Specifications:

– Valve Type: Flanged Gate Valve
– Size Range: NPS 2″ to 60″
– Pressure Class: Class 150, 300, 600, 900, 1500, 2500
– Body Materials (Casting): A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A/5A, A352 LCB, LCC, LC2, Monel, Inconel, Hastelloy, UB6
– Bore Type: Full Bore or Reduced Bore
– Bonnet Type: Bolted Bonnet or Pressure Seal Bonnet
– Disc/Wedge: Flexible Wedge or Solid Wedge
– Stem Type: Rising Stem (OS&Y) or Non-Rising Stem
– Seat Rings: Renewable
– End Connections:
• Flanged (RF, FF, RTJ) – ASME B16.5 / B16.47 / MSS SP-44
• Butt Weld Ends – ASME B16.25
• Socket Weld Ends – ASME B16.11
– Face-to-Face: ASME B16.10
– Design Standards: API 600, API 603, API 6D, ISO 10434
– Test & Inspection: API 598
– Fire Safe Design: API 6FA, API 607
– Optional Compliance: NACE MR-0175, MR-0103, ISO 15848
– Non-Destructive Testing: PMI, UT, RT, PT, MT
– Operating Temperature Range: -29°C to +425°C (depending on material)
– Drive Options: Manual, Worm Gear, Electric, Pneumatic, Hydraulic
– Applications: Oil & gas pipelines, LNG terminals, chemical plants, power plants, refinery isolation systems
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
