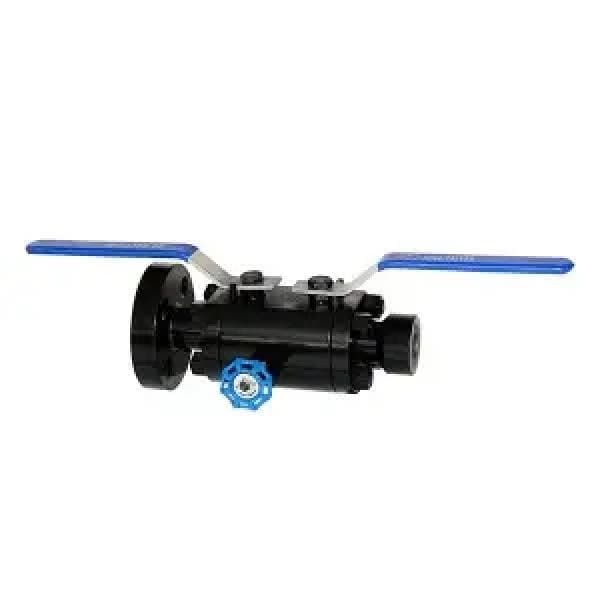

NSW Flanged x NPT Double Block and Bleed Ball Valve – Class 150 to 2500

Product Details

Quantity

500
Availability (Lead Time)

4-6 Weeks
Product Location

China
Condition
OEM

WENZHOU NEWSWAY VALVE CO. LTD
Equipment code

Get Quotation Whatsapp

Short Description

Double block and bleed ball valve with Flanged x NPT or SW x RF ends, reduced bore design, forged steel construction, and floating ball. Fire-safe, anti-static, and blowout-proof stem. Available in Class 150 to 2500 pressure ratings.

Description

NSW Flanged x NPT Double Block and Bleed Ball Valve – Class 150 to 2500

The NSW Flanged x NPT Double Block and Bleed (DBB) Ball Valve is engineered for high-integrity isolation in critical industrial piping systems. Designed in accordance with API 6D and ASME B16.34, this compact valve combines reduced bore construction with flange and threaded (NPT) or socket weld (SW) end connections, offering versatile integration options in process systems.

Constructed from forged materials such as A105, F304, F316, and LF2, the valve features a one-piece forged body for added strength and integrity. It includes dual floating balls and seats, a central needle valve for bleeding, and a drain port located at the bottom of the body to ensure complete pressure release between the two sealing surfaces. This double isolation and bleed design enhances system safety, facilitates in-line testing, and minimizes potential leakage.

The blow-out proof stem, anti-static device, and fire-safe construction per API 6FA/6FA ensure reliable performance under demanding conditions. Ideal for use in oil and gas, petrochemical, chemical, and utility systems requiring high performance in limited space.

Specifications:

– Valve Type: Double Block and Bleed (DBB) Ball Valve
– Operation: Lever or gear operated (manual)
– Size Range: NPS 2″ to 8″
– Pressure Class: Class 150, 300, 600, 900, 1500, 2500
– Bore Type: Reduced Bore
– Body Material (Forged): A105, A182 F304/F304L, F316/F316L, F51, F53, A350 LF2/LF3/LF5
– Design Standard: API 6D / ASME B16.34
– Face-to-Face: NSW Factory Standard
– End Connections:
• Flanged End: RF or RTJ to ASME B16.5
• Threaded End: NPT to ASME B1.20.1
• Optional: Socket Weld to ASME B16.11
– Ball Type: Floating Ball
– Stem Design: Blow-out Proof
– Fire Safe Certification: API 6FA, API 607
– Testing Standard: API 598
– Optional Compliance: NACE MR-0175 / MR-0103, ISO 15848
– Non-Destructive Testing: PMI, UT, RT, PT, MT
– Drain Valve: Integrated at bottom of body
– Structure Options: One-piece, two-piece, or three-piece forged body
– Applications: Process piping, oil and gas, chemical service, high-pressure isolation, instrumentation interface
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
