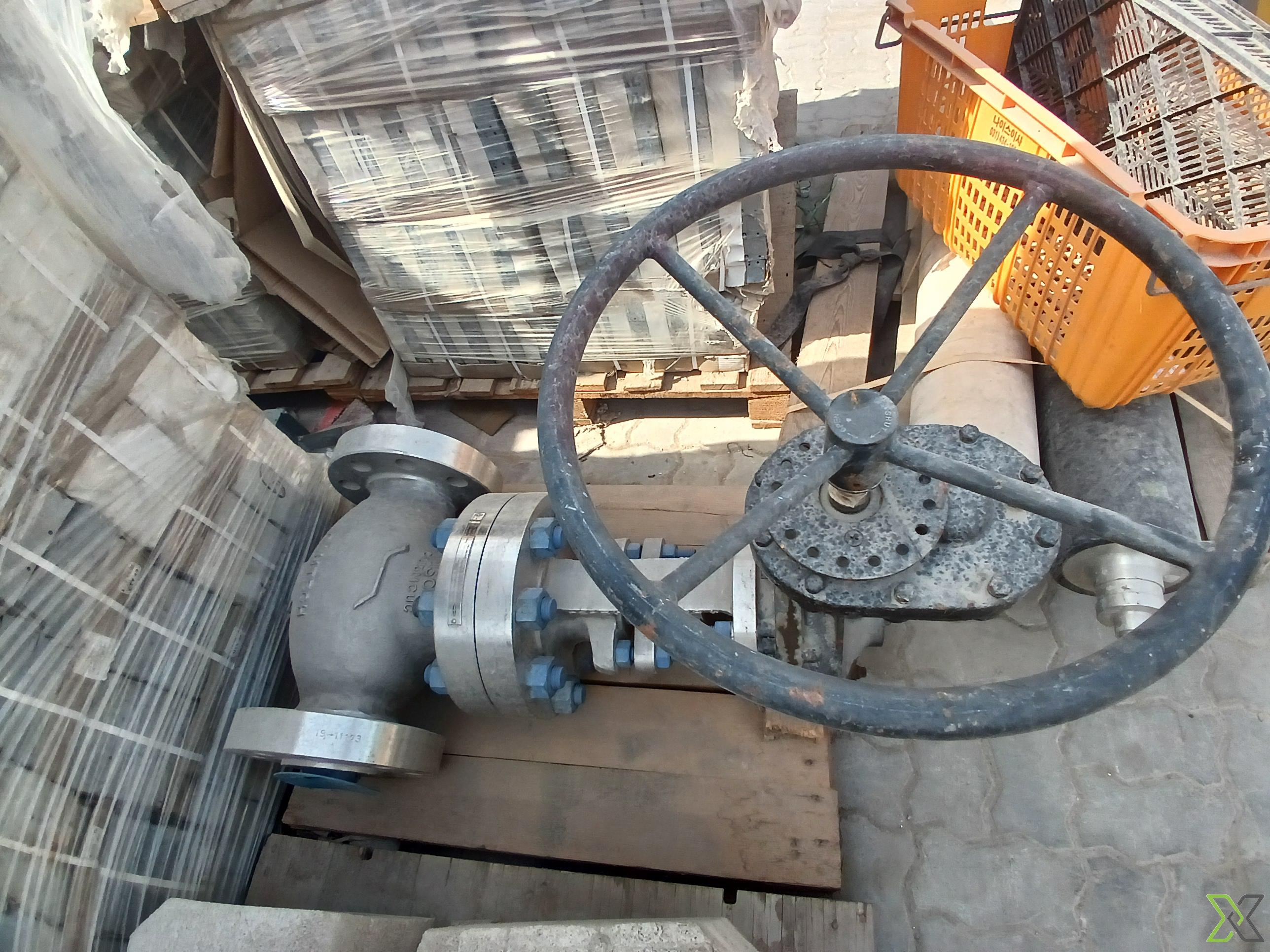

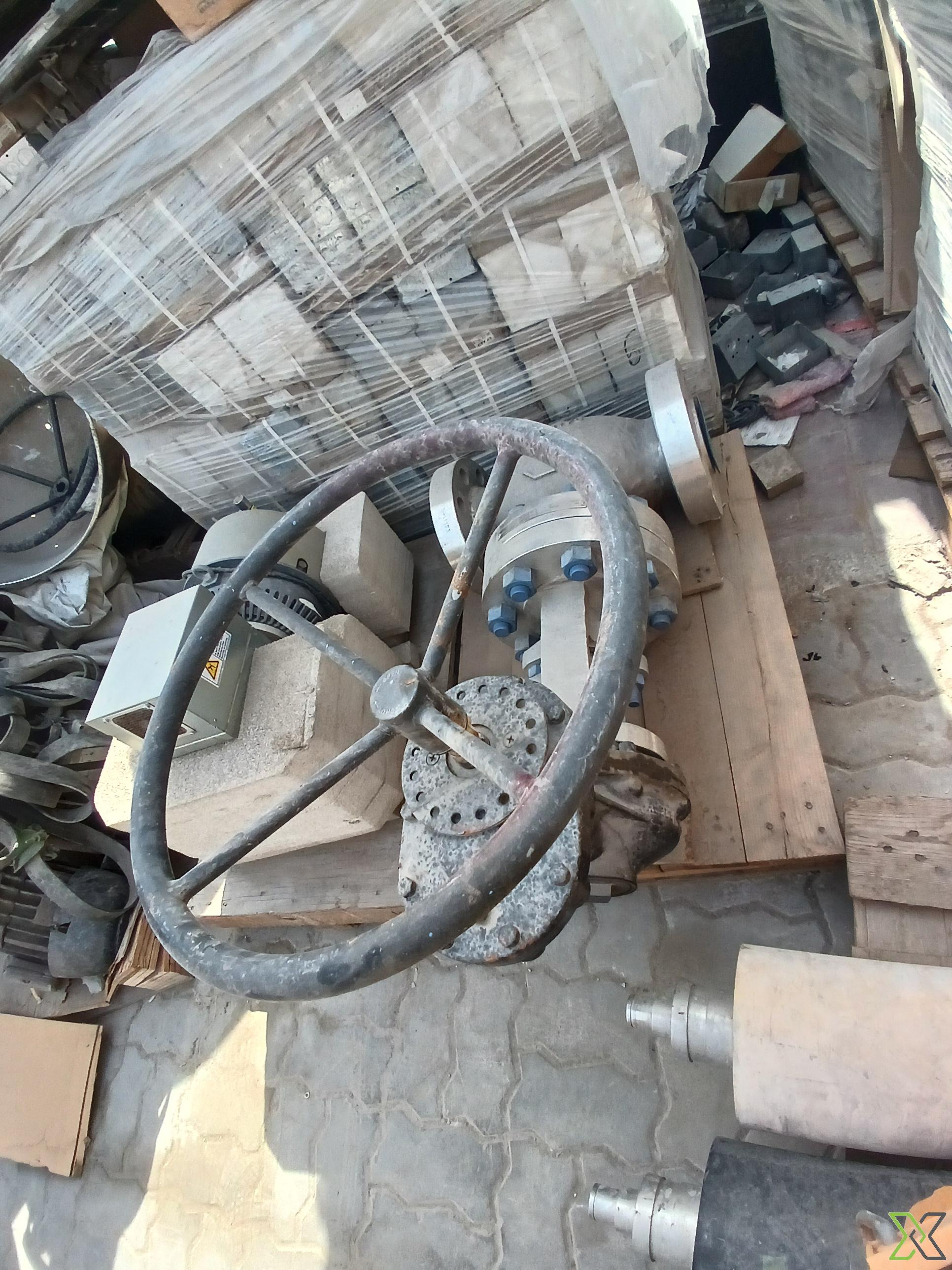

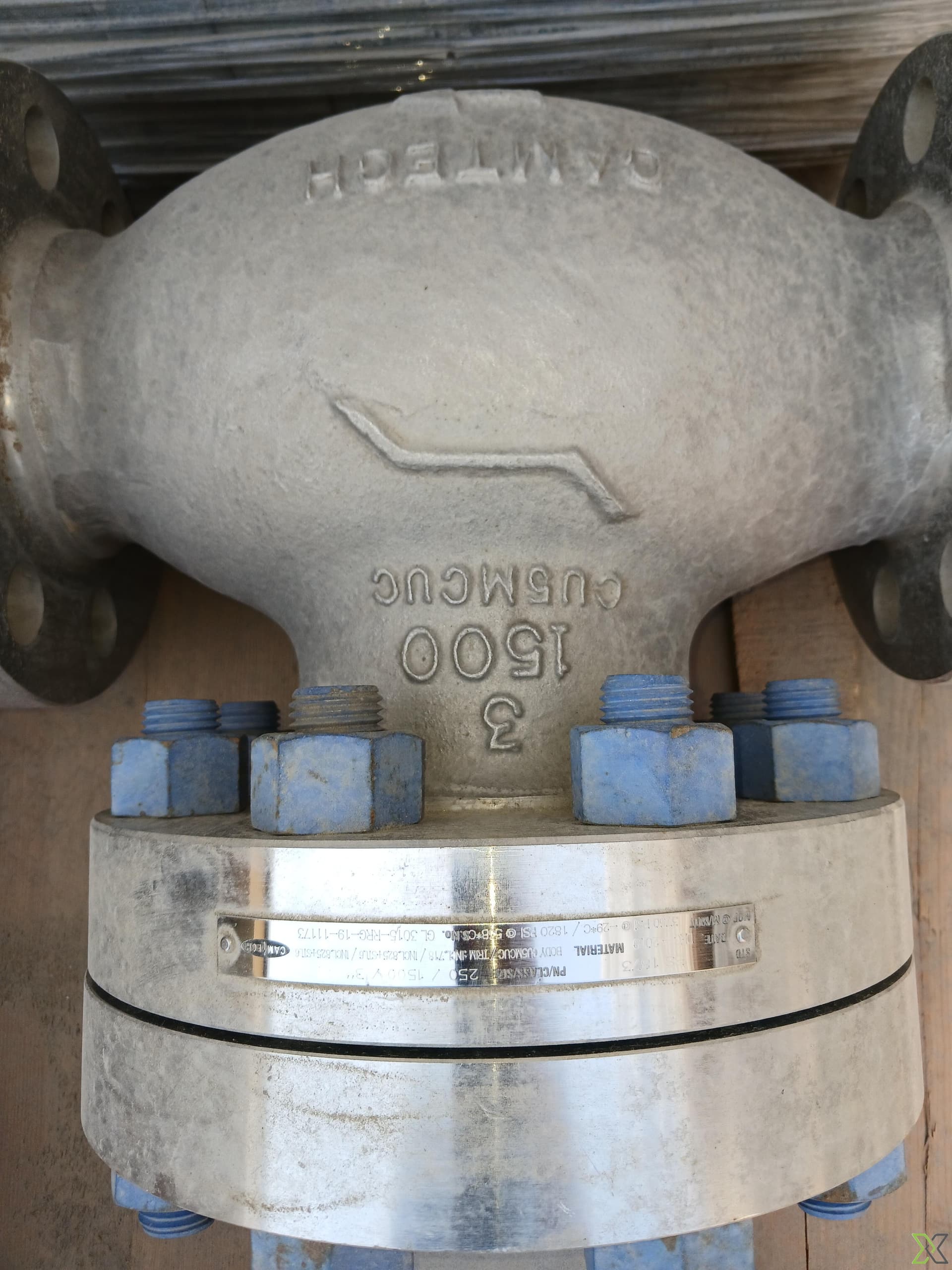

CAMTECH Gate Valve GL-3015-RRG-19-1173 – 3", Class 1500

ReflowX SKU: REF-407

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

CAMTECH
Equipment code

Get Quotation Whatsapp

Short Description

High-pressure 3-inch CAMTECH gate valve, Class 1500, with CF8M stainless steel body and Trim #8, compliant with API 600 and ASME standards. Flanged RF ends, suitable for severe service conditions.

Description

CAMTECH Gate Valve GL-3015-RRG-19-1173 – 3", Class 1500

The CAMTECH GL-3015-RRG-19-1173 is a high-integrity 3-inch gate valve engineered for critical flow isolation in high-pressure piping systems. Designed and manufactured in compliance with API 600, ASME B16.34, and BS 1873, this valve meets global standards for pressure-containing equipment and dimensional consistency.

This Class 1500 valve is constructed from ASTM A351 Gr. CF8M (equivalent to stainless steel 316), offering superior corrosion resistance in aggressive media. It features Trim #8, providing hardened stainless steel seating surfaces for extended life and leak-tight performance in demanding services.

The end connections conform to ASME B16.5 Raised Face (RF) flange standards, while the face-to-face dimensions are according to ASME B16.10, ensuring interchangeability and easy pipeline integration.

With a pressure rating of 3750 PSI at room temperature and 1820 PSI at -29°C, this valve is suitable for extreme environments such as oil & gas, refining, and petrochemical plants. The valve is likely manufactured in 2019 based on serial number conventions.

Specifications:

– Model/Tag: GL-3015-RRG-19-1173
– Valve Type: Gate Valve
– Manufacturer: CAMTECH
– Size: 3" (Inch)
– Pressure Class: ANSI Class 1500
– Body Material: ASTM A351 Gr. CF8M (equivalent to SS316)
– Trim: Trim #8 (Stainless steel hard-faced trim)
– Design Standards: API 600 / ASME B16.34 / BS 1873
– Face-to-Face: ASME B16.10
– End Connection: ASME B16.5 Raised Face (RF) Flange
– Pressure Rating:
• 3750 PSI @ Room Temperature
• 1820 PSI @ -29°C

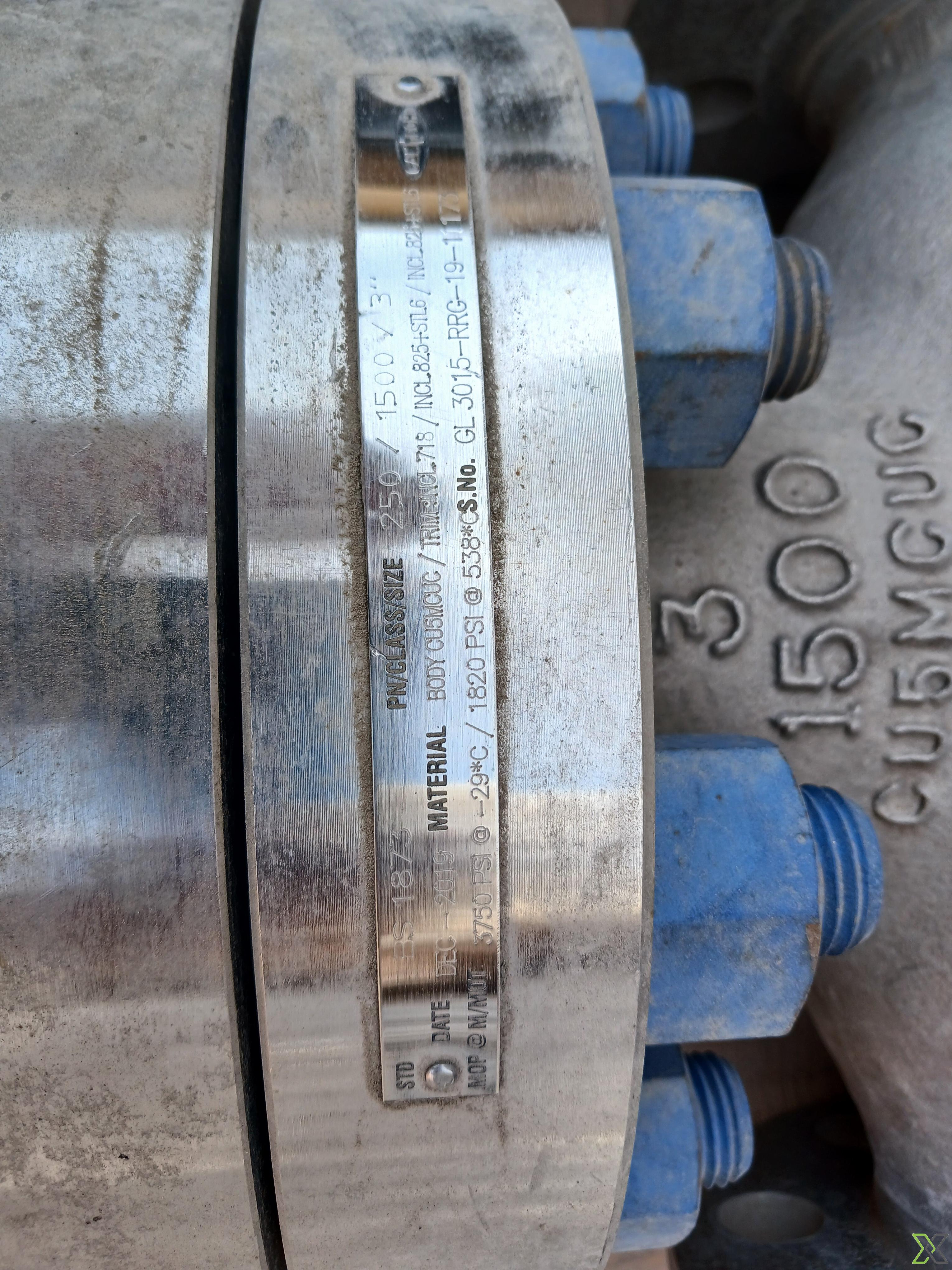

– Serial Number: GL-3015-RRG-19-1173
– Year of Manufacture: Likely 2019
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	GL-3015-RRG-19-1173
Height	~600–800 mm
Width	~200–300 mm
Length	~356 mm
Weight	~50–70 kg
Color	Gray
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	Typically ASTM A216 Gr. WCB (Carbon Steel)
Failure Action	valve remains in its last position until manually operated
Full Opening Valve	Yes
Nominal Diameter	3 inches (DN 80)
Normal Operating Pressure	Up to 740 psi
Normal Operating Temperature	-29°C to 425°C
Piping Class	ASME Class 300
UNSPSC Code	40141600
