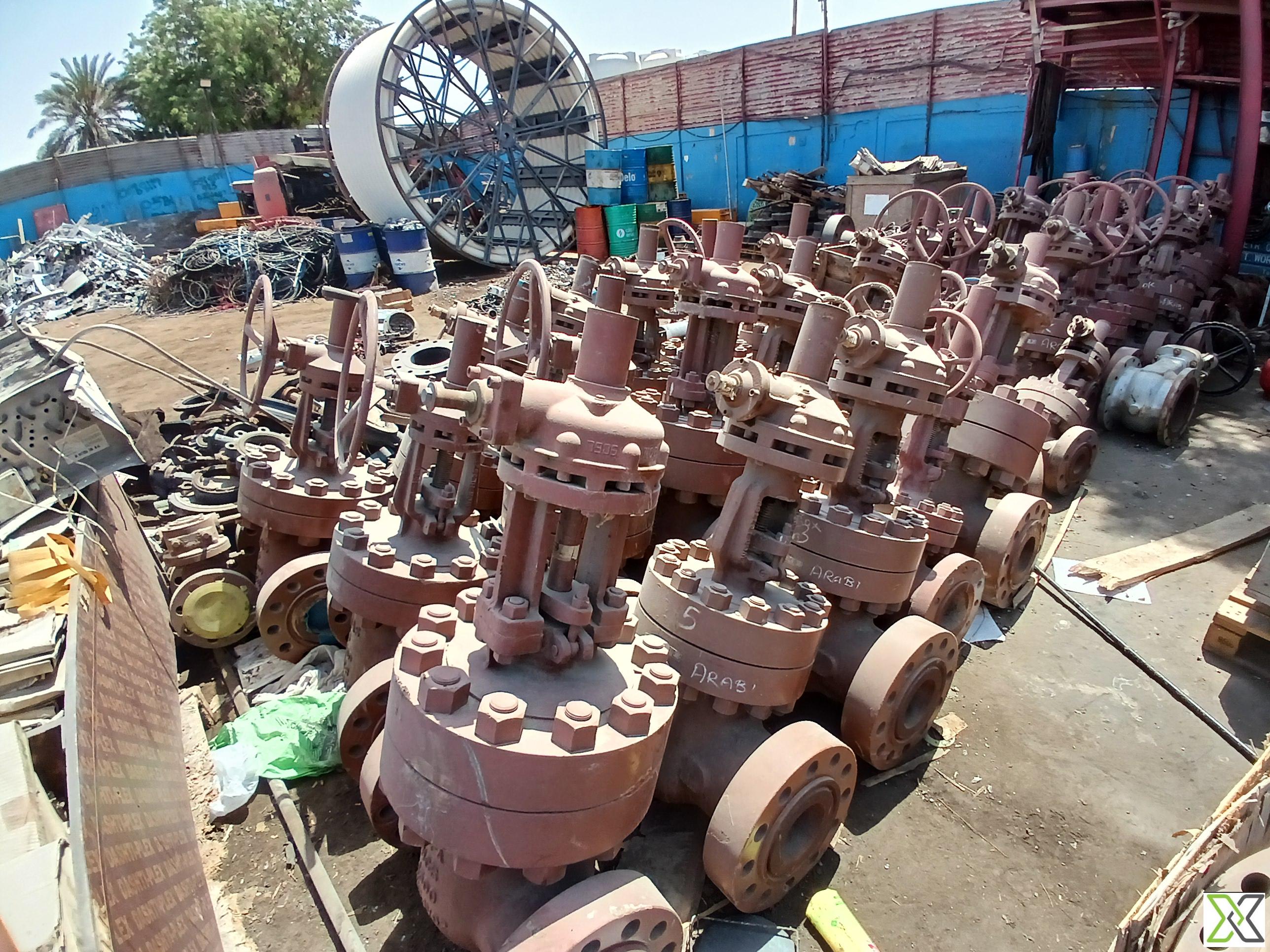

6" Class 1500 Gate Valve – Full Port, WCB Body, Rising Stem, Flanged Ends

ReflowX SKU: REF-3033

Product Details

Quantity

14
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

SUFA
Equipment code

Get Quotation Whatsapp

Short Description

Heavy-duty 6-inch full bore gate valve rated for ANSI 1500 class pressure, featuring WCB cast carbon steel body, bolted bonnet, rising stem OS&Y, and graphite packing, designed for high-pressure steam, oil, and gas applications.

Description

6" Class 1500 Gate Valve – Full Port, WCB Body, Rising Stem, Flanged Ends

This 6" (DN150) high-pressure gate valve is a full port, rising stem design engineered for demanding industrial applications. Constructed from ASTM A216 Grade WCB cast carbon steel, the valve features a bolted bonnet, renewable metal-to-metal seat, and a rising stem with outside screw and yoke (OS&Y) configuration. It offers a tight shutoff performance with Class VI leakage rating and conforms to major standards including API 598, API 607 fire-safe, and ASME B16.5 for flanged ends. With a Class 1500 rating (maximum 2,550 PSI at 100°F), the valve is suitable for a wide range of high-temperature and high-pressure media such as steam, natural gas, crude oil, and hydrocarbons. The valve is fire-safe, pressure tested, and compatible with ANSI B31.3 / B31.1 piping systems.

Specifications:

– Valve Type: Gate Valve (Full Port, Rising Stem)
– Nominal Size: 6" (DN150)
– Pressure Class: ANSI Class 1500 – Max 2,550 PSI @ 100°F (176 bar @ 38°C)

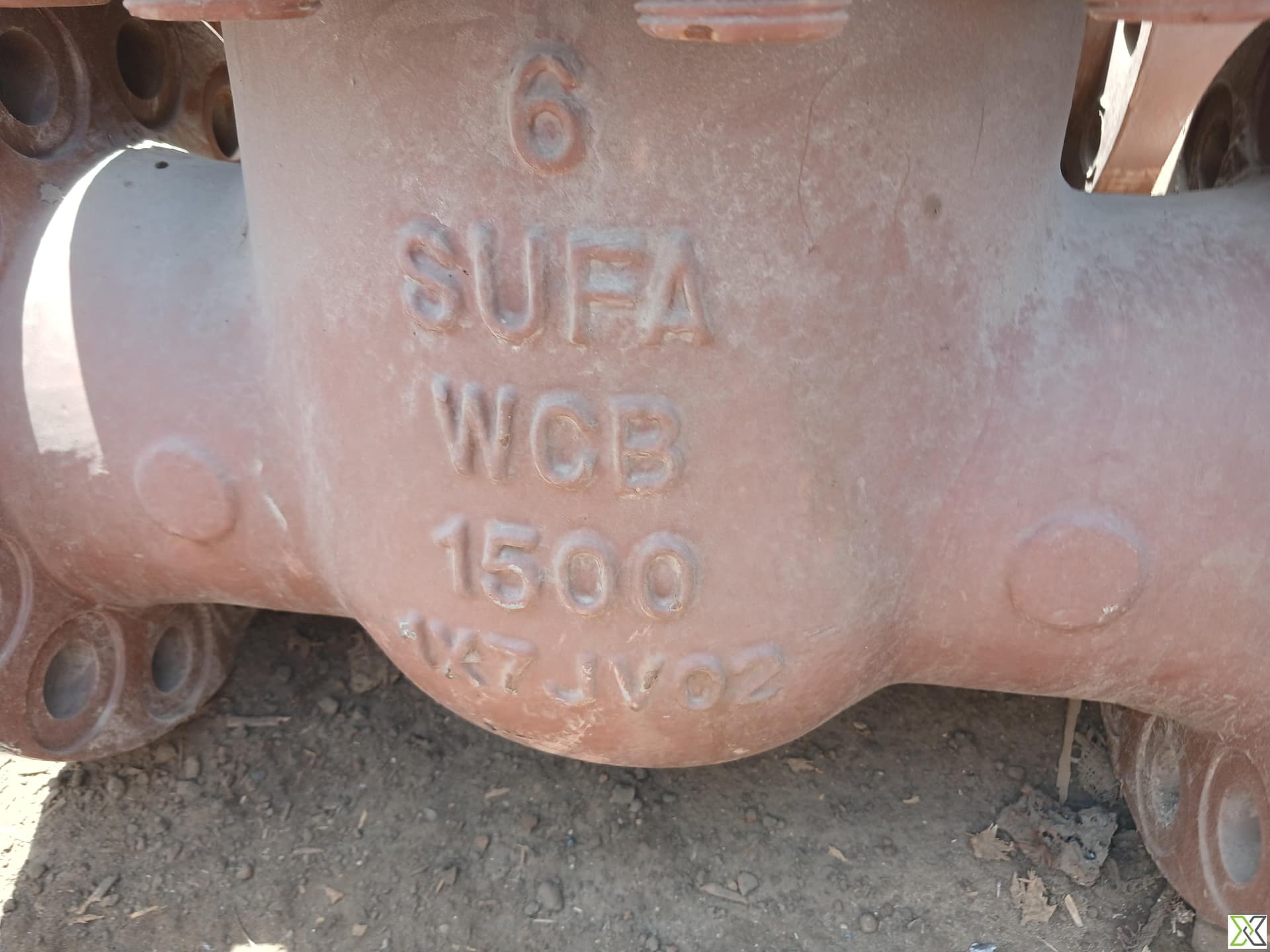

– Body Material: ASTM A216 Grade WCB (Cast Carbon Steel)
– Bonnet Type: Bolted Bonnet (Pressure-Seal Option Available)
– Trim: Trim No. 8 (13Cr/13Cr) or as specified
– End Connections: Flanged Ends – ASME B16.5 RF or RTJ
– Face-to-Face Dimension: Per ASME B16.10
– Seat Type: Renewable, Metal-to-Metal Seal
– Stem Type: Rising Stem, Outside Screw and Yoke (OS&Y)
– Packing: Graphite Rings with Lantern Ring – API 622 Compliant
– Gland: Two-Piece Gland Flange for Compression Adjustability
– Handwheel: Cast Steel Gear Handwheel or Bevel Gearbox
– Leakage Class: ANSI/FCI 70-2 Class VI
– Fire Safe Design: Certified to API 607 / ISO 10497
– Design Standards: API 600 / API 598 / ASME B16.34 / B16.5 / B16.10
– Operating Pressure: 1,500 PSI
– Operating Temperature Range: -29°C to +425°C (-20°F to +797°F)
– Flow Characteristic: On/Off – Minimal Flow Resistance
– Failure Action: Manual (Stays in last position unless actuator fails – optional)
– Full Opening Valve: Yes – Full Bore
– Piping Class Compatibility: ANSI B31.3 / B31.1
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Height	1,300 mm
Width	850 mm
Length	559 mm
Weight	280
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	API 600 / ASME B16.34 / BS 1414
Failure Action	last set position upon system failure
Fluid Name	Steam, Natural Gas, Crude Oil, Hydrocarbon Liquids, Condensate, and High-Pressure Water.
Full Opening Valve	Yes
Nominal Diameter	6” (Inch) / DN150 (150 mm)
Normal Operating Pressure	1500 psi (Class 1500)
Normal Operating Temperature	Up to 400°C (752°F)
Piping Class	ASME B31.3 / ASME B31.1
UNSPSC Code	40141600
