Ghibellini 12” 150# Ball Valve with Gasequip Pneumatic Actuator – Model TS13

ReflowX SKU: REF-8261

Product Details

Quantity

2
Availability (Lead Time)

2-4 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Ghibellini (UK)
Equipment code

Get Quotation Whatsapp

Short Description

Heavy-duty 12” ANSI 150# ball valve by Ghibellini, fitted with a high-performance pneumatic actuator from Gasequip B.V. Ideal for low-pressure process systems, tested to 225 PSI.

Description

Ghibellini 12” 150# Ball Valve with Gasequip Pneumatic Actuator – Model TS13

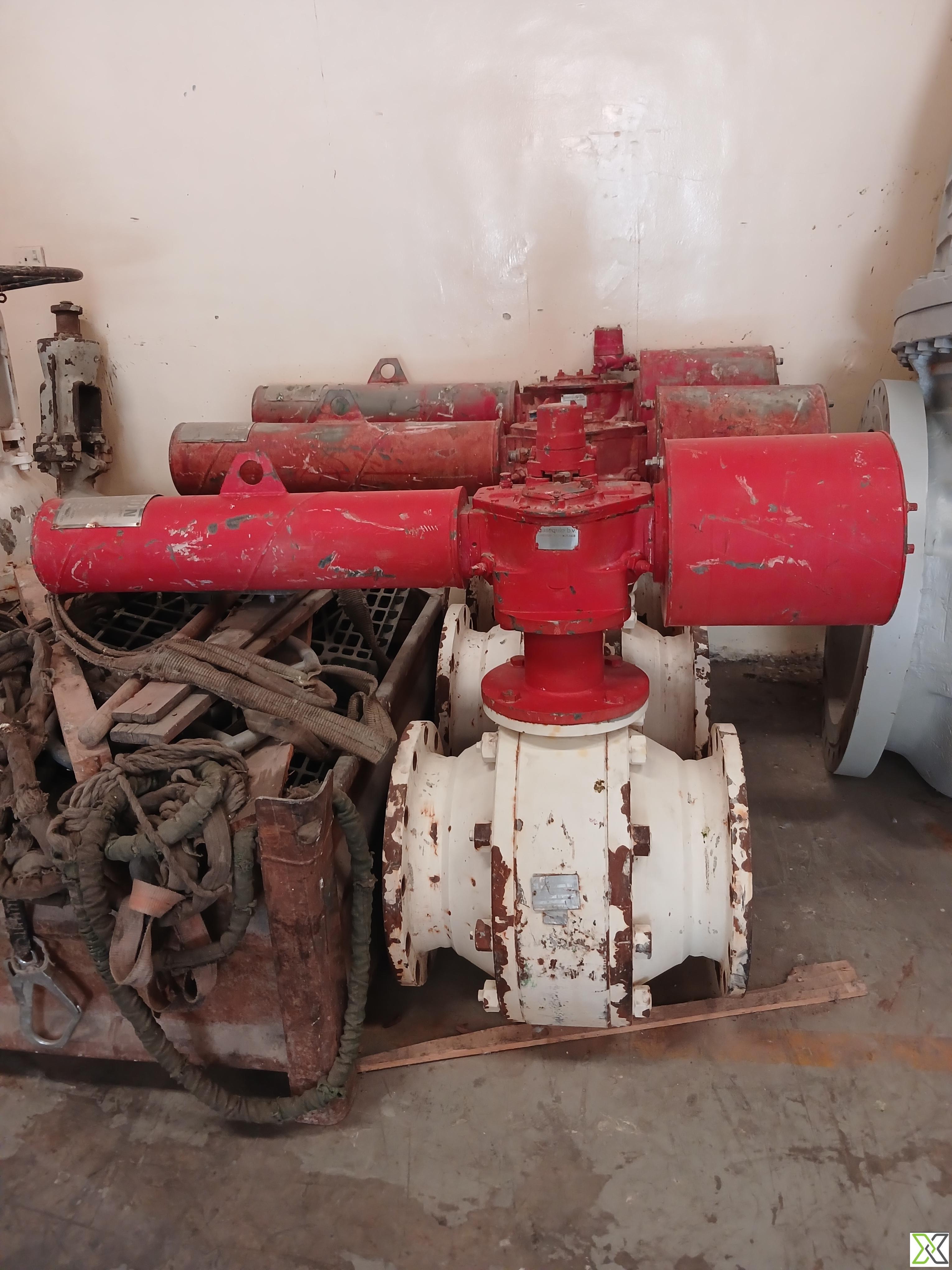

The Ghibellini 12” ANSI 150# Ball Valve with Gasequip pneumatic actuator is designed for industrial applications requiring large bore flow control at moderate pressures. Manufactured by Ghibellini (UK), the TS13 valve model offers robust flow shutoff and minimal pressure drop. The valve is fitted with a precision-engineered pneumatic actuator from Gasequip B.V., Netherlands, tagged as 71-UZ-003/3, designed for remote or automated control. The valve and actuator combination ensures reliable performance in demanding fluid handling operations. The valve body is coated white for corrosion resistance, while the actuator is distinguished by its durable red finish.

Specifications:

– Valve Model: TS13
– Valve Manufacturer: Ghibellini (UK)

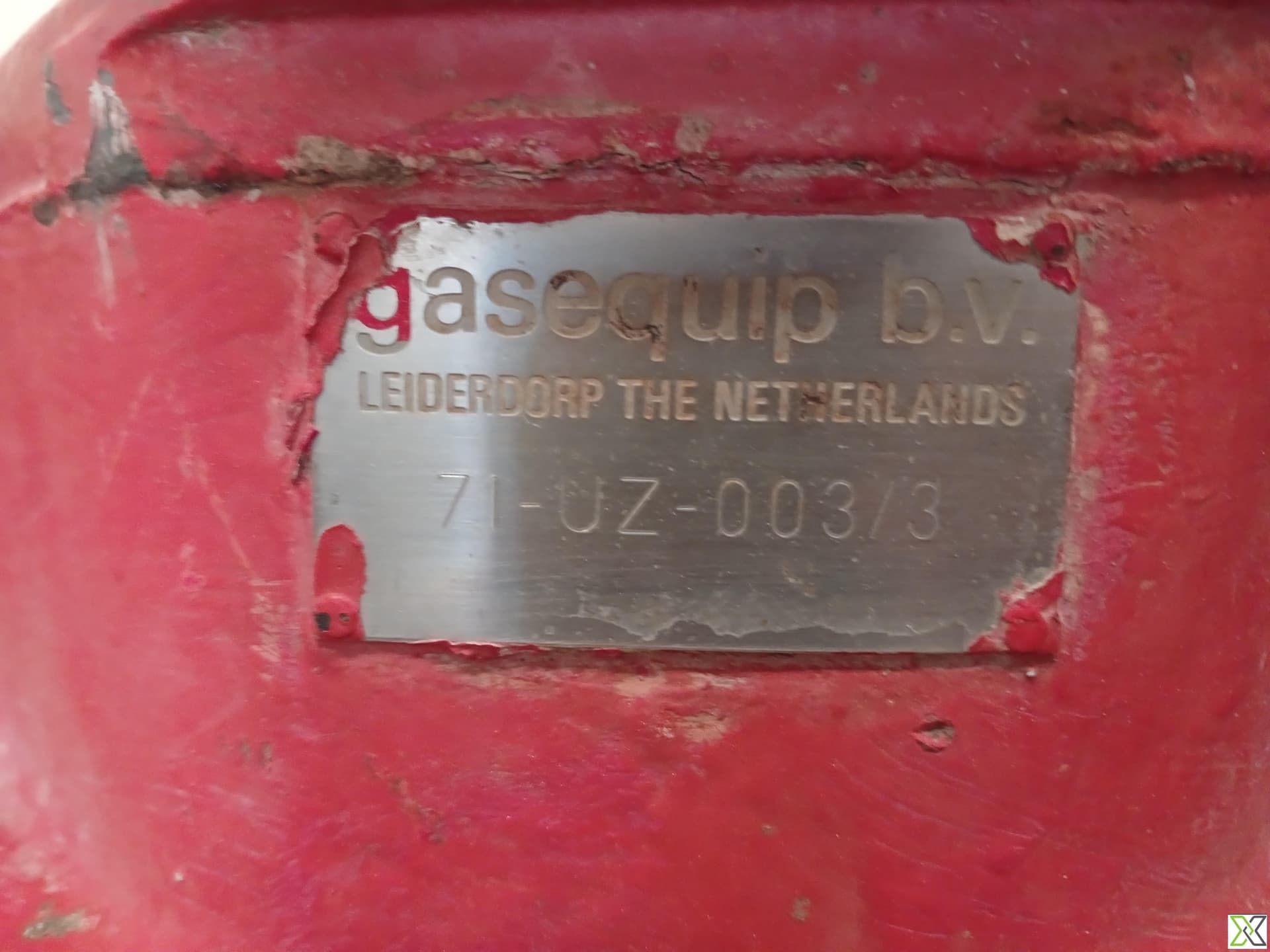

– Actuator Manufacturer: Gasequip B.V., Leiderdorp, Netherlands
– Actuator Tag: 71-UZ-003/3
– Valve Type: Ball Valve
– Valve Size: 12 Inch (DN 300)
– Pressure Rating: ANSI 150#
– Max Operating Pressure: 185 PSI (12.75 bar)
– Max Test Pressure: 225 PSI (15.5 bar)
– End Connections: Flanged (ANSI B16.5 – assumed for 150# class)
– Body Material: Carbon Steel (assumed – not explicitly listed)
– Seat and Ball Material: Not specified (typically stainless steel or equivalent)
– Design Standard: ANSI / ASME B16.34 (pressure class 150)
– Control Type: Pneumatic Actuated
– Flow Direction: Bi-directional
– Body Color: Red
– Actuator Color: Red
– Operation Type: Remote (pneumatic)
– Explosion Protection: Not specified (check actuator certs if used in ATEX zone)
– Country of Origin (Valve): United Kingdom
– Country of Origin (Actuator): Netherlands
– Condition: Used
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	TS13
Manufacturer Name	Ghibellini (UK)
Height	373 mm
Width	406 mm
Length	610 mm
Weight	705 kg
Color	Red
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Failure Action	Safe position
Fluid Name	Water, oil, gas, steam, chemicals
Full Opening Valve	Yes
Nominal Diameter	12″ (DN 300)
Normal Operating Pressure	19.6 bar
Normal Operating Temperature	−29 °C to +180 °C
Piping Class	ANSI B16.5 Class 150 RF
UNSPSC Code	40141600
