IMI ORTON MV DN200MM Automated Butterfly Valve – CF8M Body, Stellite Seat, with Fisher DVC6200 & Solenoid Valve

ReflowX SKU: REF-5943

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

ReflowX
Equipment code

Get Quotation Whatsapp

Short Description

High-performance ON/OFF automated butterfly valve assembly by IMI ORTON (Italy), featuring a CF8M stainless steel body, Stellite GR.21 seat, and integrated Fisher DVC6200 digital positioner and solenoid valve, suitable for gas service at extreme temperatures.

Description

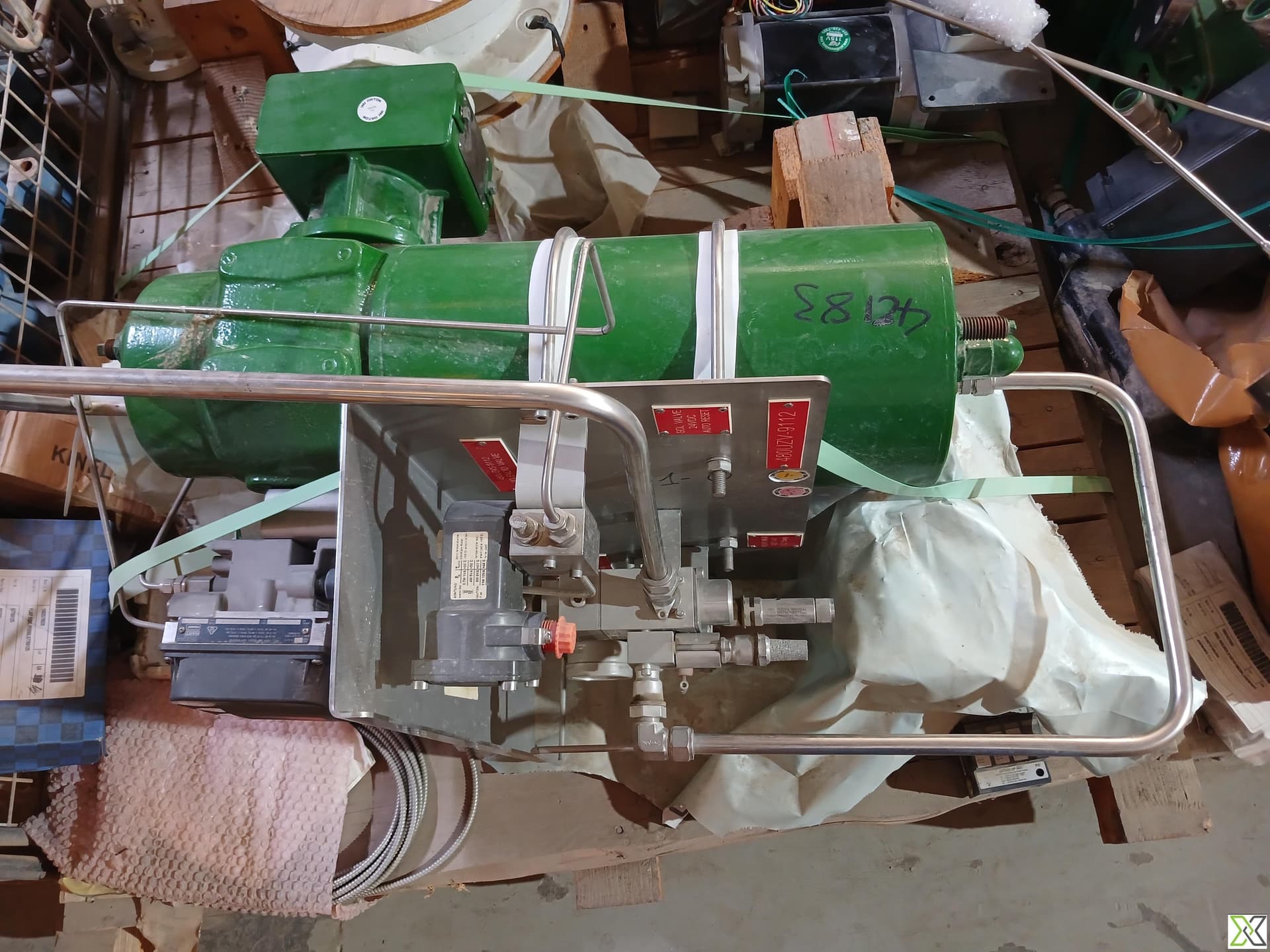

IMI ORTON MV DN200MM Automated Butterfly Valve – CF8M Body, Stellite Seat, with Fisher DVC6200 & Solenoid Valve

The IMI ORTON MV DN200MM Automated Butterfly Valve Assembly is a premium, high-performance flow control solution engineered for gas applications operating in extreme temperature environments. Built with a CF8M cast stainless steel body, Stellite GR.21 seat, and XM19 shaft, the valve ensures durability and corrosion resistance. The A240 Tp.316 disc offers superior flow control, while the Fisher DVC6200 digital valve controller with HART communication enables precise positioning. A German-made solenoid valve complements the system for ON/OFF control logic. The assembly is compliant with ASME B16.5 Class 150 and is rated for service temperatures ranging from -50°C to 450°C.

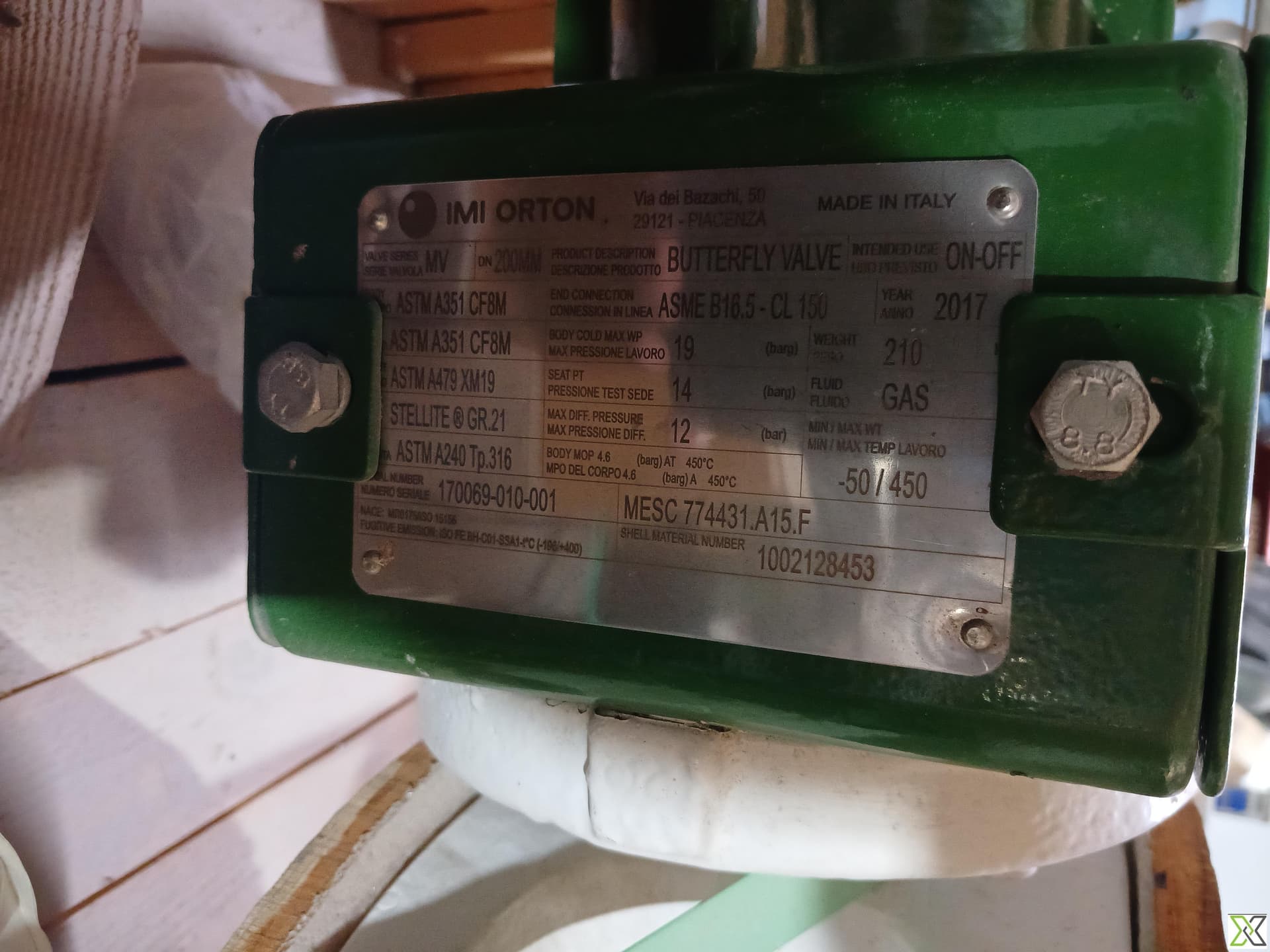

Specification:

– Component: High-Performance Butterfly Valve
– Manufacturer: IMI ORTON (Italy)
– Model / Type: MV DN200MM
– Function: ON/OFF flow isolation
– Design Standard: ASME B16.5 Class 150
– Body Material: ASTM A351 CF8M (Stainless Steel)
– Disc Material: ASTM A240 Tp.316
– Shaft Material: ASTM A479 XM19
– Seat Material: Stellite Grade 21
– Application Fluid: Gas
– Operating Temperature Range: -50°C to +450°C
– Weight: 210 kg
– Year of Manufacture: 2017
– Serial Number: 170069-010-001

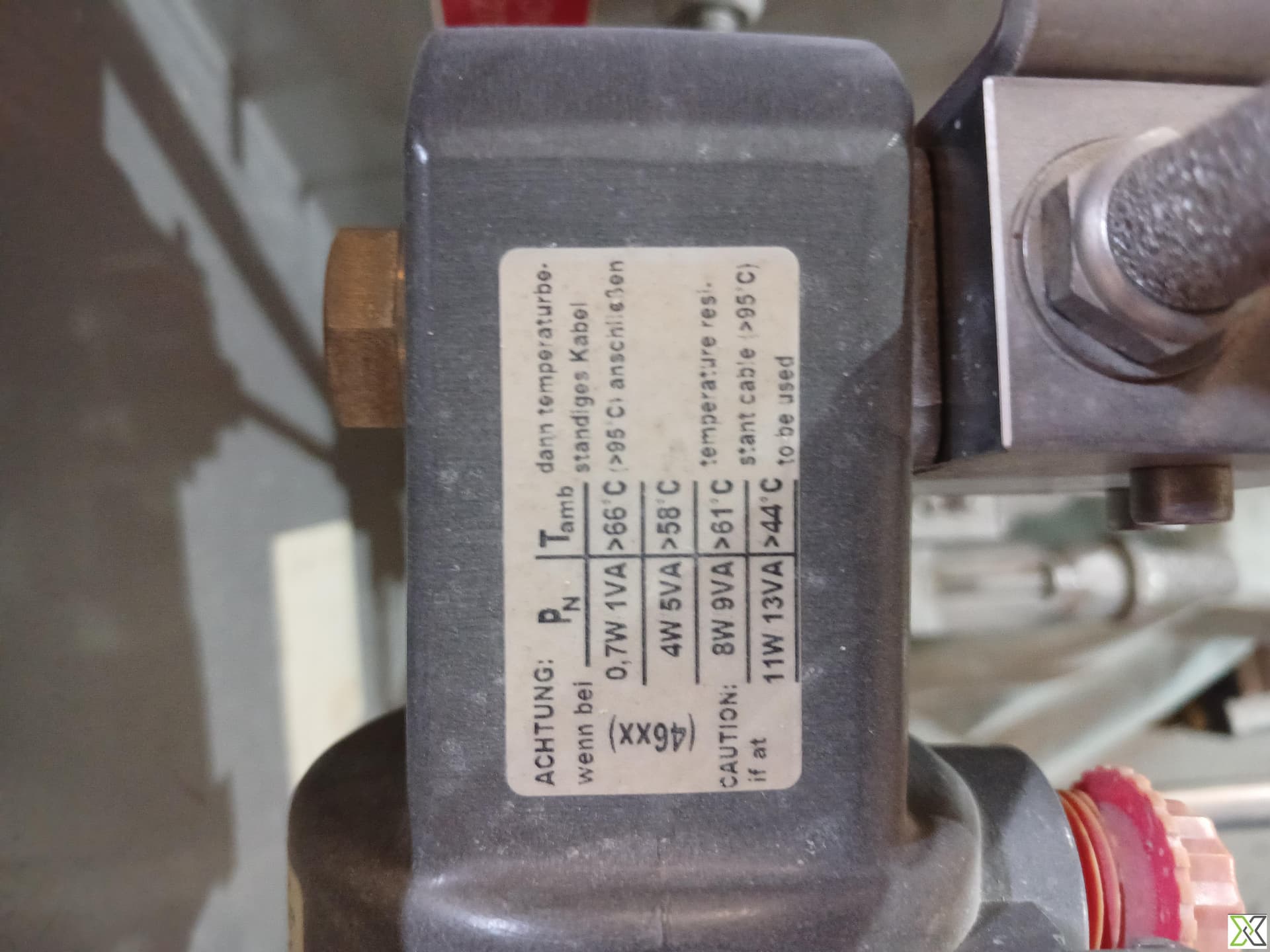

Solenoid Valve
– Manufacturer: Likely German origin (label in German)
– Function: ON/OFF solenoid actuation

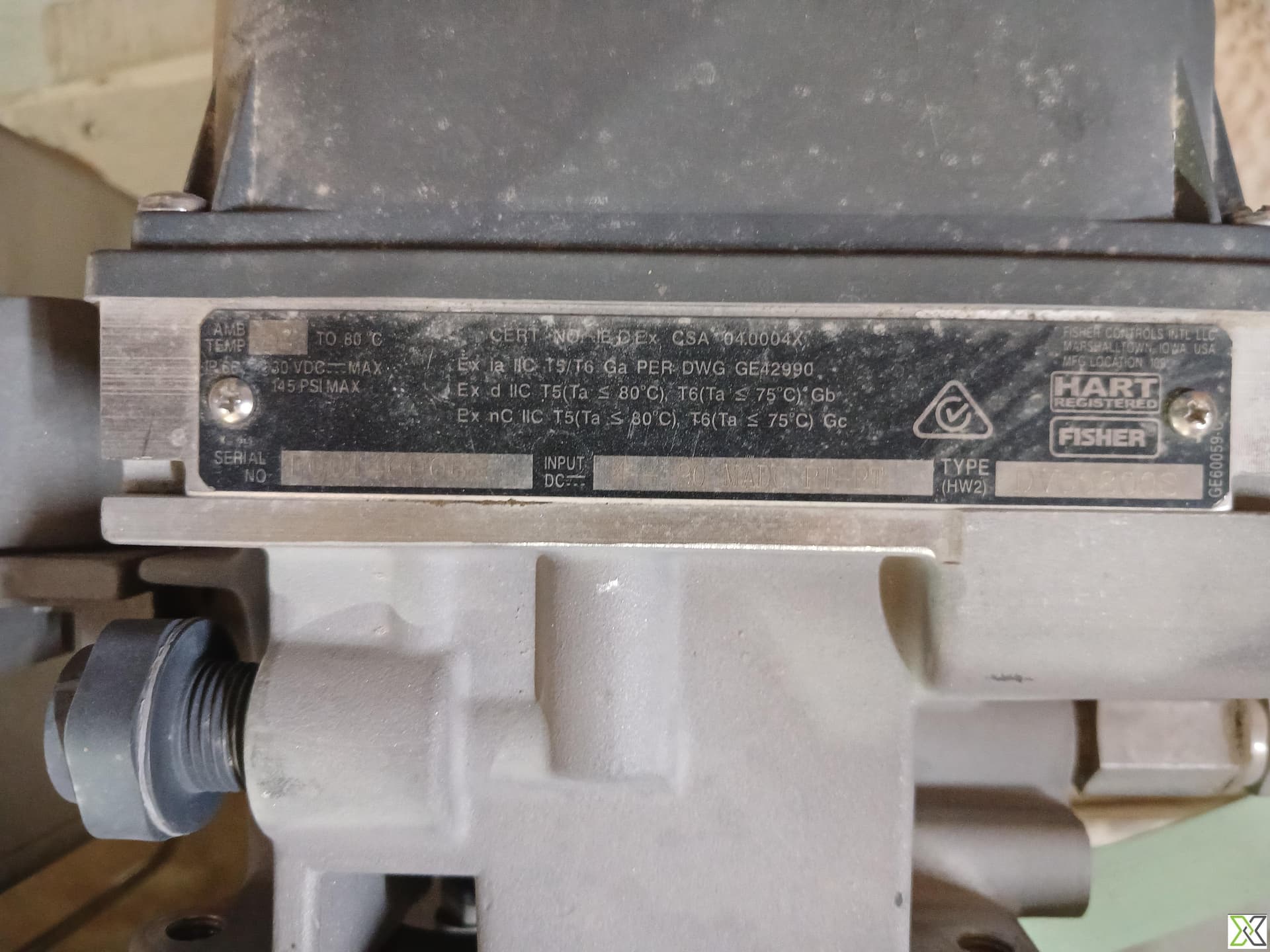

Digital Valve Positioner
– Manufacturer: Fisher (Emerson)
– Model / Type: DVC6200 (Type HW2)
– Function: Digital Valve Controller with HART Protocol
– Input: DC (exact voltage not listed)
– Max Pressure: 145 PSI
– Ambient Temperature Range: Up to 60°C
– Certification: CSA Certified – Ex d, Ex nC

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	MV DN200MM
Manufacturer Name	IMI ORTON (Italy)
Height	780 mm
Width	350 mm
Length	70 mm
Weight	65–80 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Failure Action	Fail-Closed or Fail-Open
Fluid Name	Natural Gas, Fuel Gas, Inert Gases, and Process Vapors
Full Opening Valve	Yes
Nominal Diameter	8 inches
Normal Operating Pressure	285 psi
Normal Operating Temperature	-50°C to +450°C
Piping Class	Class 150
UNSPSC Code	40141600
