BZSV HTKH-B 1"–12" Quick Switching Device – Class 150~600, High-Temperature

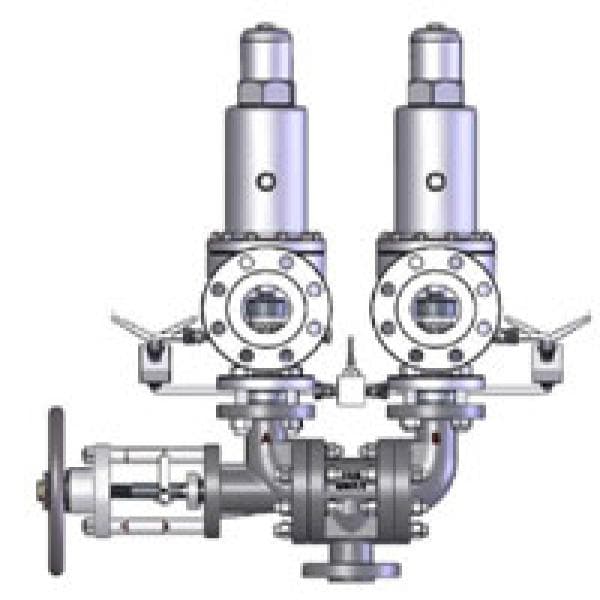

The BZSV HTKH-B Series Quick Switching Device is a robust and efficient solution for continuous overpressure protection in pressurized systems. Engineered with a three-way flow path and designed to hold two identical safety valves at one station—one in service and one as backup—it allows for seamless switching during maintenance operations without the need for process shutdown.

Its minimal flow resistance ensures full relief capacity for the active safety valve, while integrated features such as a drain valve under each relief unit allow safe media evacuation before removal. The HTKH-B is particularly valuable in systems where uptime is critical and emergency shutdowns are costly. A balancing valve is incorporated for high-pressure classes (≥600 LB), aiding safe and effortless switching. The design supports both low- and high-temperature operations up to +427 °C and maintains reliable sealing performance through multiple actuation cycles.

Specifications:

– Device Type: Quick Switching Device for Safety Valves
– Model: HTKH-B
– Size Range: 1" to 12"
– Pressure Class: 150LB to 600LB
– Temperature Range: Up to +427 °C
– Valve Configuration: Three-way flow path
– Number of Valves: 2 (1 active, 1 standby)
– End Connections: Flanged (compatible with safety valve standards)
– Switching Mechanism: Manual or assisted (with balancing valve ≥ 600LB)
– Drain System: Integrated drain valves below each safety valve for safe removal
– Sealing Integrity: Maintains high sealing performance over multiple cycles

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
