BZSV HTNJ Series Jacketed Safety Valve – 1" to 10"x12", Class 150–300, Bellows Balanced

Product Details

Quantity

500
Availability (Lead Time)

4-6 Weeks
Product Location

China
Condition
OEM

Beijing Zhonghanghua Safety Valve Sales CO. Ltd
Equipment code

Get Quotation Whatsapp

Short Description

Thermal insulation jacketed safety valve, sizes 1" to 10"x12", pressure class 150–300 lb, austenitic stainless steel construction with bellows-balanced design. Ideal for high-viscosity or crystallizing media in chemical and petrochemical industries.

Description

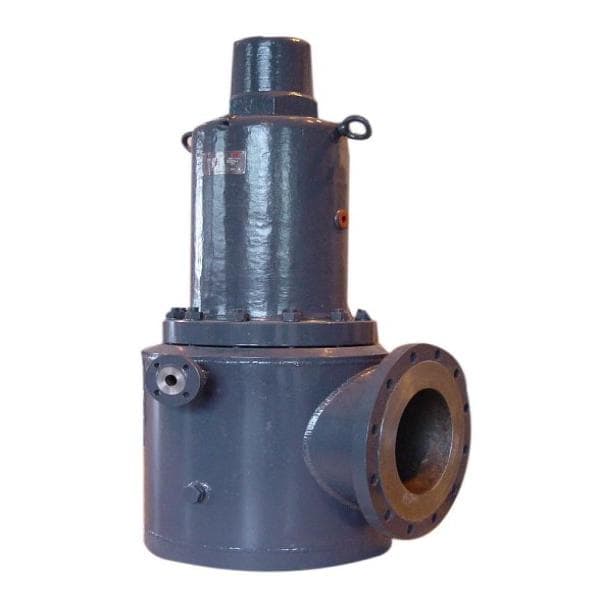

BZSV HTNJ Series Jacketed Safety Valve – 1" to 10"x12", Class 150–300, Bellows Balanced

The BZSV HTNJ Series Thermal Insulation Jacket Safety Valve is specifically designed for overpressure protection in applications requiring consistent thermal insulation, such as polyester, ethylene, heavy oil refining, and urea fertilizer systems. The valve body, including inlet and outlet flanges, is jacketed to ensure uniform heating or cooling, minimizing risks of media crystallization or solidification. The bellows-balanced structure effectively neutralizes the influence of back pressure on set pressure accuracy and protects internal components like the spring from corrosive or erosive media exposure. The valve internals are made of robust austenitic stainless steel with optional hard alloy overlay for enhanced durability. For specialty applications, trims can be supplied in urea-grade 316L, duplex stainless steel (255 alloy, SUS329J1), and even titanium bellows to meet severe process demands.

Specifications:

– Valve Type: Thermal insulation jacketed safety valve
– Series: HTNJ
– Operation: Spring-loaded, bellows balanced
– Size Range: 1"D to 10"x12"
– Pressure Class: 150# to 300#
– Temperature Range: –29°C to +520°C
– Application: Overpressure protection for insulated or heat-sensitive media
– Medium: Polyester, ethylene, heavy oil, urea, etc.
– Body Material: Austenitic stainless steel
– Trim Material: Austenitic stainless steel with hard alloy overlay
– Optional Internal Materials:
• Urea-grade 316L
• Duplex stainless steel 0Cr25Ni6Mo3CuN (255 alloy)
• SUS329J1 (00Cr25Ni6Mo2N)
• Titanium bellows (optional)
– Design Features:
• Full-body insulation including inlet/outlet flanges
• Optional steam flushing capability
• Bellows design eliminates back pressure effect
• Internal spring and parts shielded from media erosion
• High-temperature and corrosion-resistant sealing

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
