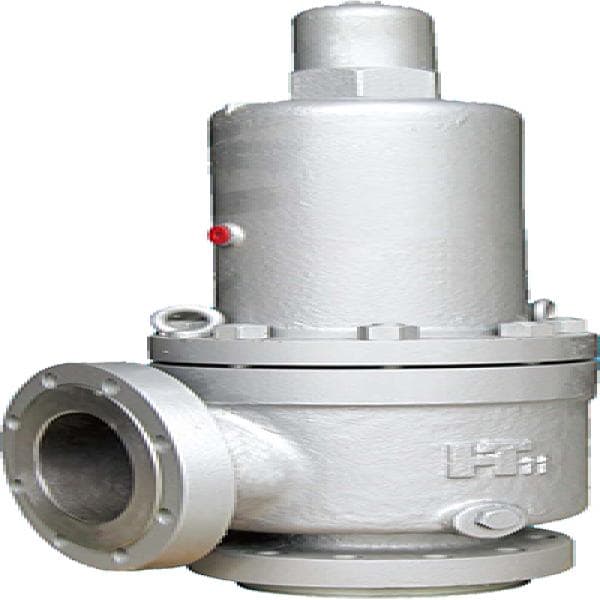

BZSV HTO/HTB Series Safety Valve – 1″ to 10″, Class 150 to 2500

Product Details

Quantity

500
Availability (Lead Time)

4-6 Weeks
Product Location

China
Condition
OEM

Beijing Zhonghanghua Safety Valve Sales CO. Ltd
Equipment code

Get Quotation Whatsapp

Short Description

Overpressure safety relief valve series HTO/HTB in sizes 1″ to 10″, pressure class 150–2500, available in carbon steel, stainless steel, and special alloys. Full lift operation for gas, liquid, and steam. API 526 compliant, optional bellows type for backpressure compensation.

Description

BZSV HTO/HTB Series Safety Valve – 1″ to 10″, Class 150 to 2500, Carbon Steel or Stainless Steel, Bellows & Conventional Type

The BZSV HTO/HTB Series Safety Valves are precision-engineered pressure relief devices designed for critical protection of pressurized equipment, vessels, and pipelines. These valves automatically discharge media once internal pressure exceeds the set limit and reseal promptly as pressure returns to safe levels. Built in accordance with API STD 526 and ISO 4123-1, these valves ensure interchangeability and reliability in demanding industrial systems. Available in standard or bellows configurations, the valves handle a wide range of media including gas, liquid, and steam across temperatures from –196°C to +538°C. Their high-performance design includes a separable valve seat for easy maintenance, hard alloy overlays for extended sealing life, and an umbrella-type recoil disk for rapid lift under minimal overpressure. The bellows version compensates for backpressure changes and protects internal components from corrosion, making this valve ideal for ASME-compliant pressure protection systems in power plants, refineries, and chemical facilities.

Specifications:

– Valve Type: Safety Relief Valve
– Series: HTO / HTB
– Operation: Automatic overpressure release
– Size Range: 1" D to 10" T
– Pressure Class: 150# to 2500#
– Temperature Range: –196°C to +538°C
– Medium Compatibility: Gas, liquid, steam
– Valve Form: Conventional type / Bellows type
– Body Materials: Carbon steel, stainless steel, special alloys
– Set Pressure Deviation: ≤±3%
– Overpressure: ≤10% (gas), ≤20% (liquid)
– Closing Pressure Difference: ≤10% (gas), ≤20% (liquid)
– Seal Tightness: API STD 527 compliant
– Design Standards:
• API STD 526 (flange & dimensions)
• API STD 527 (seat tightness)
• ISO 4123-1
• ASME Boiler & Pressure Vessel Code Section VIII Div.1

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
