Hydraulic Power Unit with Sperry Vickers Valve and 5 kW Motor

ReflowX SKU: REF-8085

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

ReflowX
Equipment code

Get Quotation Whatsapp

Short Description

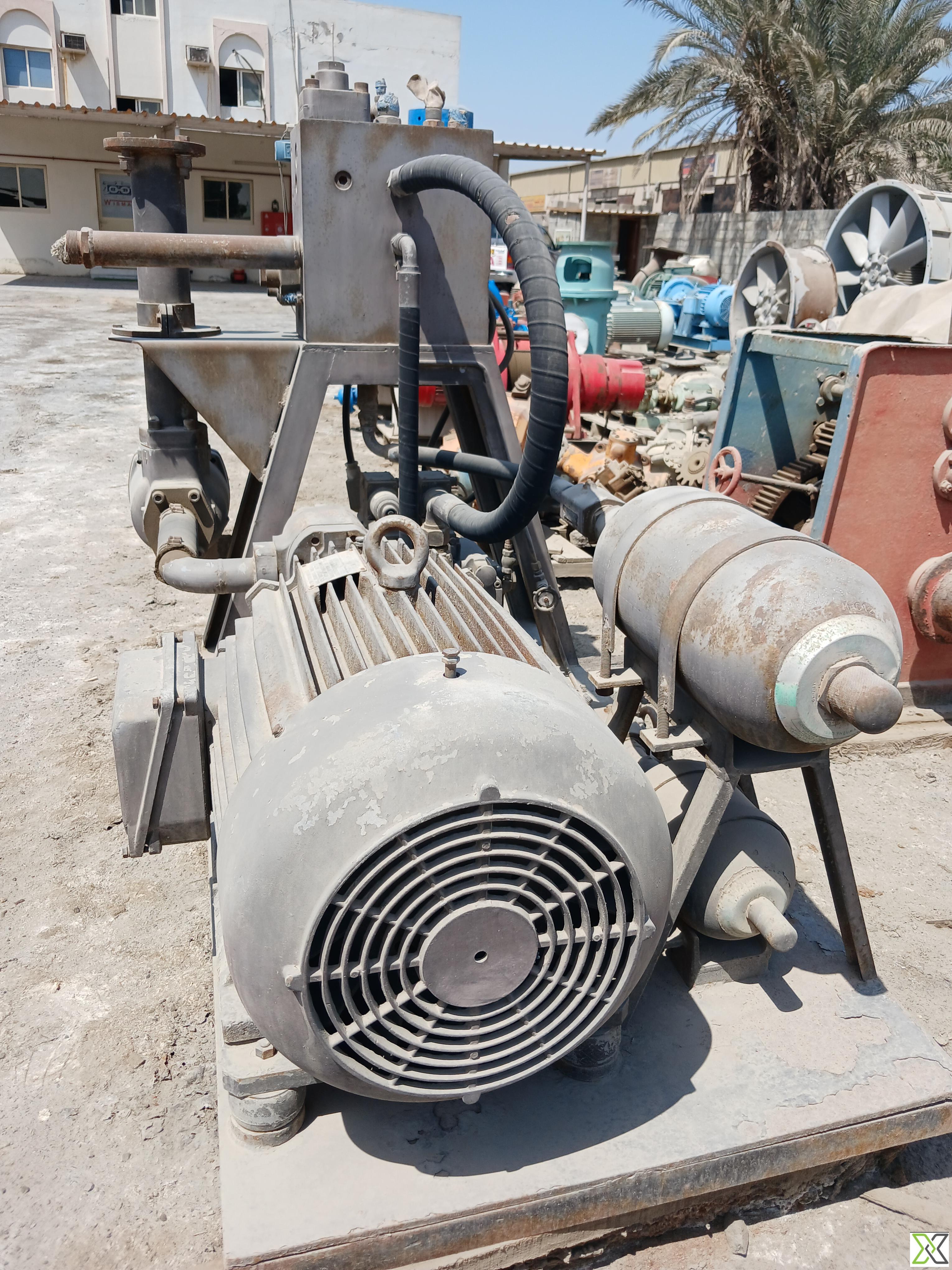

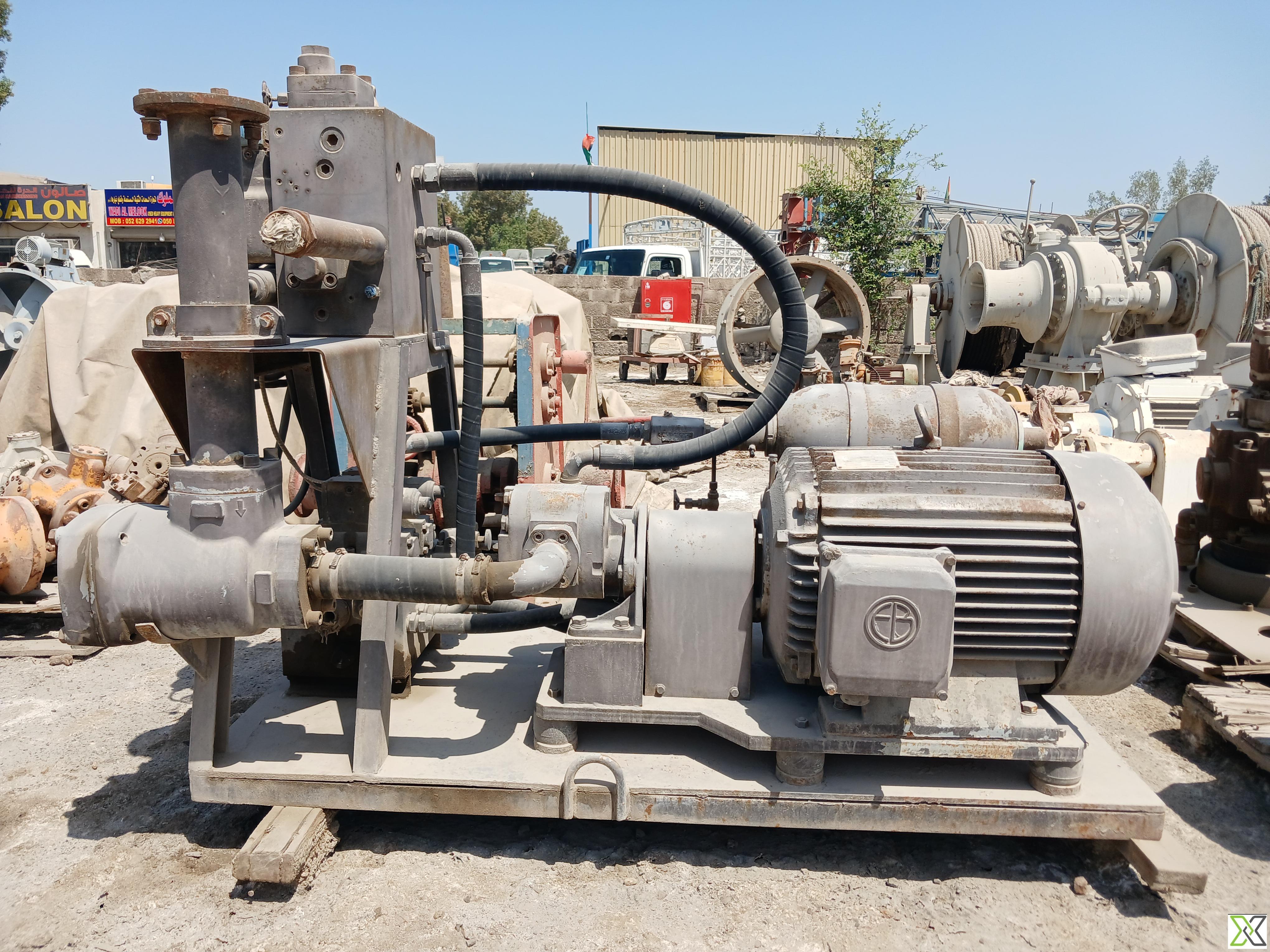

Compact hydraulic power unit skid featuring a Sperry Vickers directional control valve, integrated gear pump, and a CEI 3-phase asynchronous electric motor rated at 5 kW, ideal for pressurized hydraulic system applications.

Description

Hydraulic Power Unit with Sperry Vickers Valve and 5 kW Motor

Description

This used hydraulic power unit is built on a robust industrial skid and features a Sperry Vickers directional control valve for precise flow regulation and pressure control. It includes a compact gear pump system and is powered by a CEI-branded asynchronous three-phase electric motor. The motor delivers 5 kW of continuous power at 1435 RPM, operating at 380V / 50 Hz. The entire assembly is suitable for high-reliability hydraulic applications in industrial environments such as presses, lifting systems, and hydraulic drives.

Specifications

Hydraulic Power Unit
– Type: Hydraulic Power Pack (Skid-Mounted)
– Operation: Electro-Hydraulic
– Motor Power: 5 kW
– Motor Speed: 1435 RPM
– Voltage: 380 V
– Frequency: 50 Hz
– Current: 8.5 A

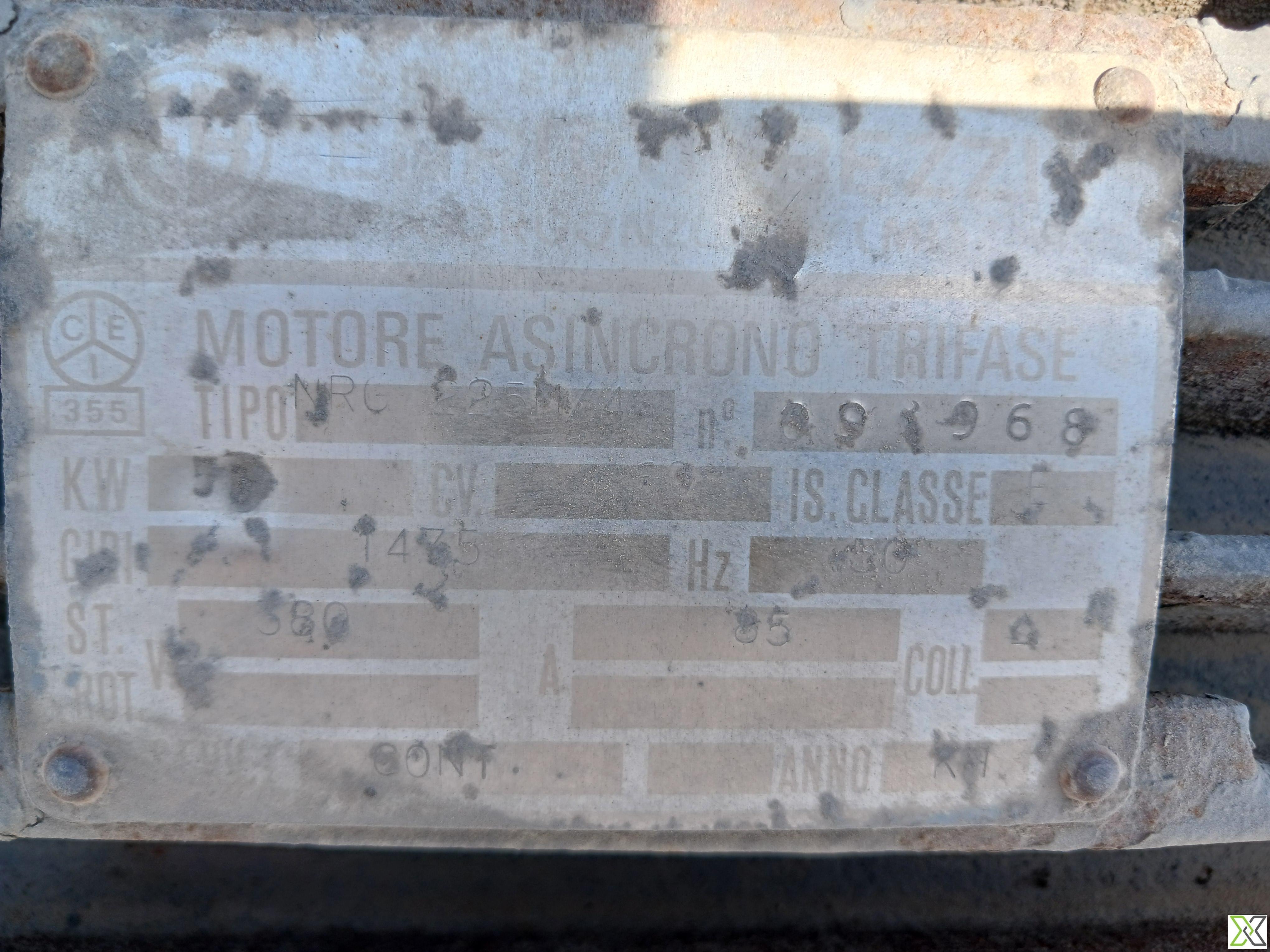

– Motor Type: Asynchronous 3-Phase (Motore Asincrono Trifase)
– Motor Model: NRC 22 M4
– Serial Number: 091968
– Insulation Class: F
– Duty Cycle: Continuous (S1)
– Year of Manufacture: 1997 (estimated)
– Country of Origin: Italy (CEI)

Hydraulic Pump System
– Pump Type: Gear Pump (integrated)
– Drive Type: Direct Coupled to Motor
– Mounting: Horizontal Base Skid
– Application: General Hydraulic Systems (presses, cylinders, lifts)

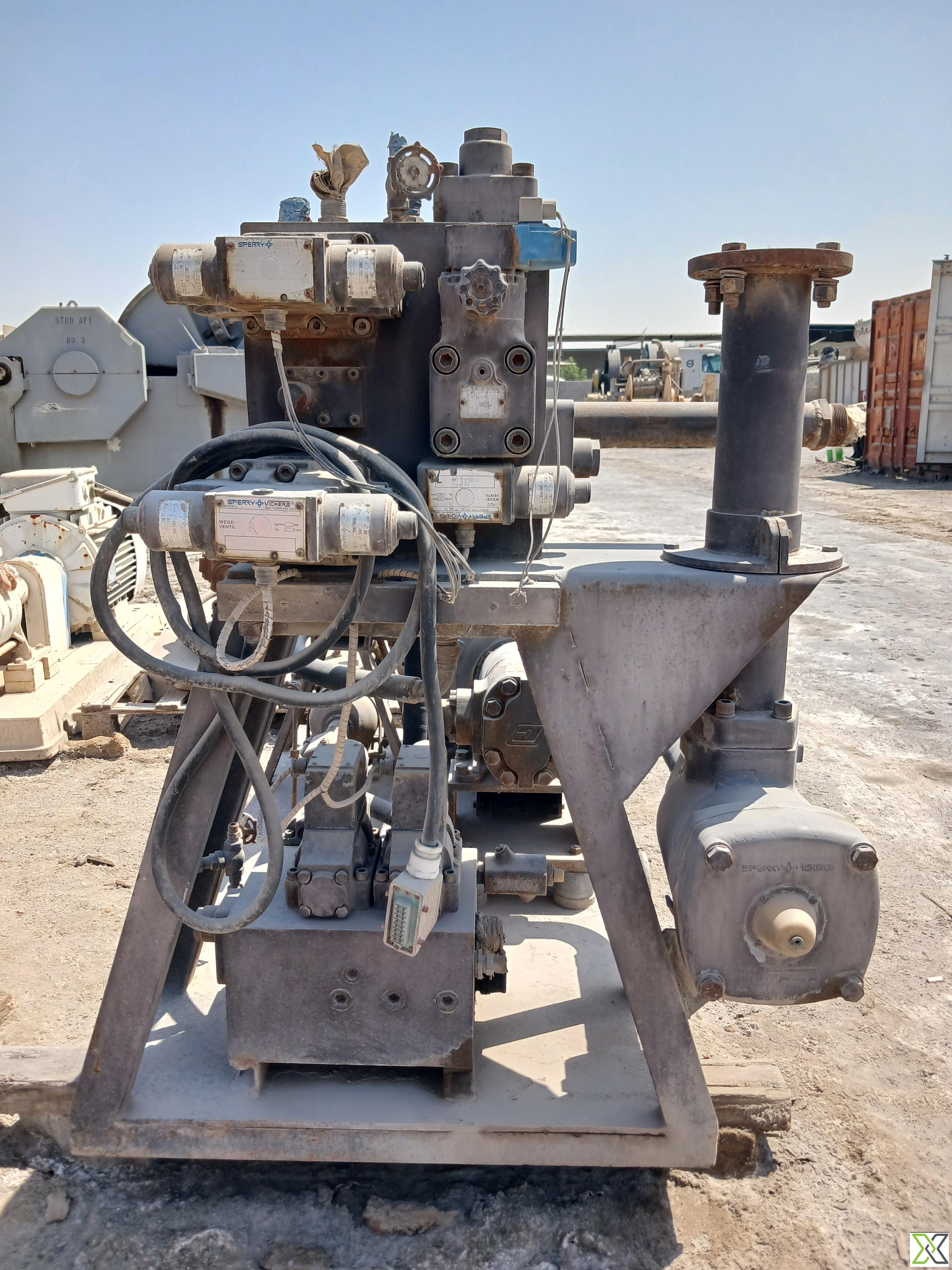

Directional Control Valve
– Brand: Sperry Vickers
– Type: Hydraulic Directional Valve
– Configuration: Likely 4/3 or 4/2 way
– Operation: Solenoid or Manual Lever (not clearly visible)
– Pressure Rating: Up to 315 bar typical (depending on exact model)
– Standard: ISO 4401 (common for Vickers valve plates)
– Mounting: Subplate Mounted

General Parameters
– Skid Type: Heavy-Duty Welded Steel
– Hose Configuration: Fitted with Hydraulic Return & Supply Hoses
– Estimated Weight: ~300–400 kg
– Condition: Used / Field-Deployed
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	Hydraulic Directional Valve
Manufacturer Name	Sperry Vickers
Height	850 mm
Width	600 mm
Length	900 mm
Weight	140 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Failure Action	Hydraulic pressure ceases and actuated systems will halt
Fluid Name	Hydraulic Oil
Full Opening Valve	Yes
Nominal Diameter	1” BSP or NPT
Normal Operating Pressure	160 to 210 bar
Normal Operating Temperature	40°C to 55°C
Piping Class	Class 150–300
UNSPSC Code	40141600
