- W&O Supply Stop Check Valve – 2" – 150 LB – A536 Ductile Iron
Description
W&O Supply Stop Check Valve – 2" – 150 LB – A536 Ductile Iron

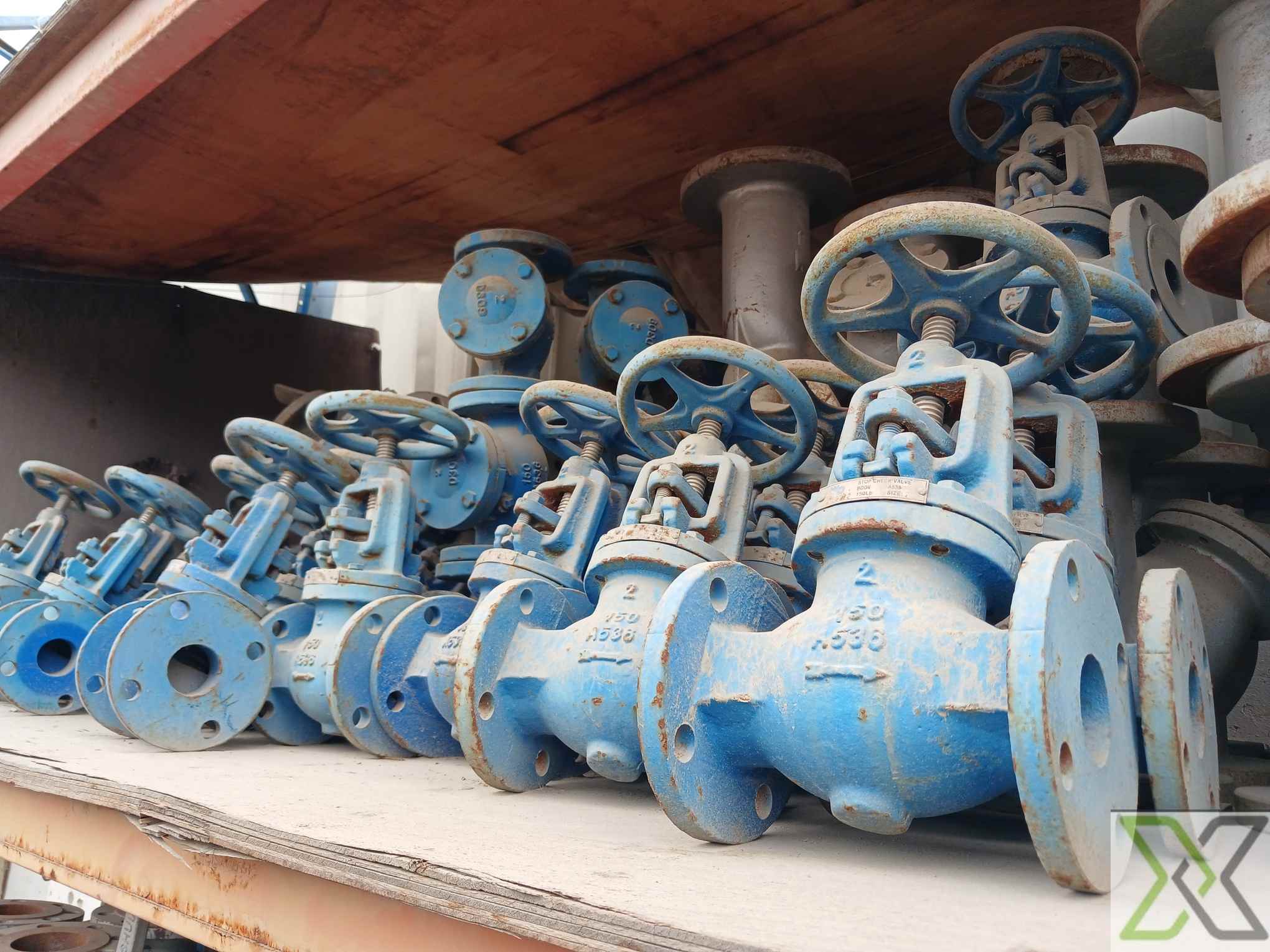

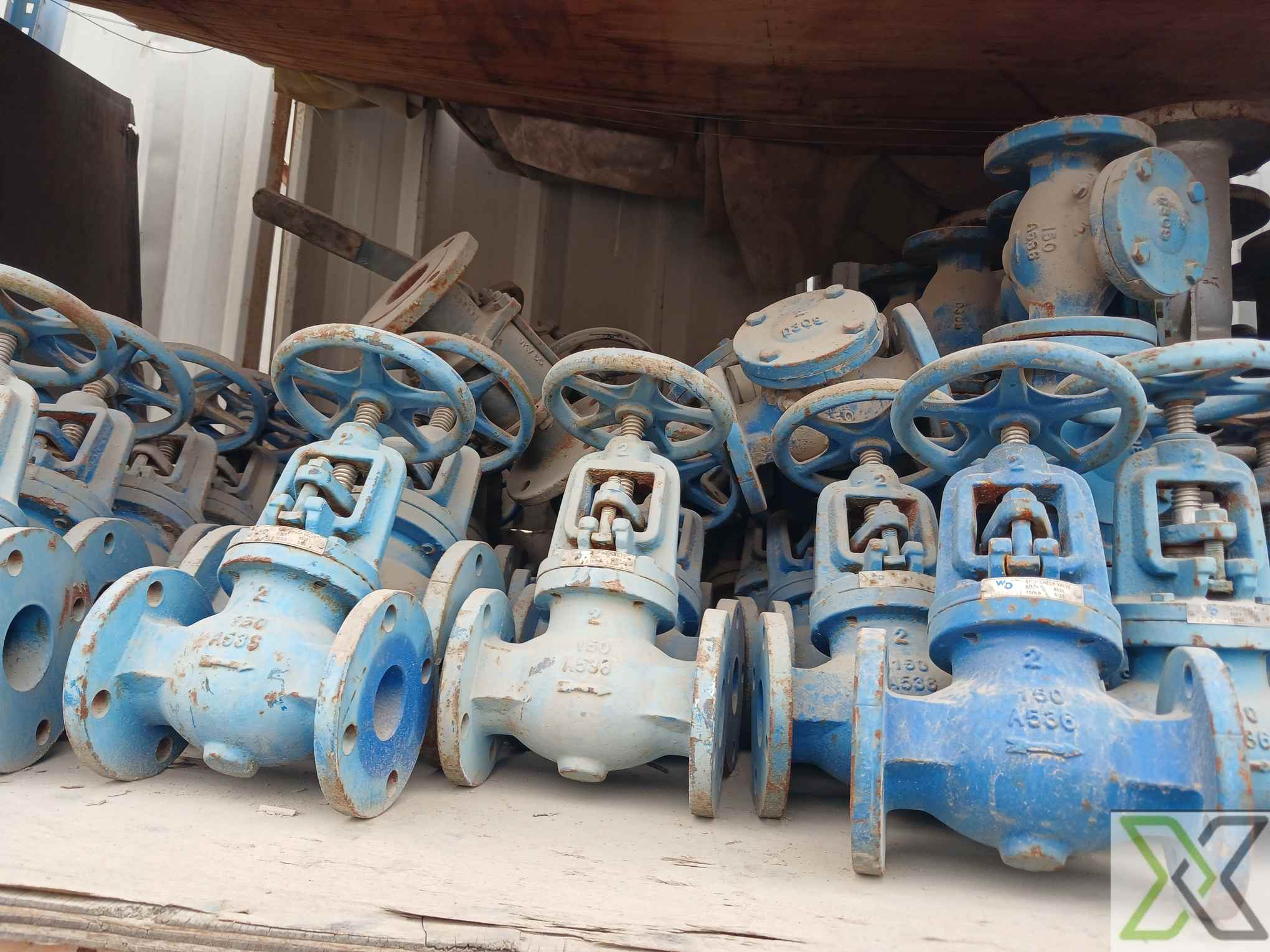

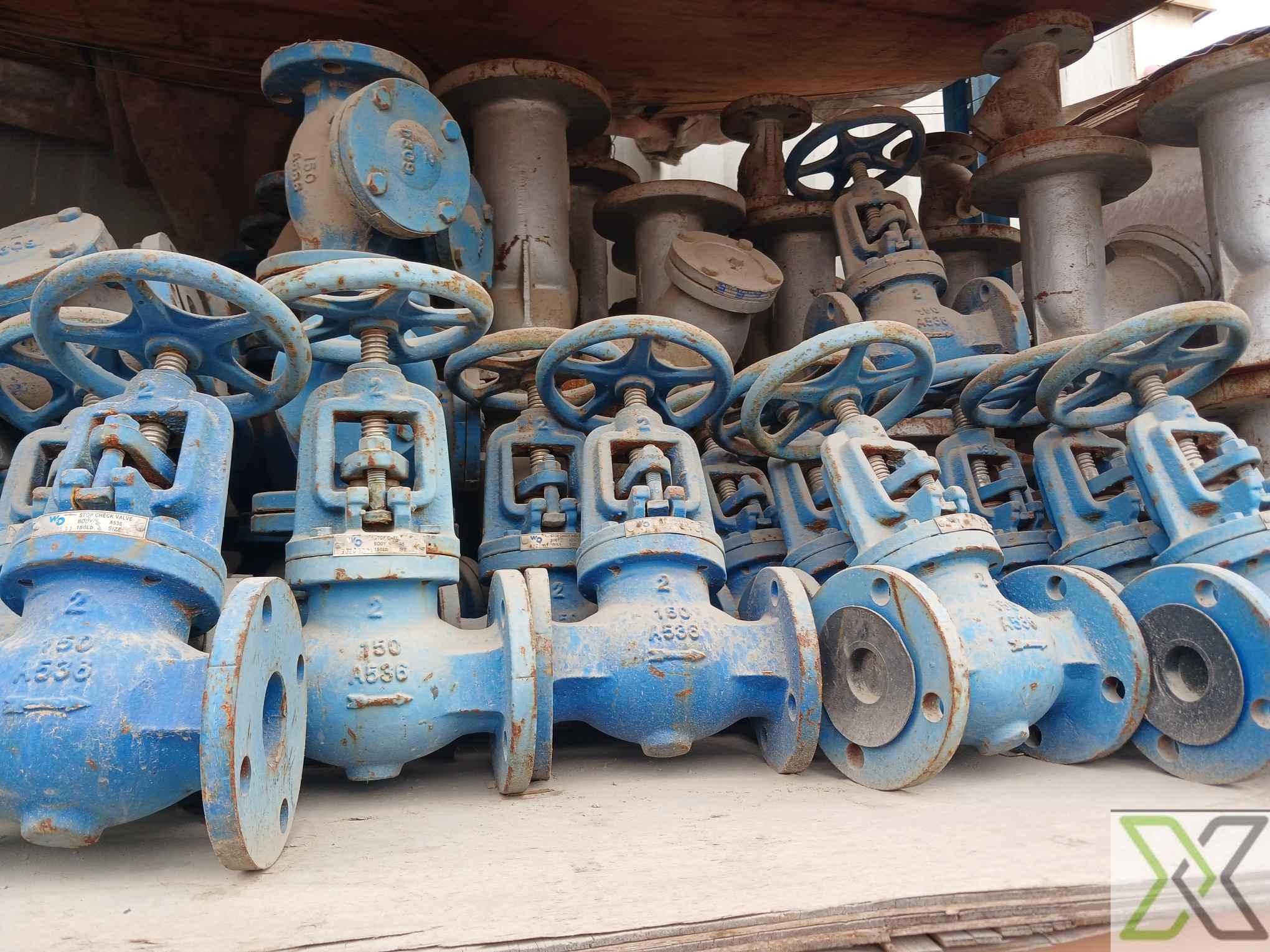

Available for sale is a W&O Supply Stop Check Valve, designed to provide reliable shutoff and flow control in pressurized systems. Constructed from A536 ductile iron, this 2-inch valve is built to withstand high demand in marine, oil & gas, and industrial applications.
Clearly stamped with 150 LB pressure class, this stop check valve combines strength and corrosion resistance, ensuring optimal performance in harsh environments. The rugged design allows for use in both horizontal and vertical pipelines where check and stop functionalities are required.
Specifications:
– Manufacturer: W&O Supply
– Model Type: Stop Check Valve
– Size: 2 inches (body marked)
– Pressure Rating: 150 LB
– Body Material: A536 (Ductile Iron)

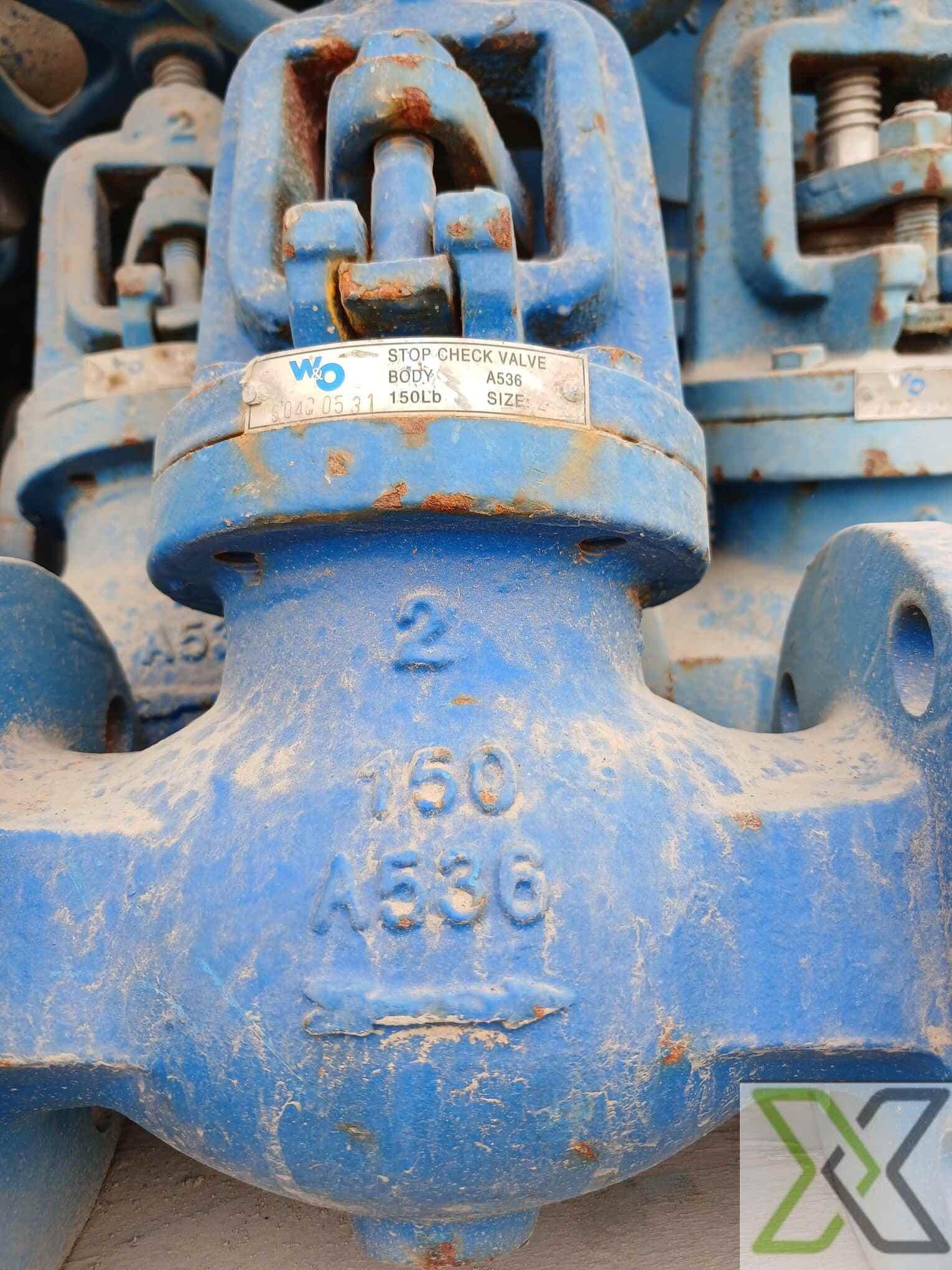

– Body Markings: 2, 160, A536
– Location: UAE
– Condition: Surplus
– SKU: REF-6354
– Durable ductile iron construction (A536)
– 150 LB class rating for medium-pressure systems
– Ideal for backflow prevention and line isolation
– Suitable for both horizontal and vertical installations
– Trusted in demanding marine and industrial settings
For further specifications or to inquire about this equipment and ReflowX's logistics services, please contact ReflowX at info@reflowx.com
Technical Details
| ISO 15926 Pt 4 | 10554 |
|---|---|
| Model Number | A536 |
| Height | 180 mm |
| Width | 120 mm |
| Length | 203 mm |
| Color | 9–11 kg |
| ISO 15926 Pt 4 | 10554 |
| PCA RDS Code | RDS292589 |
| CFIHOS ID | CFIHOS-30000660 |
| IFC Class | IfcValve |
| Failure Action | Non-return + shut-off function |
| Fluid Name | Water, Steam, Air, Oil |
| Full Opening Valve | No |
| Nominal Diameter | 2 inches |
| Normal Operating Pressure | 150 PSI |
| Normal Operating Temperature | Up to 120°C |
| Piping Class | ANSI Class 150 |
| UNSPSC Code | 40141600 |
