JC 6" 900# Stainless Steel Ball Valve – 316/316L, RF Ends, MOD-H1

ReflowX SKU: REF-5200

Product Details

Quantity

10
Availability (Lead Time)

2-4 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

JC Valves
Equipment code

Get Quotation Whatsapp

Short Description

High-performance 6-inch Class 900 stainless steel ball valve by JC Valves, Model MOD-H1, with raised face flanges, CE marking, and full traceability.

Description

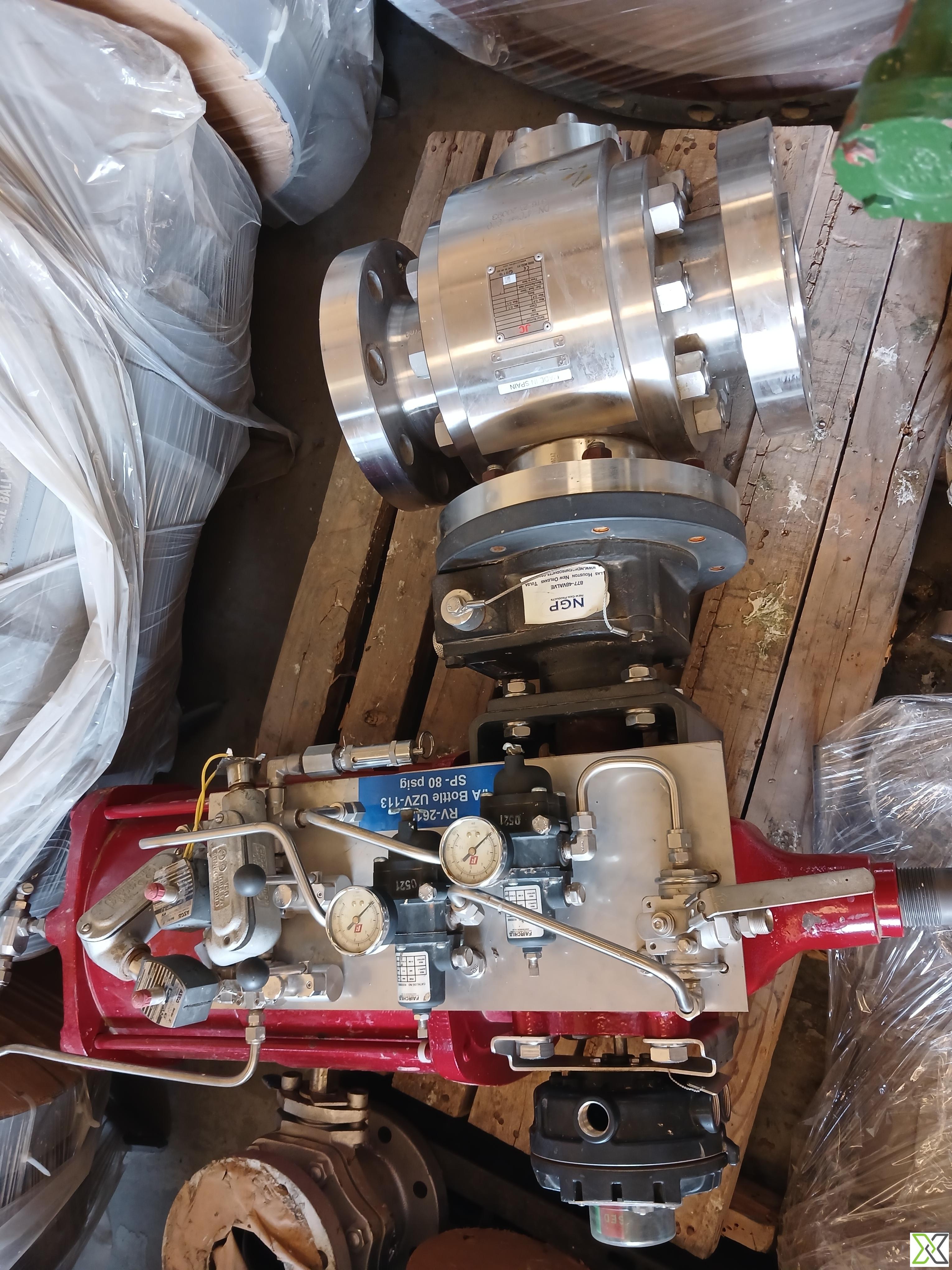

JC 6" 900# Stainless Steel Ball Valve – 316/316L, RF Ends, MOD-H1
Description

The JC Valves 6" 900# Stainless Steel Ball Valve, Model MOD-H1, is engineered for high-pressure industrial applications requiring reliable isolation and corrosion resistance. Constructed from ASTM A182 F316/F316L stainless steel for both body and internal components, this valve delivers durability in aggressive environments including chemical, petrochemical, and offshore installations.

The valve features a full port design, 900# pressure rating, and RF (Raised Face) end connections suitable for ANSI B16.5 flanges. Designed in compliance with the Pressure Equipment Directive (PED 2014/68/EU) and CE marked, it provides certified performance and traceability. This robust unit ensures secure shutoff from 1.0 bar to 460 bar of operating pressure.

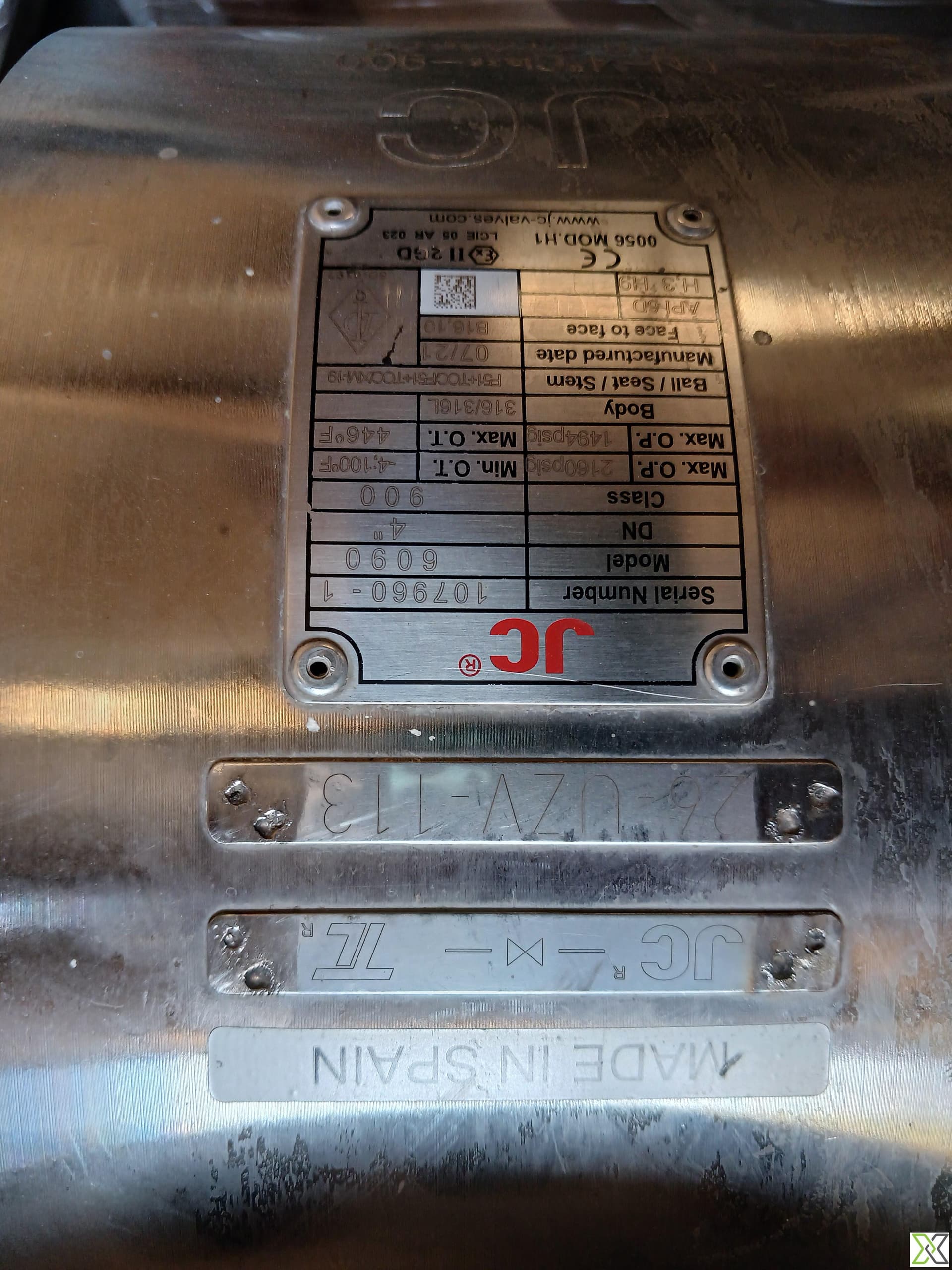

Each valve is traceable via a visible QR/serial code for asset integrity management. Made in Spain by JC Valves, a global leader in high-specification valve technology.

Specifications:

– Model: MOD-H1
– Valve Type: Ball Valve
– Nominal Size: 6 Inch (DN 150)
– Pressure Class: 900# (ANSI B16.34)
– Body Material: ASTM A182 F316/F316L Stainless Steel
– Ball Material: AISI 316/316L Stainless Steel
– Seat Material: AISI 316/316L Stainless Steel
– Stem Material: AISI 316/316L Stainless Steel
– End Connections: Raised Face (RF), ASME B16.5
– Design Standard: PED 2014/68/EU
– Pressure Rating (Max): 460 bar (at ambient temperature)
– Pressure Rating (Min): 1.0 bar
– Temperature Range: -29°C to +180°C (based on material limits)
– Operation Type: Manual or Actuator-ready
– Fire Safe Design: Yes (to API 607 – assumed standard for MOD-H1 series)
– Blowout Proof Stem: Yes
– Anti-Static Device: Yes
– Face-to-Face Dimensions: ASME B16.10 compliant
– Inspection & Testing: API 598
– CE Marked: Yes
– Serial Number: 107960-1
– Explosion Protection Gas Group: Not applicable (non-electrical mechanical device)
– Explosion Protection Zone: Not applicable
– Temperature Class: Not applicable (not electrical equipment)
– Color: Natural Stainless Steel Finish
– Direction of Flow: Bi-directional
– Country of Origin: Made in Spain
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	MOD-H1
Height	305 mm
Width	290 mm
Length	610 mm
Weight	290 kg for 6″
Color	Natural Stainless Steel Finish
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Failure Action	Last position
Full Opening Valve	Yes
Nominal Diameter	6″ (DN 150) exact size
Normal Operating Pressure	99 bar
Normal Operating Temperature	−29 °C to +180 °C
Piping Class	Class 900
UNSPSC Code	40141600
