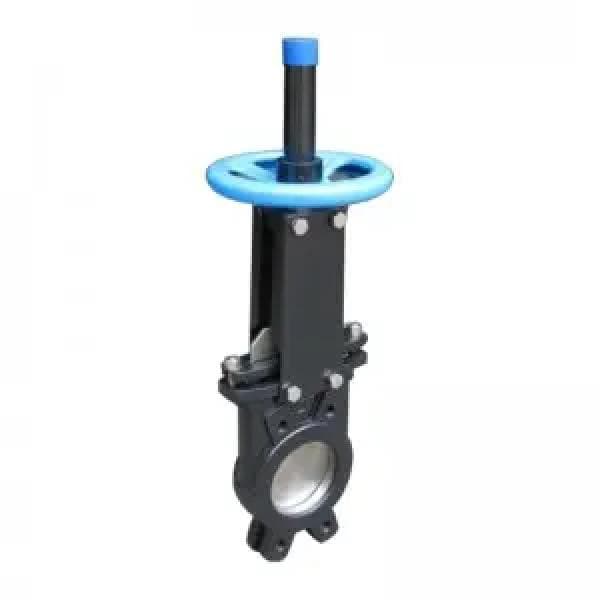

NSW Knife Gate Valve – Full Port, Lug/Wafer/Flanged, Class 150, Stainless & Alloy Options

Product Details

Quantity

500
Availability (Lead Time)

4-6 Weeks
Product Location

China
Condition
OEM

WENZHOU NEWSWAY VALVE CO. LTD
Equipment code

Get Quotation Whatsapp

Short Description

High-performance knife gate valve with full port design, available in lug, wafer, and double flange ends. Class 150/PN10/PN16 pressure rating, non-rising stem, blowout-proof stem, and zero-leakage bidirectional shut-off.

Description

NSW Knife Gate Valve – Full Port, Lug/Wafer/Flanged, Class 150, Stainless & Alloy Options

The NSW Knife Gate Valve is a robust, full-port isolation valve designed to handle harsh slurry and media-rich environments in industries such as pulp & paper, mining, sugar production, and wastewater. It features a compact, short-structure design with a non-rising stem configuration, allowing installation in tight piping layouts.

Manufactured in accordance with MSS-SP-81, the valve ensures zero-leakage bi-directional shut-off through a mechanically retained combination metal and resilient seat. Its gate is guided throughout the stroke and self-cleans with every actuation. The top transverse packing seal is serviceable under full line pressure, ensuring continued uptime and seal reliability.

Engineered for durability, it includes anti-blowout stem design, low operating torque, and is compatible with manual, pneumatic, and electric actuators. The full port design reduces pressure drop, and optional locking device enhances safety in critical operations. Available in forged and cast stainless, carbon, and alloy steels, with coatings and trim options to suit aggressive or corrosive media.

Specifications:

– Valve Type: Knife Gate Valve
– Operation: Handwheel, Bevel Gearbox, Pneumatic Actuator, Electric Actuator
– Size Range: 2″ to 48″ (DN50 to DN1200)
– Pressure Class: Class 150 / PN10 / PN16
– Temperature Range: -46 °C to +160 °C
– Body Materials:
• Forged: A105, A182 F304/L, F316/L, F51, F53, A350 LF2/3/5
• Cast: A216 WCB, A351 CF8, CF8M, CF3, CF3M, A995 Duplex/6A, A352 LCB, Inconel, Monel, Alloy 20, Hastelloy
– Connection Types:
• Wafer, Lug, or Double Flanged
• ASME B16.5, B16.47, MSS-SP-44
• EN1092-1, GOST 12815
– Face-to-Face: MSS-SP-81
– Design Standard: MSS-SP-81
– Test & Inspection: API 598, MSS-SP-81
– Fire Safe Design: API 6FA / API 607
– Special Features:
• Full Port, Short Pattern Body
• Blowout-Proof Stem
• Top Packing Seal (Serviceable Under Pressure)
• Locking Device Available
• Anti-Static Device
• Zero-Leakage Bidirectional Shut-off
• Contoured Chest Corners for Self-Cleaning
• Low Torque Operation
– Compliance & Testing:
• NACE MR-0175 / MR-0103
• ISO 15848 (Fugitive Emission)
• NDT: PMI, UT, RT, PT, MT

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
