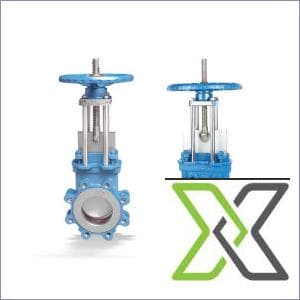

Knife Gate Valve – Lug Type | ANSI Standard | WCB A216 Carbon Steel | 2” to 40”

ReflowX SKU: REF-7436

Product Details

Quantity

50
Availability (Lead Time)

4-6 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

ReflowX
Equipment code

Get Quotation Whatsapp

Short Description

Robust lug-type knife gate valve made from WCB A216 carbon steel, designed to ANSI standards and suitable for Class 150 service in sizes ranging from 2” to 40”.

Description

Knife Gate Valve – Lug Type | ANSI Standard | WCB A216 Carbon Steel | 2” to 40”

Description:

The Lug Type Knife Gate Valve is a high-performance shut-off valve designed to withstand demanding industrial service conditions. Constructed from durable WCB A216 carbon steel and built to ANSI standards, this valve is ideal for low-pressure applications with high solids content, such as in pulp and paper processing, mining, water treatment, and slurry transport. It features a full-port blade that cuts through thick media to ensure tight shut-off, and is rated for Class 150 applications. Its robust and simple design makes it easy to maintain and cost-effective, especially in abrasive or sediment-laden environments.

Specifications:

– Product Type: Knife Gate Valve – Lug Type
– Body Material:
• Carbon Steel: ASTM A216 Grade WCB
– Size Range: 2” to 40”
– Standard: ANSI
– Design Type: Lug Type
– Pressure Rating: Class 150
– Connection Type: Lug-style ends, drilled for bolting between flanges
– Face-to-Face Standard: MSS-SP-81 or Manufacturer Standard

Design Features:
– Unidirectional or Bidirectional Shut-off (depending on model)
– Precision-machined blade designed to cut through viscous or slurry media
– Manual top-mounted handwheel or optional interface for pneumatic/electric actuators

Applications:
– Pulp & Paper Industry
– Mining Operations
– Water Treatment Plants
– Solids and Slurry Transport Systems

Country of Origin: China, India, Korea

For more technical specifications or to inquire about this product and ReflowX logistics services, please contact: info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	Knife Gate Valve – Lug Type
Height	300 mm to 2100 mm
Width	120 mm to 1150 mm
Length	50 mm to 300 mm
Weight	8 kg to 700 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Failure Action	Stays in place unless operated
Fluid Name	Slurry, Pulp, Wastewater, Ash, Bulk solids, Mining tailings
Full Opening Valve	Yes
Nominal Diameter	2” to 40”
Normal Operating Pressure	275 psi
Normal Operating Temperature	–10°C to +425°C
Piping Class	Class 150 piping systems
UNSPSC Code	40141600
