KKUKA Model 7500 DBB Valve-Ball valves

ReflowX SKU: REF-1738

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

KUKA
Equipment code
Shipping Rate

Get Quotation Whatsapp

Short Description

8-inch KUKA Model 7500 double block & bleed valve with CF8 body and DEVLON seats. Rated for 1440 PSIG at 100°F and certified to API & ISO standards.

Description

KUKA Model 7500 DBB Valve – 8" – 600# – CF8 Body – DEVLON Seat

Available for sale is the KUKA 7500 Double Block and Bleed (DBB) Valve, a high-performance industrial valve designed for critical isolation and safety in fluid systems. This 8-inch, Class 600# valve is built with a CF8 cast stainless steel body and ball, F304 stem, and DEVLON seat inserts, offering excellent strength, corrosion resistance, and sealing performance.

Rated at 1440 PSIG at 100°F, it meets global standards including API 6D, ISO 14313, and carries full traceability via the nameplate and serial number. Designed and manufactured in Daegu, Korea, this valve is suited for use in pipelines, oil & gas, chemical, and refining industries.

Specifications:

– Manufacturer: KUKA
– Model / Figure No.: 7500
– Type: DBB (Double Block & Bleed)
– Size: 8 inches
– Pressure Class: 600#
– MOP: 1440 PSIG @ 100°F
– Body Material: CF8 (Cast Stainless Steel)
– Ball Material: CF8
– Seat Material: DEVLON
– Stem Material: F304 (Stainless Steel)

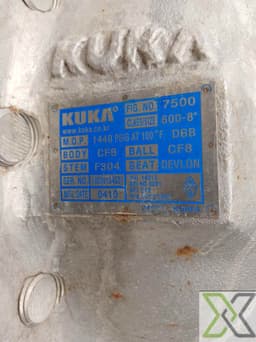

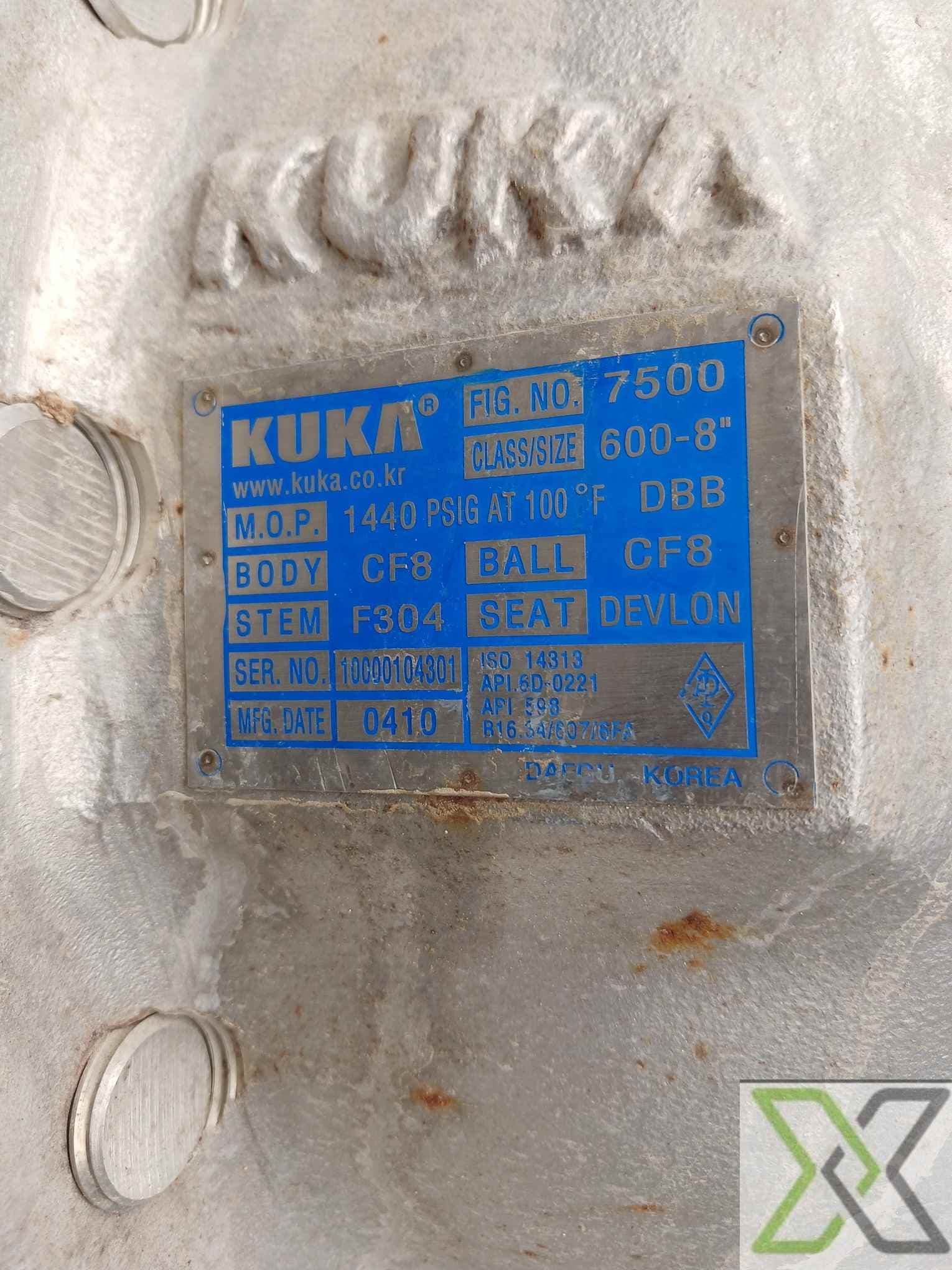

– Serial No.: 10000104301
– Manufacturing Date: 0410 (April 2010)
– Origin: Daegu, Korea
– Certifications:
• API 6D
• ISO 14313
• R0 6.36.07.07FA

Applications:
– Mainline isolation in oil & gas pipelines
– Critical shut-off for petrochemical plants
– High-integrity process control systems
– Utility & safety shutdown in refineries

Features & Benefits:
– Double block & bleed design for high-integrity isolation
– CF8 stainless construction for corrosion resistance
– DEVLON seat for chemical & thermal performance
– Compliant with international industrial standards
– Flanged connections for secure installation

For further specifications or to inquire about this equipment and ReflowX's logistics services, please contact ReflowX at info@reflowx.com.

Technical Details

ISO 15926 Pt 4	10554
Model Number	7500
Height	820 mm
Width	690 mm
Length	660 mm
Weight	195 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	Double Block and Bleed
Failure Action	Manual fail-safe via gear-operated handwheel
Fluid Name	Crude Oil, Natural Gas, Water, Process Fluids
Full Opening Valve	Yes
Nominal Diameter	8 Inches
Normal Operating Pressure	1440 PSIG
Normal Operating Temperature	-29°C to +100°C
Piping Class	Class 600
UNSPSC Code	40141600

General Terms

ReflowX and the seller retain the right to evaluate and approve offers.
Buyers should verify quantities and conditions upon delivery.
After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
All parties agree to adhere to ReflowX Terms and Conditions in transactions.
Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
