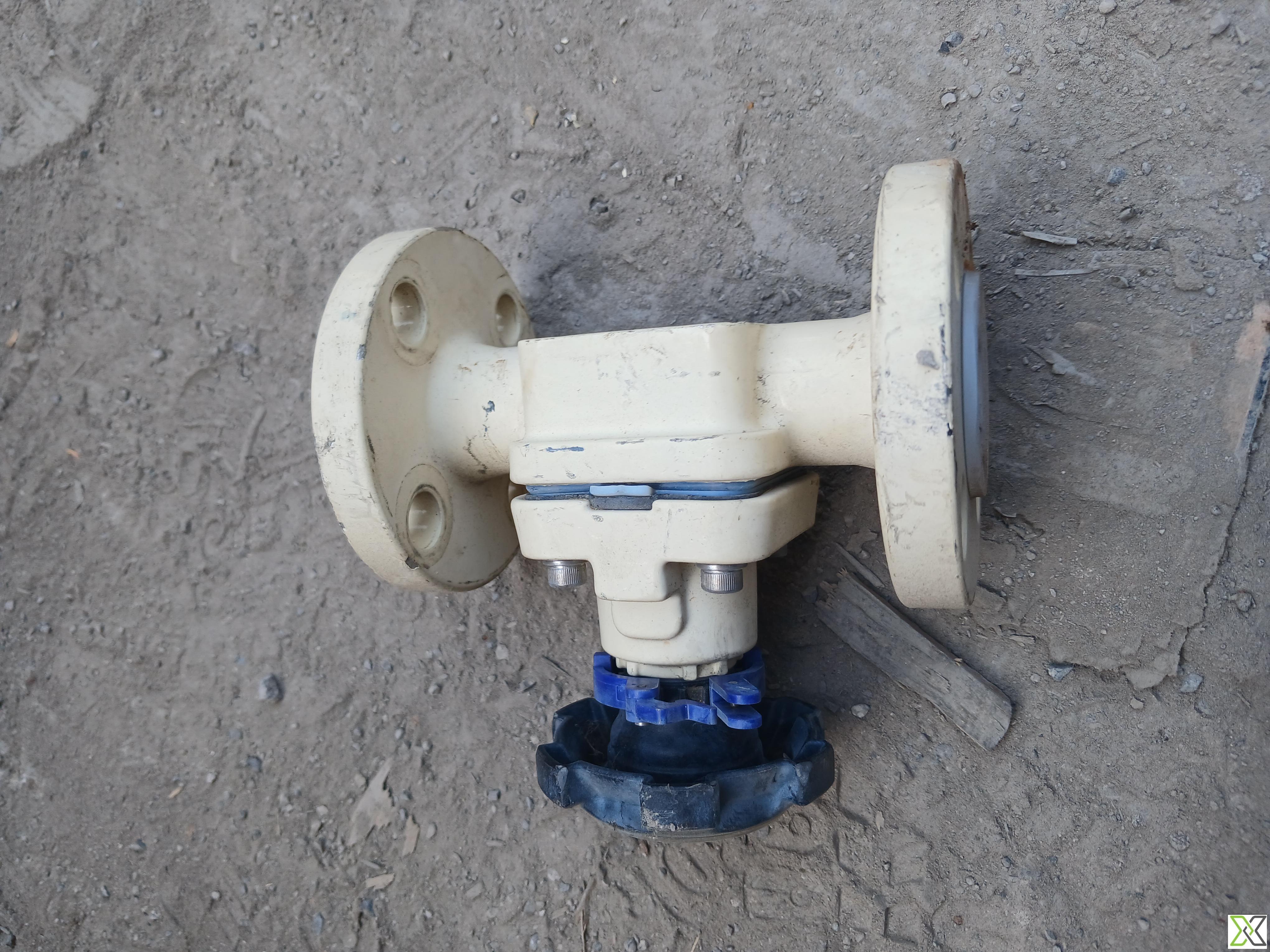

VITE LTX-06-0543 Lined Diaphragm Valve – Manual, DN20, 8 bar

ReflowX SKU: REF-7566

Product Details

Quantity

20
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

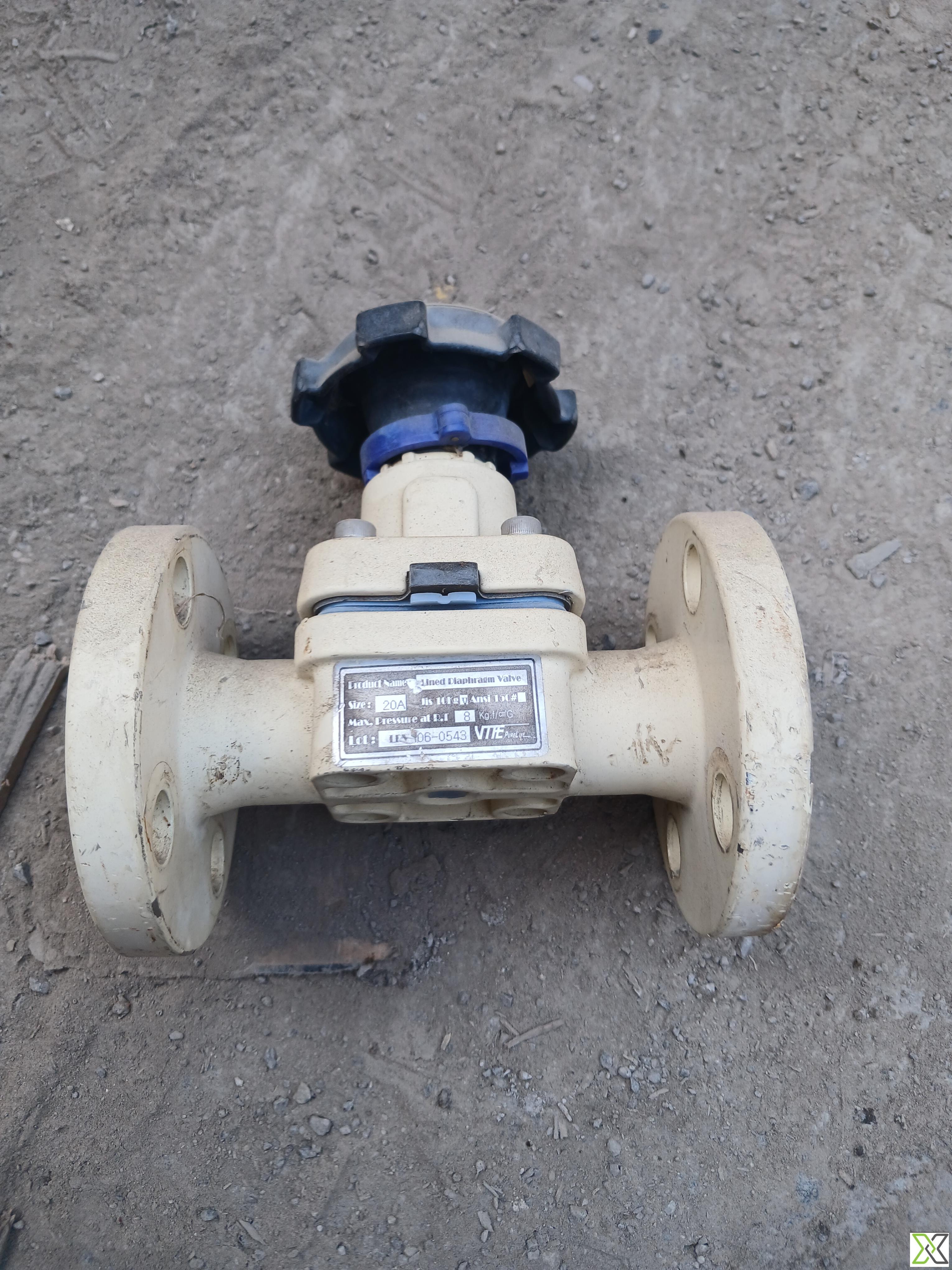

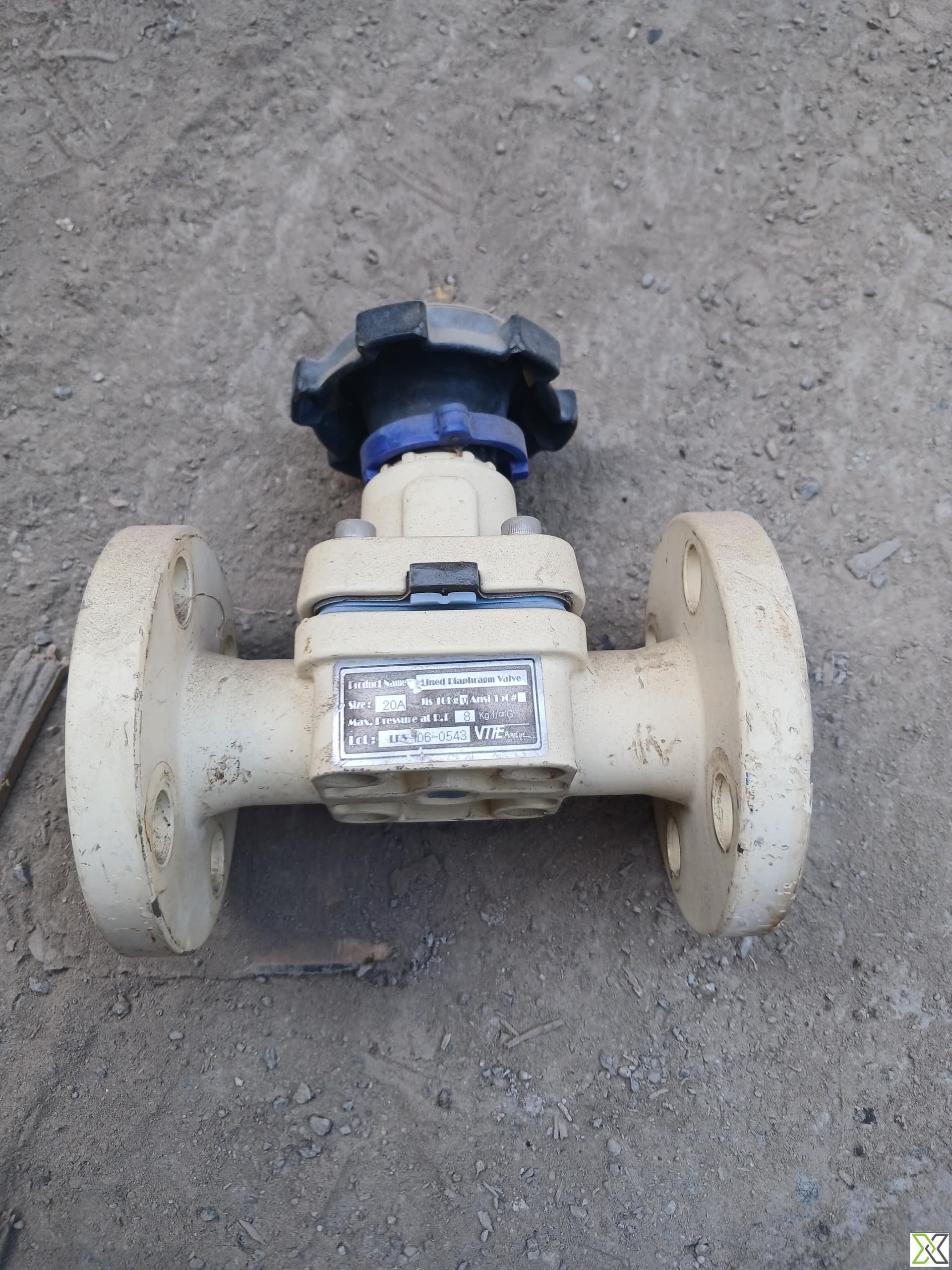

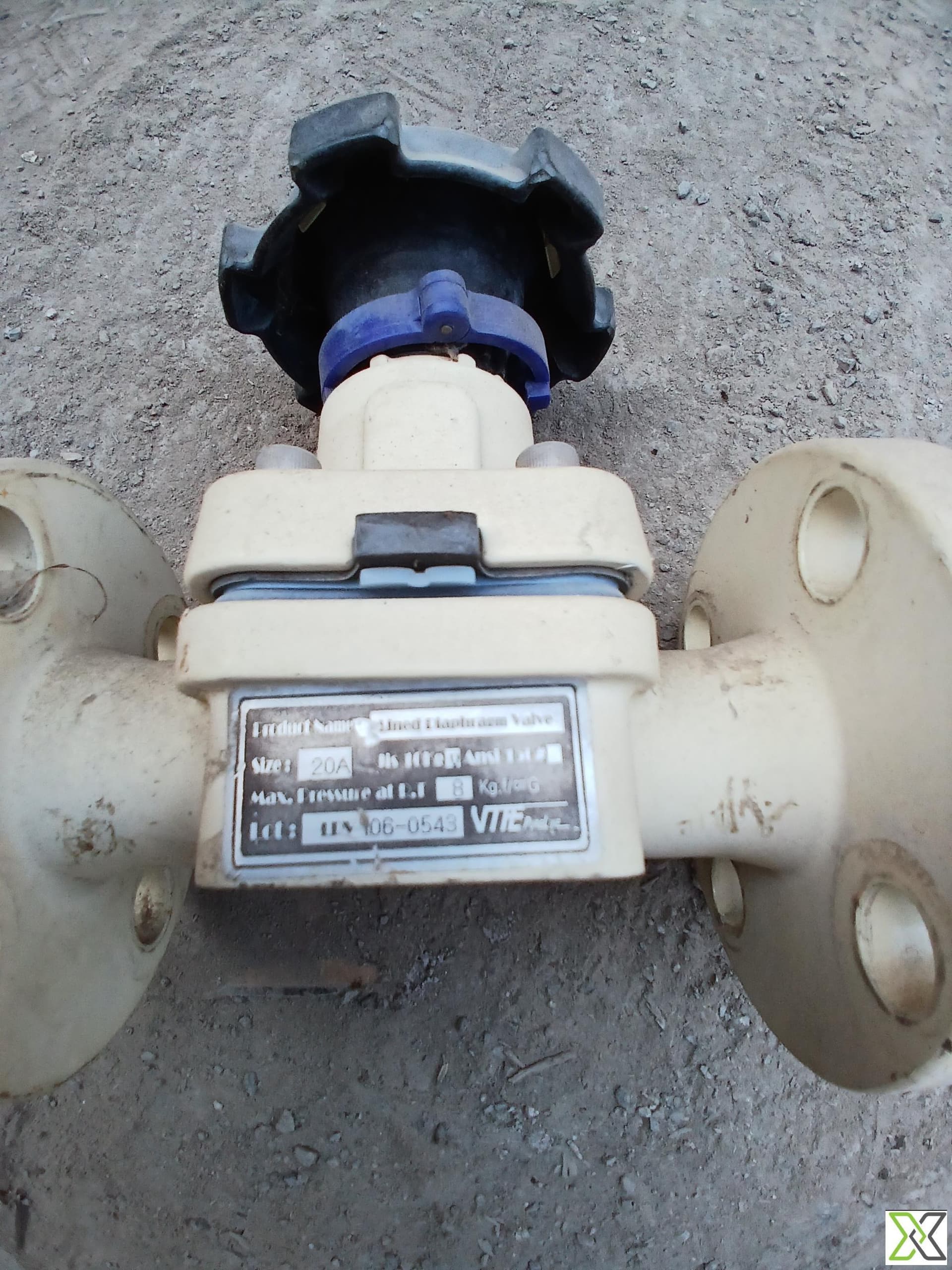

VITE (marked on the nameplate)
Equipment code

Get Quotation Whatsapp

Short Description

Manually operated diaphragm valve by VITE, model LTX-06-0543. Features corrosion-resistant lining, bubble-tight shutoff, and pressure rating of 8 bar. Ideal for aggressive fluid control in chemical and industrial applications.

Description

VITE LTX-06-0543 Lined Diaphragm Valve – Manual, DN20, 8 bar

The VITE LTX-06-0543 is a manually operated lined diaphragm valve engineered for demanding fluid handling applications involving corrosive, abrasive, or high-purity media. With a nominal size of 20A (approximately ¾" or DN20), this valve offers a maximum working pressure of 8 bar (116 psi) and is suitable for service temperatures ranging from -10°C to +150°C, depending on the lining and diaphragm materials.

Designed for long-term reliability, the valve features a cast iron or ductile iron body with a corrosion-resistant internal lining such as PTFE, FEP, or PFA, ensuring compatibility with aggressive chemicals. The diaphragm, typically made from EPDM, PTFE, or Butyl, forms a tight seal against the valve weir, achieving bubble-tight shutoff per EN 12266-1.

This valve includes a bolted bonnet design with a rising stem handwheel for manual linear operation. Its end connections are flanged, compatible with standards such as JIS B2220 or DIN EN 1092. It supports bidirectional flow with a preferred flow direction from under the diaphragm for optimal sealing and diaphragm longevity.

For flexibility in automation, the valve is convertible to pneumatic or electric actuator operation via a top-mounted bracket. This makes it suitable for future upgrades in semi-automated or fully automated process lines.

Specifications:

– Manufacturer: VITE
– Model / Tag Number: LTX-06-0543
– Valve Type: Lined Diaphragm Valve – Manually Operated
– Operation Type: Handwheel Operated – Rising Stem (Linear Motion)
– Nominal Size: 20A (Approx. ¾” / DN20)
– Pressure Rating: 8 bar (116 psi) / 8 kg/cm²
– Max Working Pressure: 8 bar at rated lining temperature
– Temperature Range: -10°C to +150°C (lining and diaphragm dependent)
– Lining Material: PFA, FEP, or PTFE (typical options)
– Body Material: Cast Iron or Ductile Iron with lining
– Diaphragm Material: EPDM, PTFE, or Butyl (common configurations)
– Seal Type: Diaphragm-to-Weir – Bubble Tight Shut-Off
– Leakage Class: Bubble Tight (per EN 12266-1)
– End Connections: Flanged (JIS B2220 or DIN EN 1092)
– Bonnet Design: Bolted Bonnet with Threaded Stem
– Mounting Orientation: Horizontal preferred; vertical acceptable
– Flow Direction: Bidirectional – Preferred under-diaphragm flow
– Actuation Option: Convertible to pneumatic or electric actuator mount
– Tag Number: LTX-06-0543

For further specifications or to inquire about this equipment and ReflowX's logistics services, please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Height	170 mm
Width	170 mm
Length	150 mm
Weight	3.5 to 5.5 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	Lined Diaphragm Valve, manually operated, flanged ends
Failure Action	Fail-in-position
Fluid Name	Corrosive or chemically aggressive fluids
Full Opening Valve	No
Nominal Diameter	20A (Approx. 3/4” / DN20)
Normal Operating Pressure	Up to 8 kg/cm²
Normal Operating Temperature	up to 100°C
Piping Class	JIS 10K
UNSPSC Code	40141600
