LNT Butterfly Valves – 2” to 24”

ReflowX SKU: REF-1048

Product Details

Quantity

50
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

LNT VALVES, USA
Equipment code

Get Quotation Whatsapp

Short Description

LNT USA butterfly valves, 2” to 24”, pressure rated Class 150 and PN16. Constructed with CF8M, DI, or WCB body and CF8M, PTFE, or bronze disc. Available in RF, wafer, and lug end connections.

Description

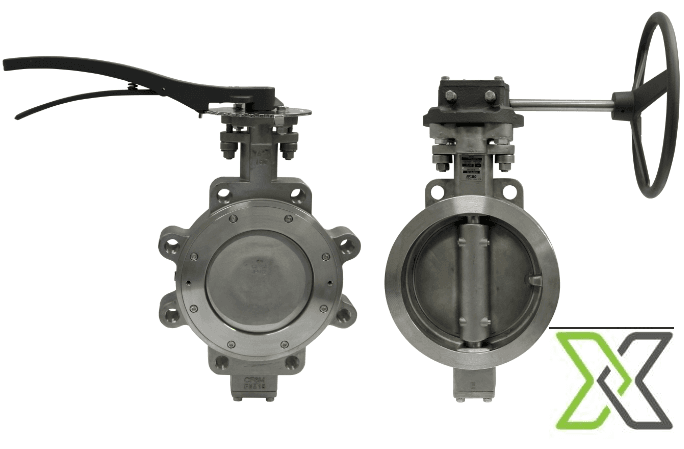

LNT Butterfly Valves – 2” to 24”, USA

LNT butterfly valves are versatile and efficient quarter-turn valves designed for fluid isolation and regulation in industrial piping systems. Manufactured in the USA, these valves are available in sizes from 2” to 24” and meet ANSI Class 150 and PN16 pressure standards. Body materials include CF8M stainless steel, ductile iron (DI), and WCB carbon steel, ensuring durability across a wide range of applications. Disc options include CF8M stainless steel, PTFE for chemical resistance, and bronze for marine or waterworks compatibility. With a choice of RF (raised face), wafer, and lug-type ends, these butterfly valves offer flexible installation. Suitable for use in water treatment, HVAC, oil & gas, chemical processing, and general industrial services, LNT valves provide reliable performance, minimal pressure drop, and ease of operation.

Specifications:

– Manufacturer: LNT Valves, USA
– Product Type: Butterfly Valve
– Size Range: 2” to 24”
– Pressure Ratings:
• ANSI Class 150
• PN16
– Body Material Options:
• CF8M (316 Stainless Steel)
• DI (Ductile Iron)
• WCB (Carbon Steel)
– Disc Material Options:
• CF8M Stainless Steel
• PTFE (Polytetrafluoroethylene)
• Bronze
– End Connections:
• RF (Raised Face Flanged)
• Wafer type
• Lug type
– Design Features:
• Bi-directional shutoff
• Resilient or PTFE-lined seat (optional)
• Blowout-proof stem design
• ISO 5211 actuator mounting flange
• Available in lever, gear, pneumatic, or electric actuation
– Compliance & Testing:
• API 598 (leakage testing)
• ASME B16.34
• MSS SP-67
• ISO 5211 (actuator mounting interface)
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	BUTTERFLY VALVES
Manufacturer Name	LNT VALVES, USA
Height	230 mm to 920 mm
Width	150 mm - 770 mm
Length	43 mm to 350 mm
Weight	7 kg to 280 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	ASME B16.34
Failure Action	Fails open or closed depending on actuator type
Fluid Name	Water, steam, oil, chemicals, slurries, compressed air
Full Opening Valve	No – quarter-turn valve with flow restriction from the disc in open position
Nominal Diameter	2” to 24”
Normal Operating Pressure	16 bar
Normal Operating Temperature	-10°C to +230°C
Piping Class	Class 150 / DIN PN16
UNSPSC Code	40141600
