NEWAY Manual Gate Valve – Class 300, Stainless Steel CF8M

ReflowX SKU: REF-4476

Product Details

Quantity

4
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

NEWAY
Equipment code

Get Quotation Whatsapp

Short Description

Manual gate valve by NEWAY, ANSI Class 300 rated, stainless steel construction (CF8M), designed per API 600 / ASME B16.34 standards for high-pressure applications.

Description

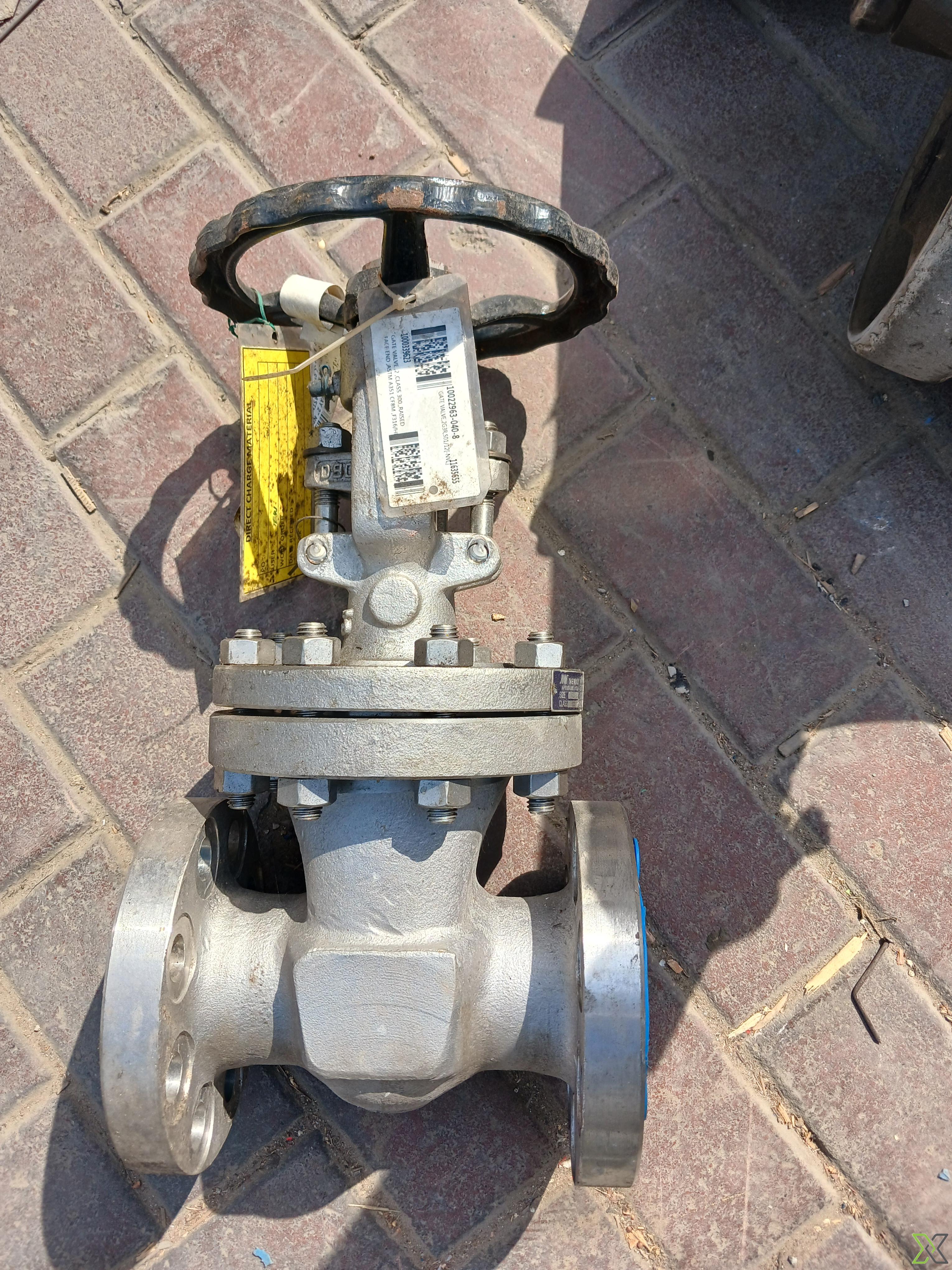

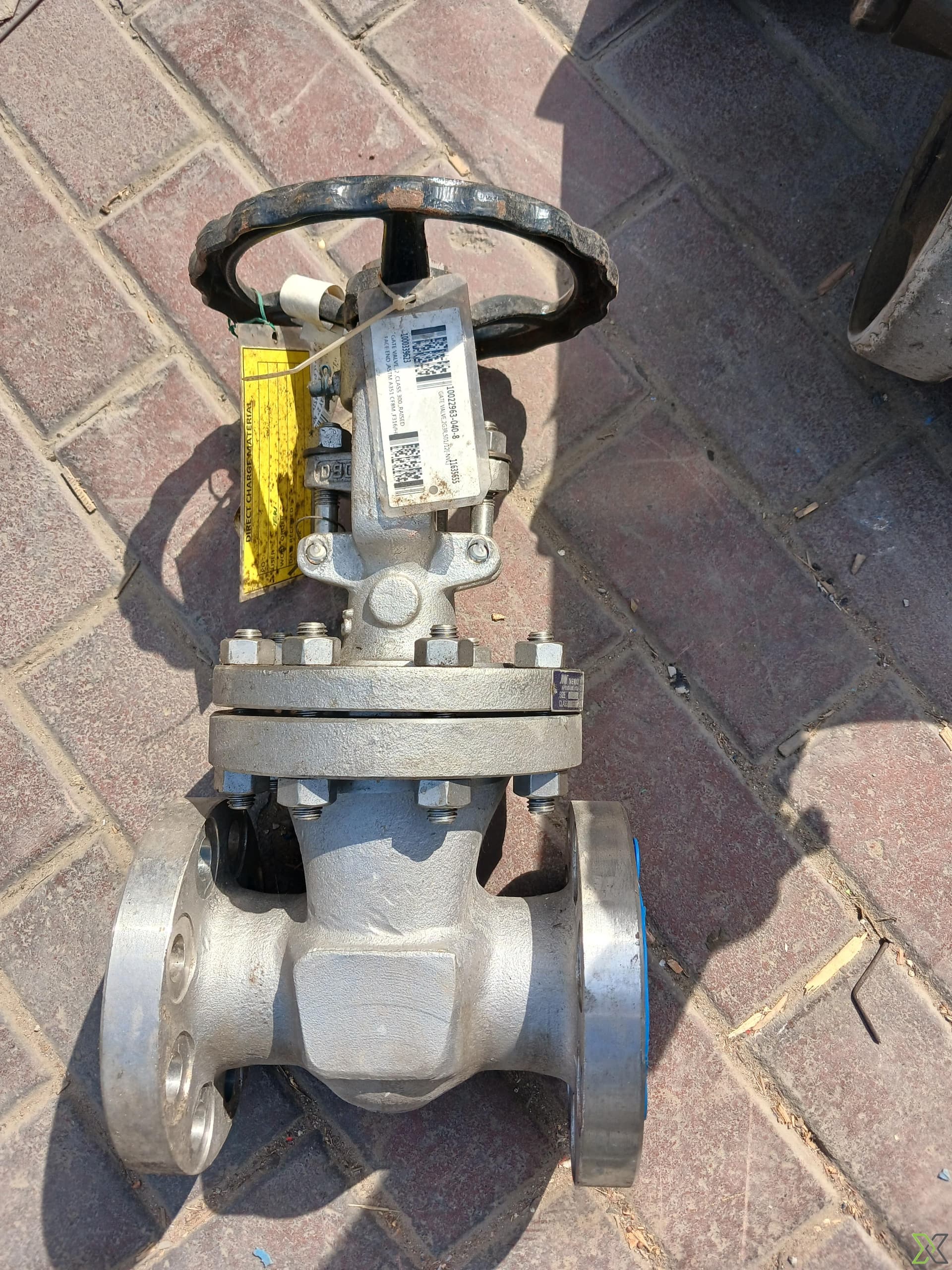

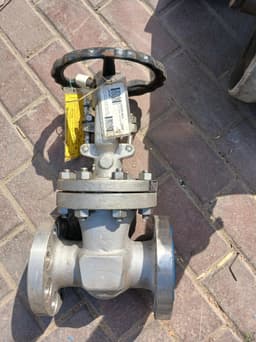

NEWAY Manual Gate Valve – Class 300, Stainless Steel CF8M

The NEWAY Manual Gate Valve – Class 300 is a robust isolation valve engineered for reliable shutoff performance in demanding process environments. Designed and manufactured in accordance with API 600 and ASME B16.34 standards, this valve is constructed from CF8M stainless steel (equivalent to SS316) for enhanced corrosion resistance and durability under pressure.

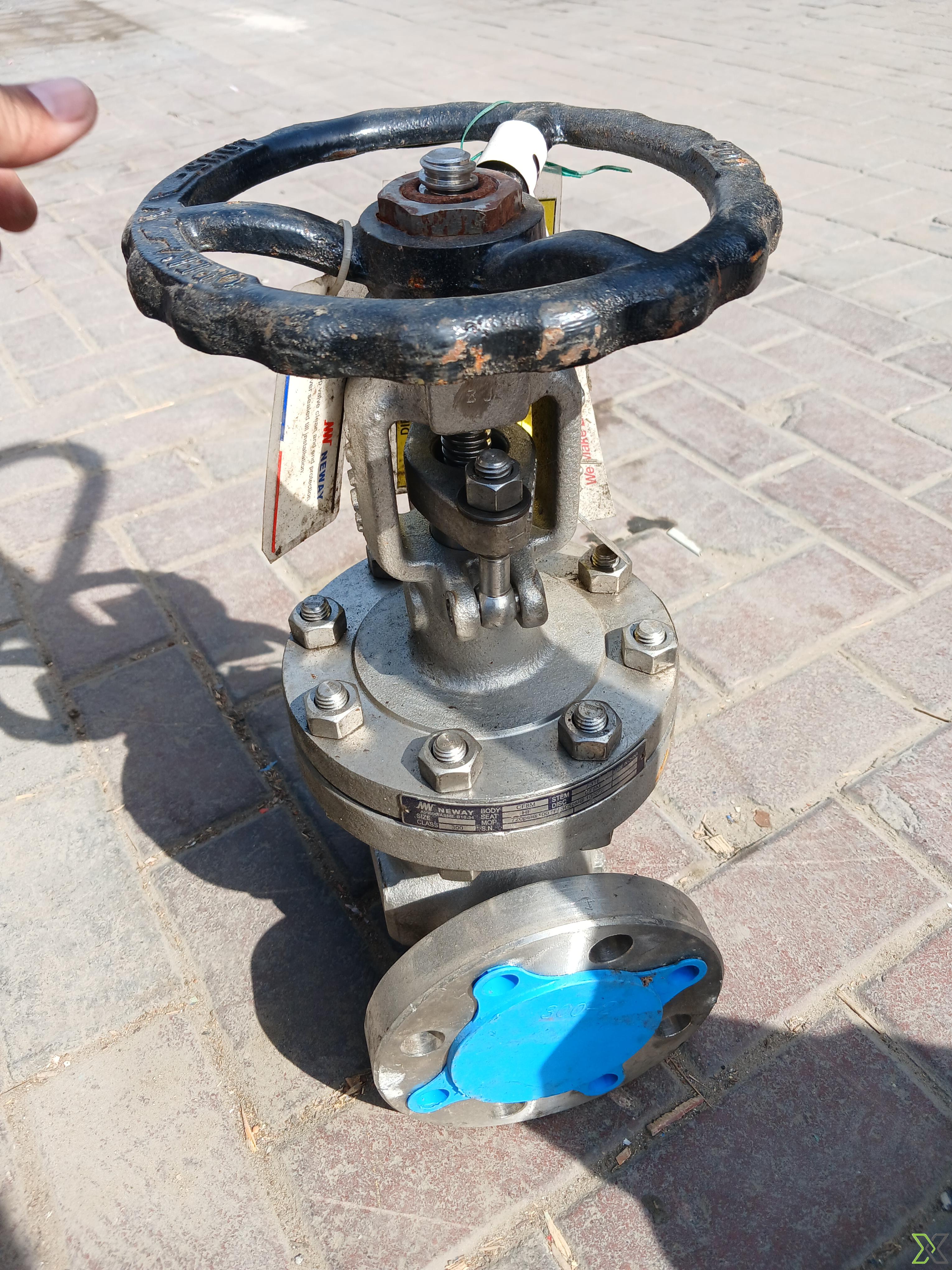

The valve features a manual handwheel operator and utilizes a hard-faced (HF) seat to ensure long-lasting sealing performance. The F316 stainless steel stem offers superior mechanical strength and resistance to wear and corrosion, while the CF8M disc contributes to reliable sealing in both standard and elevated temperatures.

Suitable for moderate to high-pressure service, this valve handles up to 720 psi at 100°F and 365 psi at 1000°F, making it an ideal choice for steam, hydrocarbon, and chemical service pipelines. Though the exact size is not specified, the body appears to be within the 2" to 3" range based on visual assessment.

Specifications:

– Valve Type: Manual Gate Valve
– Manufacturer: NEWAY
– Size: Not specified (estimated 2"–3")
– Pressure Class: ANSI Class 300
– Design Standards: API 600 / ASME B16.34
– End Connection: Flanged (not explicitly stated, but implied by class and design)

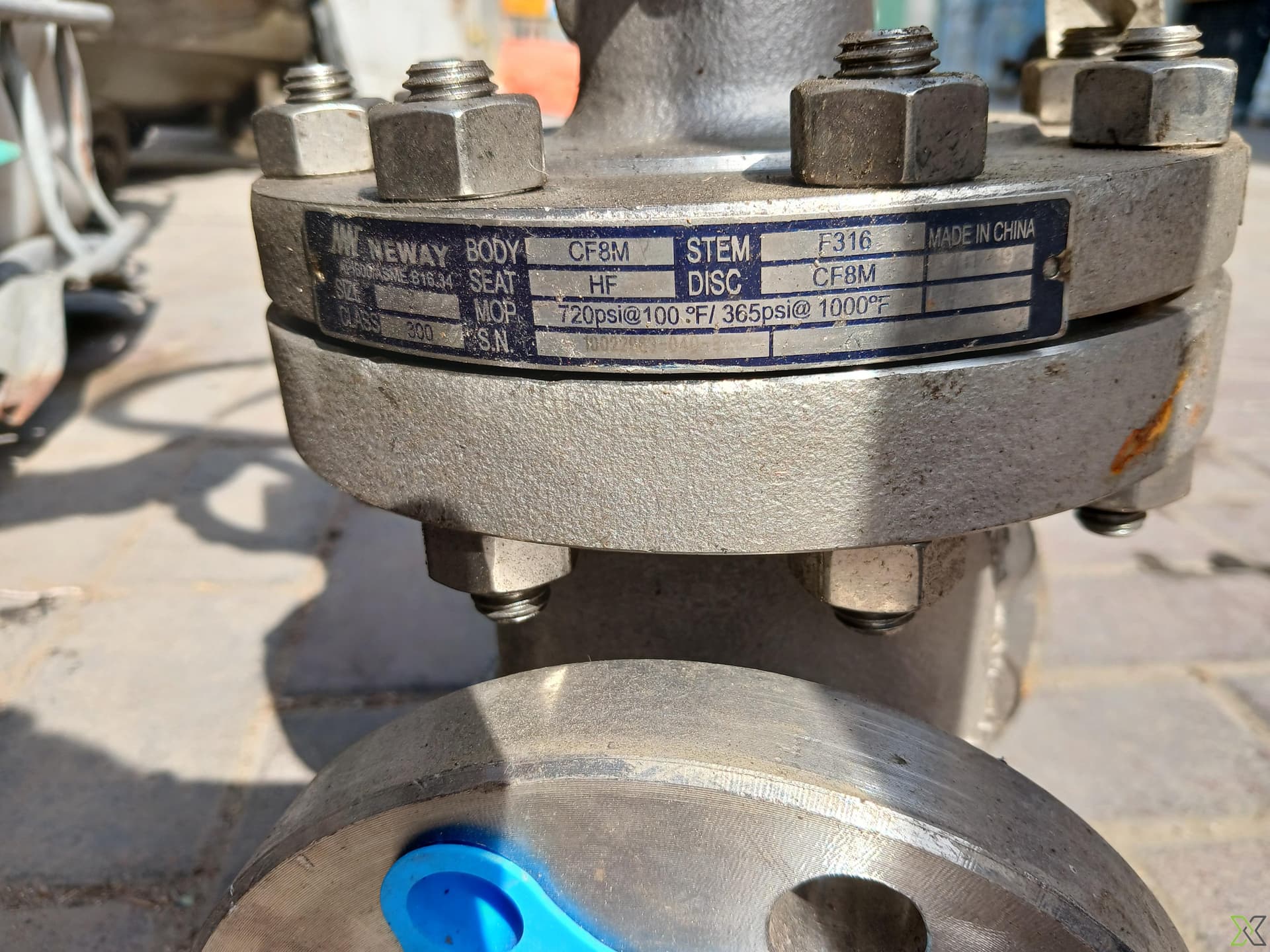

– Maximum Operating Pressure (MOP):
– 720 psi @ 100°F
– 365 psi @ 1000°F
– Body Material: CF8M (Stainless Steel – equivalent to SS316)
– Seat Material: Hard-Faced (HF)
– Stem Material: F316 Stainless Steel
– Disc Material: CF8M
– Operator: Manual Handwheel
– Country of Origin: Made in China
– Serial Number: Not fully visible
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	300 (ANSI Pressure Class)
Height	450–800 mm
Width	150–400 mm
Length	approx. 229 mm
Weight	~22 kg
Color	Blue
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	Rising Stem, Bolted Bonnet, Solid or Flexible Wedge Gate Valve
Failure Action	Holds position until manually operated
Fluid Name	Water, Steam, Natural Gas, Air,Oil, Process Chemicals
Full Opening Valve	Yes
Nominal Diameter	2” to 24”
Normal Operating Pressure	740 psi (51 bar)
Normal Operating Temperature	-29°C to +425°C
Piping Class	ASME B16.5
UNSPSC Code	40141600
