C.U.M. Srl WG 65 Manual Rotary Actuator with Flanged High-Torque Rotary Valve

ReflowX SKU: REF-6295

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

C.U.M. Srl
Equipment code

Get Quotation Whatsapp

Short Description

Quarter-turn manual rotary actuator (WG 65) with 650 kg·m torque capacity, manufactured by C.U.M. Srl, Italy. Designed for high-torque ball or plug valve applications, featuring flanged connection and manual gearbox operation.

Description

C.U.M. Srl WG 65 Manual Rotary Actuator with Flanged High-Torque Rotary Valve

The C.U.M. Srl WG 65 is a heavy-duty, gear-operated rotary actuator engineered for operating high-torque rotary valves such as ball or plug valves in industrial pipelines. Manufactured in Italy in 2011, this actuator offers a quarter-turn (90°) rotation with a total of 56 handwheel revolutions required to complete a full open/close cycle. The unit delivers a maximum output torque of 650 kg·m (approximately 6376 Nm), suitable for demanding valve operation conditions.

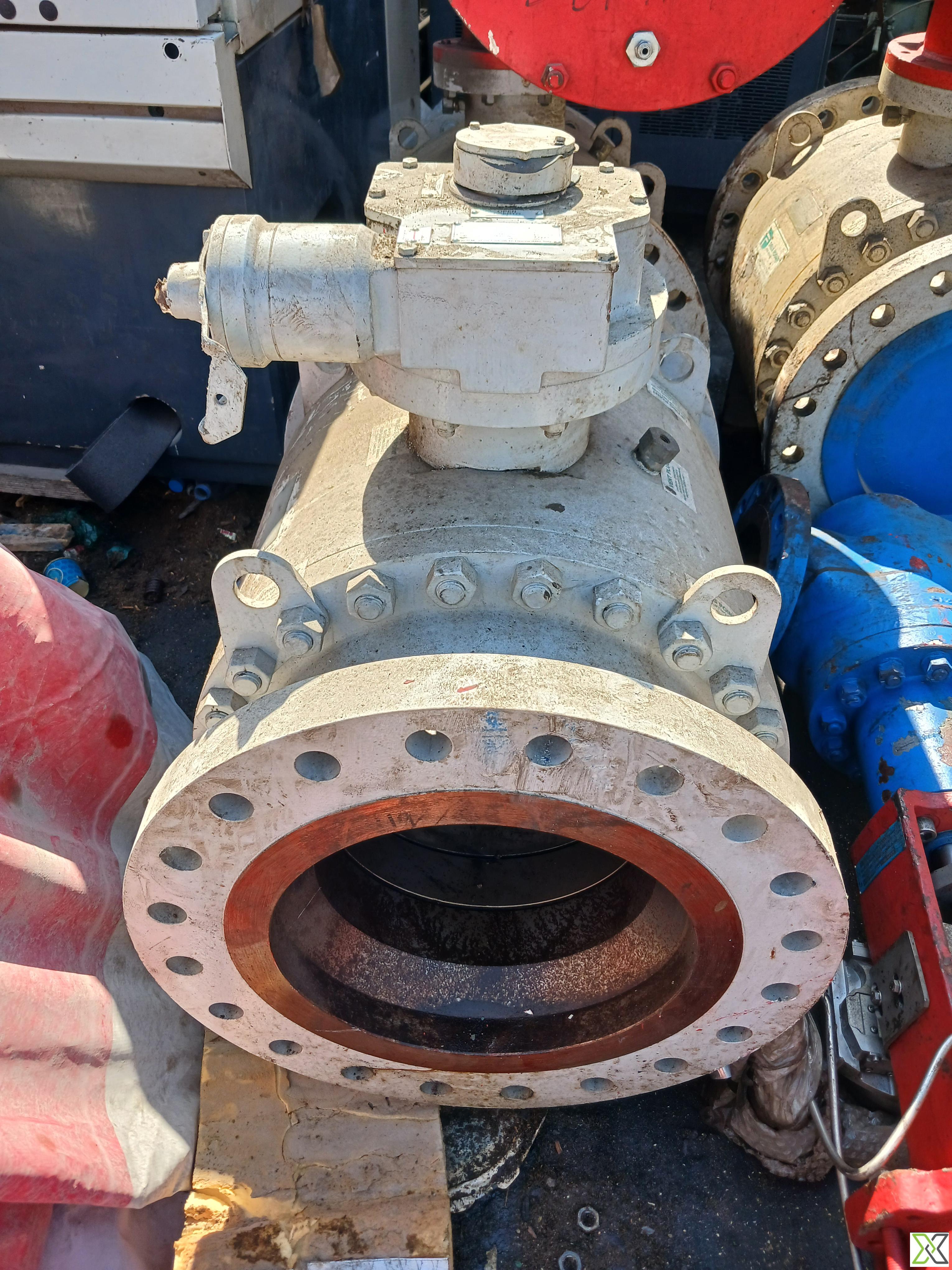

The actuator is paired with a flanged rotary valve—likely a ball or plug type—designed for manual operation. The valve body is presumed to be made of cast carbon steel or stainless steel and is externally coated in white for protection. Nominal valve bore size is estimated between 10" and 12", based on the flange dimensions. Rotation status is clearly indicated on the actuator with "OPEN / APERTO" and "CLOSE / CHIUDE" labeling for operational safety.

This assembly is ideal for isolating or regulating flow in high-pressure systems where electric or pneumatic actuation is not feasible, and manual control with high mechanical advantage is required.

Specifications:

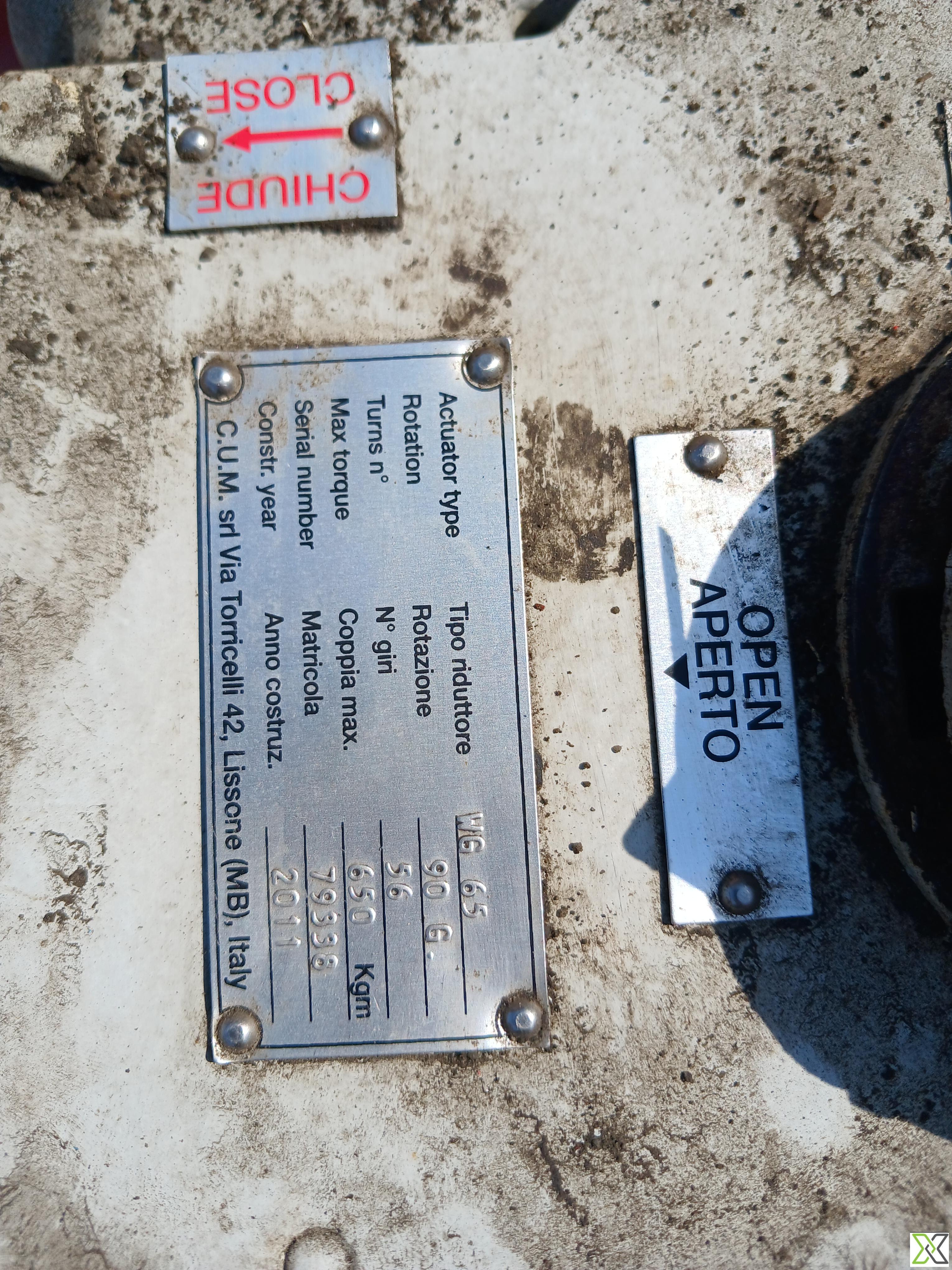

– Manufacturer: C.U.M. Srl, Via Tomicelli 42, Lissone (MB), Italy
– Model / Type: WG 65
– Serial Number: 79336
– Year of Manufacture: 2011
– Actuator Type: Manual gear-operated rotary actuator
– Operation: Quarter-turn (90° rotation)
– Number of Turns (Handwheel): 56 revolutions (full open/close)
– Maximum Output Torque: 650 kg·m (≈6376 Nm)
– Actuation Method: Manual gearbox
– Design Application: High-torque rotary valve actuation
– Valve Type: Likely ball valve or plug valve
– Connection Type: Flanged ends
– Valve Size: Approx. 10"–12" (nominal bore)
– Valve Material: Likely cast carbon steel or stainless steel
– External Coating: White industrial protective finish
– Rotation Indicators:
– Open: “OPEN / APERTO”
– Closed: “CLOSE / CHIUDE”
– Mounting: Gearbox directly coupled to valve stem

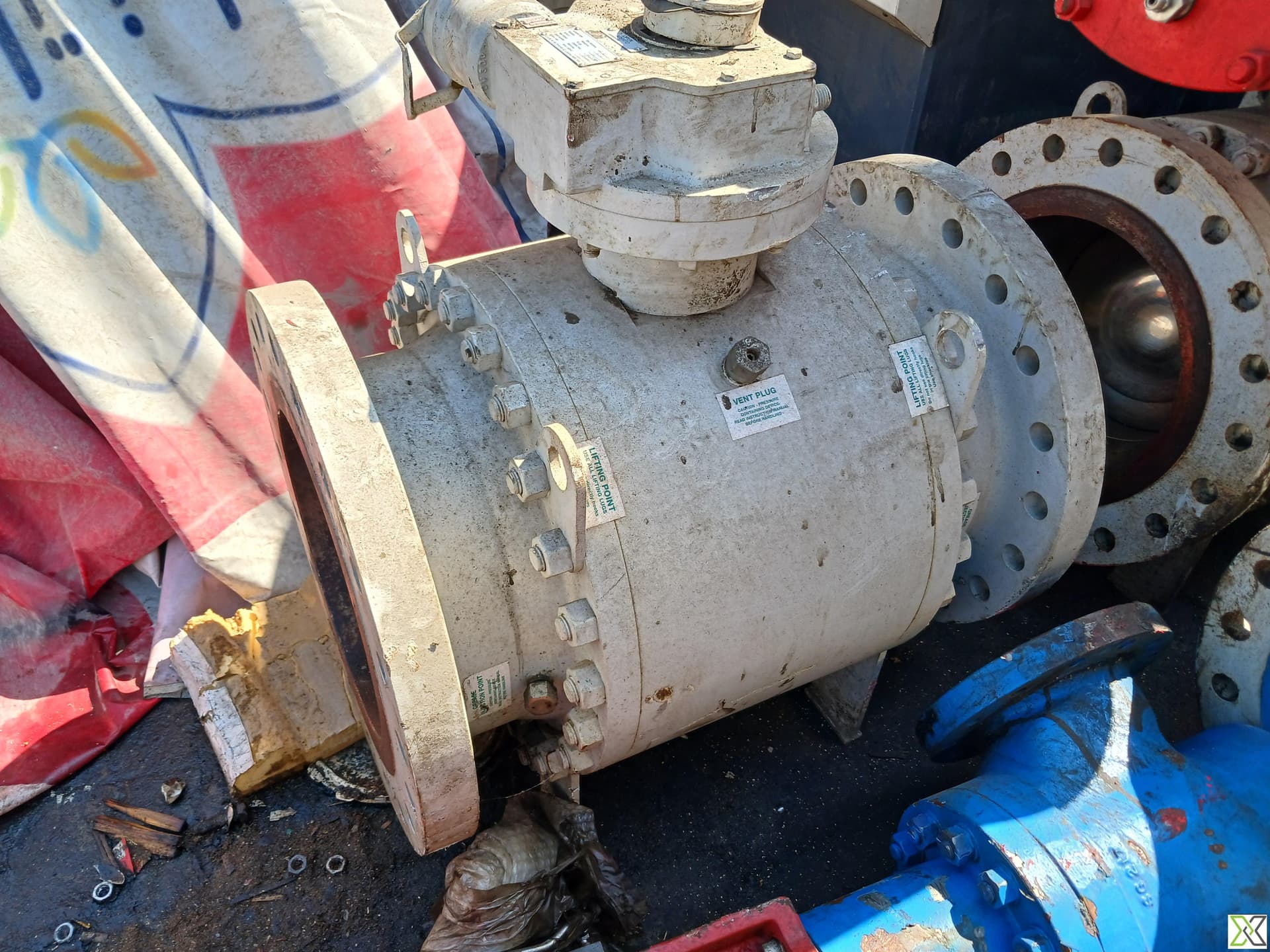

– Brand Label: Possibly labeled "VERT PLUG" (manufacturer unconfirmed)
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	WG 65
Height	300–400 mm
Width	250–350 mm
Length	200–300 mm
Weight	20 to 50 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	Direct mounting to valve shaft or via coupling
Nominal Diameter	2" to 12" in nominal diameter
Normal Operating Pressure	up to 40 bar
Normal Operating Temperature	-20°C to +80°C
Piping Class	Class 150 to Class 600
UNSPSC Code	40141600
