3-Piece Ball Valve – Series 5000/6000 | Flow-Tek by Bray

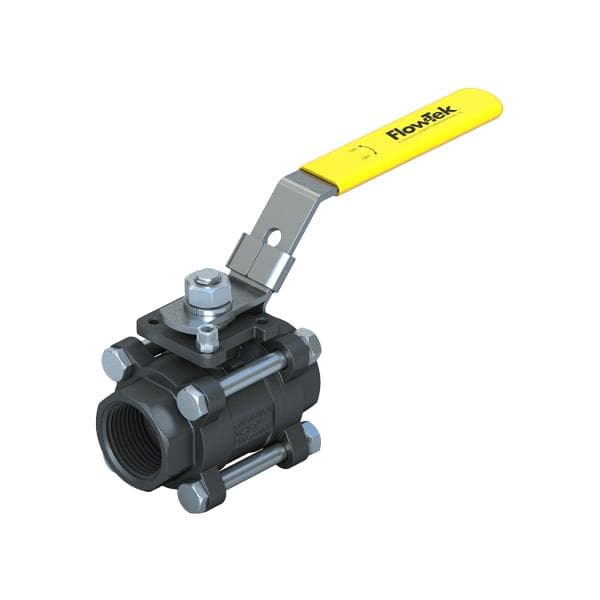

The Flow-Tek Series 5000/6000 3-Piece Ball Valve is engineered for durable, high-cycle, and leak-free operation across a wide range of industrial applications. This valve features a three-piece body construction that allows in-line servicing and cleaning without disturbing pipeline connections. Available with threaded or socket weld end connections, this series provides design flexibility for piping systems.

Constructed from forged or bar stock materials, the valve body ensures superior strength and pressure tolerance. A full port design minimizes pressure drop, while the live-loaded stem packing and blowout-proof stem enhance operational safety. These valves are compatible with manual or automated actuation and feature an ISO 5211 direct mounting pad for ease of automation.

Designed for reliability and longevity, Series 5000/6000 valves are widely used in refineries, chemical plants, water treatment facilities, and general industrial applications.

Specifications:

– Valve Type: 3-Piece Ball Valve
– Series: Flow-Tek 5000 (Threaded) / 6000 (Socket Weld)
– Size Range: ¼" to 4" (DN8 to DN100)
– Body Material: WCB Carbon Steel, 316 Stainless Steel
– Seat Material Options: PTFE, RTFE, UHMWPE, Devlon, PEEK
– Pressure Rating:
 • Up to 1000 psi CWP (¼"–2")
 • Up to 600 psi CWP (2½"–4")
– Temperature Range: -50°F to 450°F (-46°C to 232°C)
– End Connections:
 • Series 5000: NPT Threaded (ASME B1.20.1)
 • Series 6000: Socket Weld (ASME B16.11)
– Port Type: Full Port
– Mounting: ISO 5211 Direct Mount
– Design Features:
 • Blowout-proof stem
 • Live-loaded packing
 • In-line repairable design
– Leak Test Standard: API 598
– Certifications/Standards:
 • ISO 5211
 • NACE MR0175 (Optional for sour service)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
