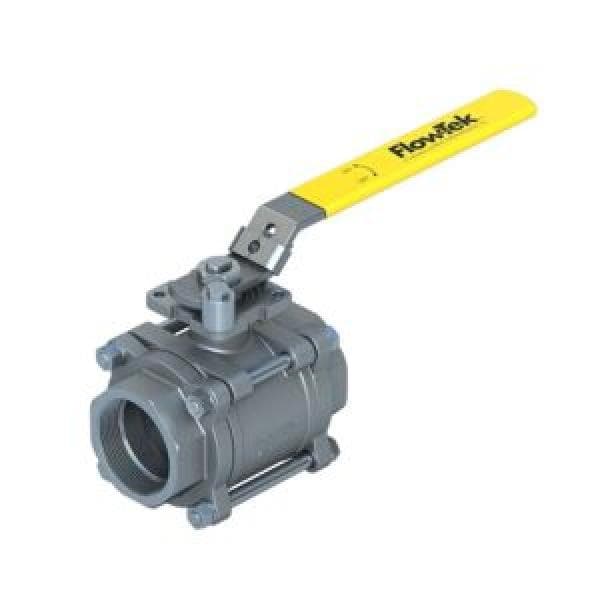

3-Piece Ball Valve – Series 7000/8000 | Bray, NPS ¼–12, 1000 psi CWP Rated

The Bray Series 7000/8000 3-Piece Ball Valve is engineered for demanding industrial applications requiring reliable shut-off, easy maintenance, and high pressure-temperature performance. Available in sizes from ¼” to 12” (DN 8 to 300), these valves are built with a three-piece body design, allowing for simple inline maintenance without removing the valve from the pipeline.

Ideal for use in industries such as chemical processing, oil and gas, power generation, and water treatment, the Series 7000/8000 features a full-port design for unrestricted flow, reducing pressure drops and energy loss. The precision-machined ball and seats ensure leak-tight shut-off, while the live-loaded stem packing minimizes fugitive emissions.

Manufactured to meet stringent performance criteria, this valve line offers superior durability with a wide temperature range from -50°F to 550°F (-46°C to 287°C), and pressure ratings up to 1000 psi CWP (69 Bar) for smaller sizes.

Specifications:

– Valve Type: 3-Piece Ball Valve
– Series: 7000 / 8000
– Size Range: NPS ¼” to 12” / DN 8 to 300
– Pressure Rating:
 • NPS ¼" to 4" (DN 8 to 100): 1000 psi CWP (69 Bar)
 • NPS 6" to 12" (DN 150 to 300): 400 psi CWP (27 Bar)
– Temperature Range: -50°F to 550°F (-46°C to 287°C)
– Body Design: 3-piece construction
– Port Type: Full port (standard)
– End Connections: Threaded, Socket Weld, Butt Weld, or Flanged (varies by model)
– Body Material: Carbon Steel, Stainless Steel (varies by configuration)
– Seat Materials: PTFE, RPTFE, or other available options
– Stem Design: Blowout-proof with live-loaded stem packing
– Mounting Pad: ISO 5211 mounting pad for actuator compatibility
– Operation Modes: Manual (lever), Pneumatic, Electric
– Compliance: API 608, ASME B16.34
– Testing Standards: API 598

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
