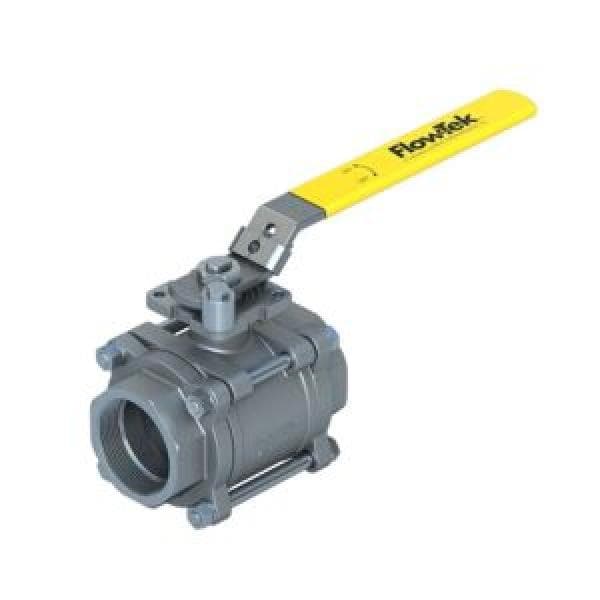

3-Piece Ball Valve – Triad Series, Threaded & Welded Ends, Full Port | Flow-Tek by Bray

Product Details

Quantity

100
Availability (Lead Time)

6-10 Weeks
Product Location

United Arab Emirates
Condition
OEM

Bray International
Equipment code

CFIHOS-30000649

Get Quotation Whatsapp

Short Description

High-performance 3-piece Triad Series ball valve by Flow-Tek, engineered for durability with full port design, ISO direct mounting, and fire-safe, anti-blowout stem. Ideal for critical shutoff in industrial applications.

Description

3-Piece Ball Valve – Triad Series, Threaded & Welded Ends, Full Port | Flow-Tek by Bray

The Flow-Tek Triad Series 3-Piece Ball Valve is a premium industrial valve solution designed for maximum performance, reliability, and serviceability. Manufactured with precision-engineered components and robust materials, the Triad Series offers a full port design for unrestricted flow and reduced pressure loss.

This valve is ideal for applications requiring frequent inline maintenance, featuring a 3-piece body design that allows quick disassembly without disturbing the pipeline. The anti-blowout stem, live-loaded packing system, and ISO 5211 mounting pad provide safe and versatile operation for manual or automated actuation.

Threaded and socket weld end connections ensure secure installation across a broad range of industrial processes, from oil & gas and chemical to water treatment and food service. The Triad Series complies with global standards and is available with fire-safe and anti-static features.

Specifications:

– Valve Type: 3-Piece Full Port Ball Valve
– Series: Triad
– Size Range: ¼” to 4” (DN8 to DN100)
– Body Material: Stainless Steel (CF8M) or Carbon Steel (WCB)
– Port Type: Full Bore
– End Connections:
• Threaded Ends (NPT per ASME B1.20.1)
• Socket Weld Ends (per ASME B16.11)
– Pressure Rating:
• 1000 psi CWP (sizes ¼” to 2”)
• 600 psi CWP (sizes 2½” to 4”)
– Temperature Range: -50°F to 450°F (-46°C to 232°C)
– Design Features:
• ISO 5211 direct mount pad for actuation
• Blowout-proof stem design
• Dual stem sealing with live-loaded adjustable packing
• Fire-safe design available (API 607)
• Anti-static grounding devices (optional)
• In-line repairable body construction
– Ball Material: 316 Stainless Steel (standard)
– Seat Material: PTFE (other options available)
– Certifications & Standards:
• API 607 Fire-Safe (optional)
• NACE MR0175/ISO 15156 (optional for sour service)
• API 598 leak test compliance
– Operation: Manual handle (lockable), Pneumatic or Electric Actuator Ready
– Applications: Oil & Gas, Petrochemical, Water Treatment, Chemical Processing, Food & Beverage, HVAC

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
