Bidirectional Knife Gate Valve – Series 762, Heavy-Duty Valve with Replaceable Sleeves

Product Details

Quantity

100
Availability (Lead Time)

6-10 Weeks
Product Location

United Arab Emirates
Condition
OEM

Bray International
Equipment code

CFIHOS-30000649

Get Quotation Whatsapp

Short Description

Heavy-duty bidirectional knife gate valve with dual elastomer sleeves for superior slurry isolation and bubble-tight sealing. Ideal for mining and industrial slurries.

Description

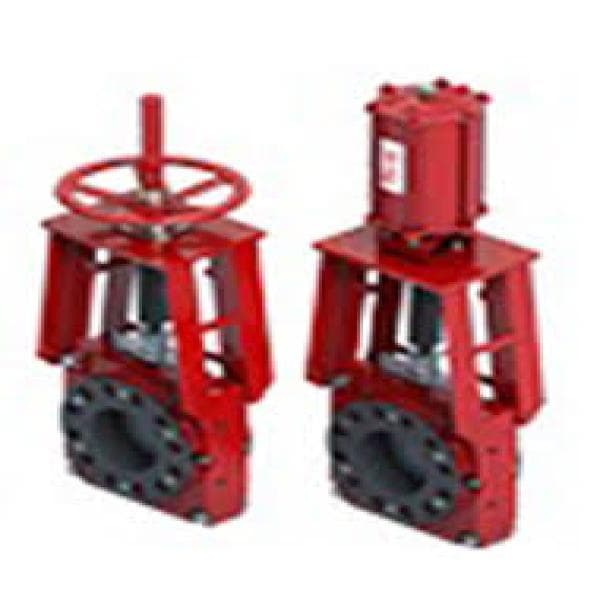

Bidirectional Knife Gate Valve – Series 762, Heavy-Duty Valve with Replaceable Sleeves

The Series 762 Bidirectional Knife Gate Valve is designed for extremely abrasive and high-solids slurry applications, where traditional knife gates may wear out quickly. This valve features integral, full-bore replaceable rubber sleeves that provide zero-leakage shutoff in both directions, even under high pressure or vacuum.

Its flanged body design enhances pipeline compatibility and ensures reliable installation. The valve is suitable for demanding services in industries such as mining, wastewater, chemical, and power plants, where scale, grit, and solids are present.

Specifications:

– Valve Type: Bidirectional Knife Gate Valve
– Model Series: 762
– Sizes: 2" to 48" (DN50 to DN1200)
– Body Material: Cast iron, ductile iron, carbon steel, or stainless steel
– Gate Material: 304/316 stainless steel or alloy options
– Seat Type: Dual field-replaceable elastomer sleeves (EPDM, natural rubber, nitrile, etc.)
– Sealing: Bubble-tight bidirectional shutoff
– End Connections: Full face flanged ends per ANSI B16.5 Class 150 or EN1092
– Pressure Rating: Up to 150 psi (10 bar)
– Temperature Range: -10°C to +100°C (depending on elastomer type)
– Actuation Options:
– Manual (handwheel or chainwheel)
– Pneumatic cylinder
– Hydraulic cylinder
– Electric actuator
– Features:
– No cavity between gate and body – prevents media buildup
– Replaceable sleeves allow inline maintenance
– Non-rising stem for compact installation
– Corrosion-resistant coatings available
– Designed for long life in abrasive service
– Application Media: Mineral slurry, tailings, grit, sand, pulp, ash, thick fluids

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
