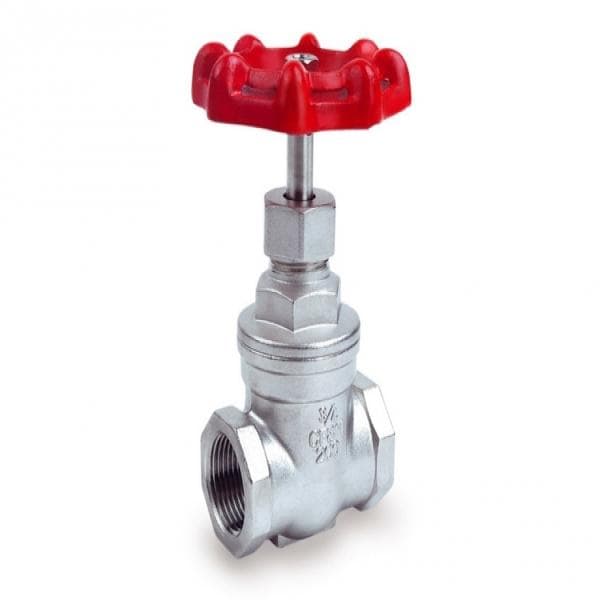

BT-GA Gate Valve – 200psi, Threaded Ends, ASTM-A351-CF8M, Full Port, Handwheel Operated

Product Details

Quantity

100
Availability (Lead Time)

4-6 Weeks
Product Location

Taiwan
Condition

New
OEM

Bola-Tek
Equipment code

CFIHOS-30000649

Get Quotation Whatsapp

Short Description

Manual gate valve rated at 200psi with threaded ends and full port design. Constructed from ASTM-A351-CF8M stainless steel with a wedge disc and non-rising stem for low-pressure fluid isolation.

Description

BT-GA Gate Valve – 200psi, Threaded Ends, ASTM-A351-CF8M, Full Port, Handwheel Operated

The BT-GA Gate Valve is designed for effective shutoff and isolation of fluid flow in low-pressure systems. Featuring a full port design, the valve minimizes flow restriction, making it ideal for applications requiring unobstructed passage of media such as water, oil, or gas. The internal components include a wedge disc with an integral seat, delivering reliable sealing performance under moderate operational demands.

The valve body is constructed from corrosion-resistant ASTM-A351-CF8M stainless steel, ensuring long service life in challenging environments. A non-rising stem and screwed bonnet design offer a compact and robust structure, suitable for tight spaces and frequent operation. Manual handwheel operation provides precise and intuitive control, making the BT-GA a dependable solution in both industrial and commercial fluid systems.

Specifications:

– Valve Type: Gate valve
– Size Range: 1/2" to 3"
– Pressure Rating: 200psi
– Temperature Range: Up to 230°C (typical for CF8M construction)
– End Connections: Threaded (NPT)
– Design: Full port for low flow resistance
– Disc Type: Wedge disc with integral seat
– Stem Type: Non-rising stem
– Bonnet: Screwed bonnet
– Operation: Manual, handwheel operated
– Material: ASTM-A351-CF8M (stainless steel)
– Applications: Water systems, oil and gas lines, commercial plumbing, chemical processing, low-pressure industrial service
