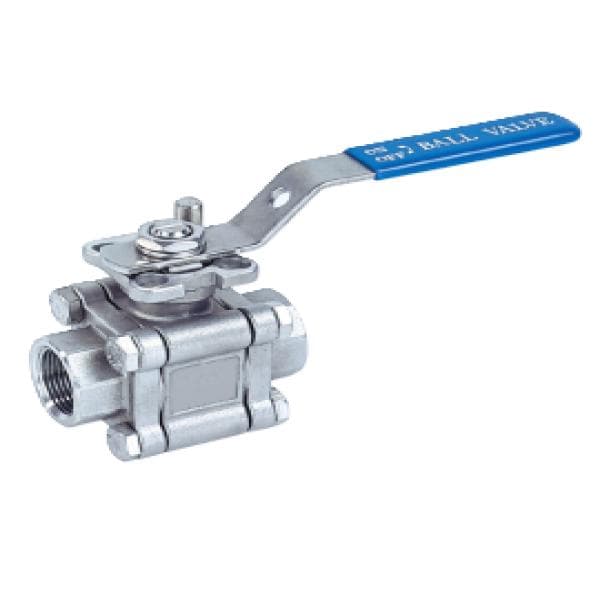

BT-V3WMH 3-Piece Ball Valve – Direct Mounting Pad, 3000–2000 PSI, Threaded/Weld Ends

Product Details

Quantity

100
Availability (Lead Time)

4-6 Weeks
Product Location

Taiwan
Condition
OEM

Bola-Tek
Equipment code

CFIHOS-30000649

Get Quotation Whatsapp

Short Description

Three-piece ball valve with ISO 5211 direct mounting pad, fire-safe certified to API 607, rated up to 3000 PSI. Features full and reduced port configurations, blow-out proof stem, and multi-connection options.

Description

BT-V3WMH 3-Piece Ball Valve – Direct Mounting Pad, 3000–2000 PSI, Threaded/Weld Ends

The BT-V3WMH 3-Piece Ball Valve is a highly adaptable valve engineered for medium to high-pressure applications in industrial environments. Designed with performance and safety in mind, this valve supports operating pressures up to 3000 PSI for smaller sizes (up to 1") and 2000 PSI for sizes up to 4". The valve’s encapsulated body enhances durability, while the API 607 fire-safe certification ensures safe performance in hazardous conditions.

With a direct ISO 5211 mounting pad, the BT-V3WMH is actuator-ready for seamless automation. The valve is available in full port configuration for smaller sizes and reduced port for larger sizes, providing an optimized balance between flow and pressure drop. It offers installation flexibility with threaded, socket weld, and butt weld connection options.

A blow-out proof stem and a locking device further enhance operational safety and control, while the handle-less design helps minimize installation footprint in compact systems. This valve is ideal for applications requiring precision, reliability, and compliance with strict industry standards.

Specifications:

– Valve Type: 3-piece ball valve
– Model: BT-V3WMH
– Size Range: 1/4” to 4”
– Port Type:
• Full port: 1/4” to 1”
• Reduced port: 1.1/4” to 4”
– Pressure Rating:
• Up to 3000 PSI (PN200) for 1” and below
• Up to 2000 PSI (PN130) for 1.1/4” to 4”
– Connection Options: Threaded, Socket Weld, Butt Weld
– Body Design: Encapsulated for enhanced sealing and durability
– Mounting Pad: ISO 5211 direct mount for actuators
– Stem Design: Blow-out proof stem for high safety
– Handle: No handle (DIN M3 length handleless standard)
– Locking Device: Integrated locking mechanism for secure positioning
– Fire Safe: API 607 certified
– Applications: Oil & gas, chemical processing, high-pressure fluid control, automated industrial systems

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
