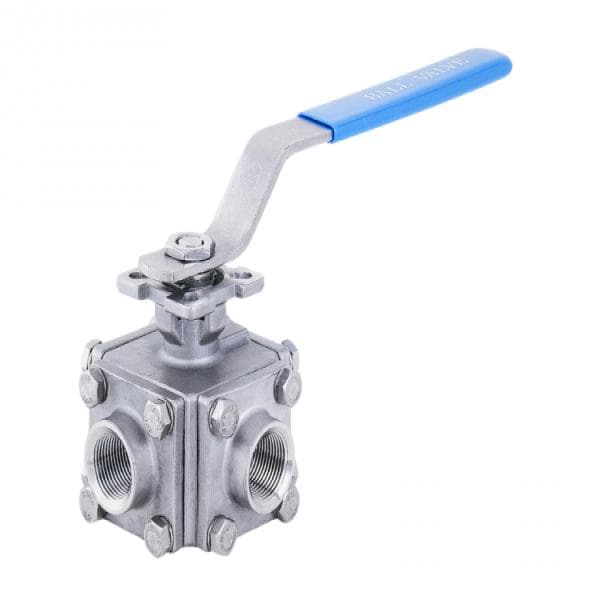

BT-V4W 4-Way Ball Valve – 1000 PSI, L/T/X Port, Direct Mounting Pad

The BT-V4W is a precision-engineered 4-way ball valve designed for applications requiring complex directional flow control. With a robust investment cast body and pressure rating of 1000 PSI (PN63), this valve is built for reliable performance in demanding industrial environments.

The valve offers multiple port configurations—L, T, and X—allowing operators to manage and redirect flow across multiple lines efficiently. It features rotation options at 0°, 90°, 180°, and 270°, providing highly customizable control for various process needs.

Designed with a direct ISO 5211 mounting pad, the BT-V4W supports easy actuator integration for automated systems. Additional safety features include an anti-static device to dissipate electrical charges and a blow-out proof stem to prevent stem ejection under pressure.

The BT-V4W is compatible with a wide range of piping systems via screwed ends that meet ANSI B2.1, BS 21, DIN 259/2999, and ISO 228 standards.

Specifications:

– Valve Type: 4-way multi-directional ball valve
– Model: BT-V4W
– Size Range: 1/2" to 3"
– Pressure Rating: 1000 PSI (PN63)
– End Connections: Screwed ends (ANSI B2.1, BS 21, DIN 259/2999, ISO 228)
– Port Configuration: L-port, T-port, and X-port
– Rotation Options: 0°, 90°, 180°, and 270°
– Mounting Pad: ISO 5211 direct mounting pad for actuator installation
– Body & End Cap: Investment cast for enhanced durability
– Stem: Blow-out proof design
– Safety Features: Anti-static device for charge dissipation
– Applications: Multi-line fluid systems, process control, industrial mixing systems, and automation circuits

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
