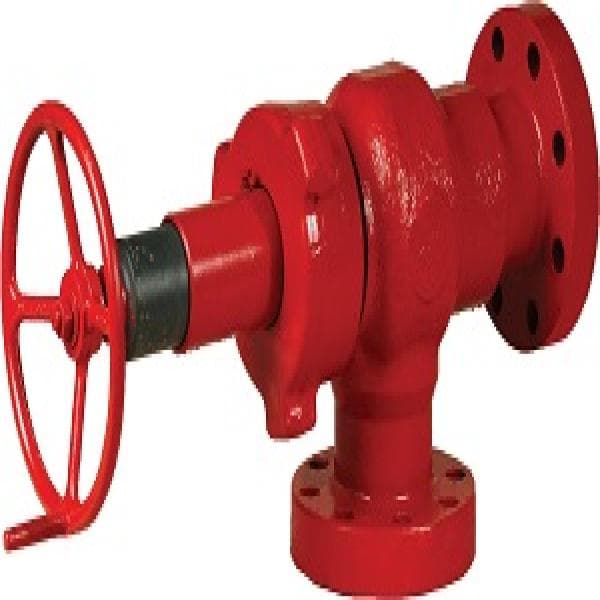

Choke Valve – Adjustable Flow Control, High-Pressure Service | Drilling & Production Applications

The Choke Valve is a vital flow control device engineered for precise regulation of fluid rates and pressure in drilling, well testing, production, and flowback operations. Designed to withstand harsh environments and erosive flow media, this valve ensures optimal performance and long-term reliability in both onshore and offshore conditions.

Constructed from high-strength materials such as Inconel, tungsten carbide, and stainless steel, the valve offers excellent corrosion and erosion resistance, even under extreme pressures and temperatures. It effectively prevents pressure surges and contributes to safe well control by adjusting flow rates during critical operations.

The adjustable orifice mechanism—manual or actuated—allows for fine control of production or injection flow, ensuring steady pressure regulation. The choke valve is available in positive or adjustable types, with needle, plug, or cage trim designs, and is often used in choke manifolds, wellheads, Christmas trees, and early production facilities.

Specifications:

– Valve Type: Adjustable or Positive Choke Valve
– Size Range: 2-1/16” to 7-1/16”
– Pressure Rating: Up to 15,000 PSI working pressure
– Design Standard: API 6A / ISO 10423
– Trim Type: Needle & seat, plug & cage, or multi-stage cage trims
– Trim Material: Tungsten carbide, Inconel, stellite alloy (erosion-resistant)
– Body Material: AISI 410, 4130, Inconel, or duplex stainless steel
– Flow Control: Adjustable or fixed orifice, with precision micrometer stem
– Orifice Size: 2 to 64 beans (variable depending on valve type)
– Service Mediums: Crude oil, natural gas, fracturing fluids, sour service
– Operation Modes: Manual, hydraulic, pneumatic, or electric actuator
– Connection Type: API flanged, threaded, or studded block
– Temperature Rating: -46°C to +121°C (as per API 6A material class)
– Material Class: AA, BB, DD, EE, FF (NACE MR0175 compliance available)
– Product Specification Level: PSL1–PSL4
– Performance Requirement Level: PR1 / PR2
– Inspection & Testing: API 6A, API 16C (for manifolds), hydrostatic and functional tested

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
