V-Control Flanged Control Ball Valve

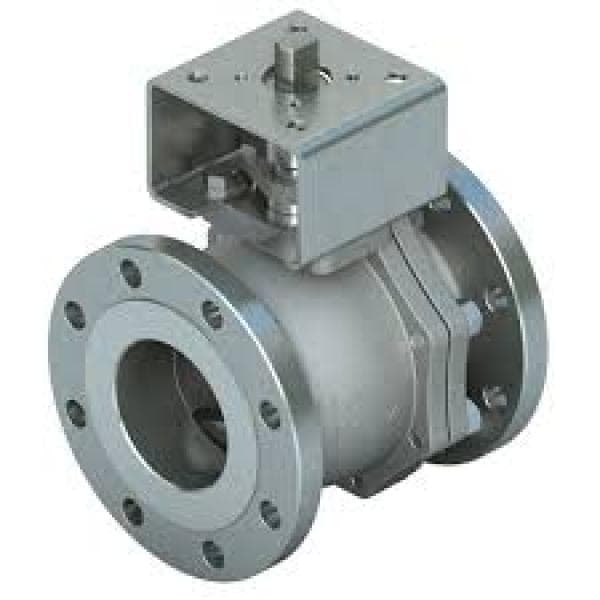

The V-Control Ball Valve is a high-performance industrial valve designed for precision flow regulation. Featuring a V-port ball and flanged ends, this valve allows for accurate control of flow rates in process applications involving gases, liquids, or steam. The body appears to be constructed from stainless steel or carbon steel, with a top-mounted ISO 5211 actuator mounting pad—compatible with pneumatic or electric actuators. The compact design ensures ease of installation in control loops and automated piping networks.

The V-notch design inside the ball offers linear or equal-percentage flow characteristics, making it suitable for throttling services. It is widely used in industries like oil & gas, chemical processing, power generation, and water treatment.

Specifications:

– Valve Type: Control Ball Valve (V-Port)
– Port Type: V-notch ball (modulating)
– Connection Type: Flanged (likely ANSI B16.5 or DIN)
– Body Material: Stainless Steel or Carbon Steel (based on finish)
– Ball Material: Stainless Steel with V-cut profile
– Seats & Seals: PTFE, RTFE, or other high-performance elastomers
– Actuation Interface: ISO 5211 Mounting Pad
– Face Type: Raised Face (RF)
– Control Characteristic: Linear or Equal-Percentage (depending on V-port angle)
– Pressure Rating: Typically Class 150 – 300 (exact depends on model)
– Temperature Range: -20°C to +200°C (depends on seat material)
– Flow Media: Liquids, gases, steam, slurries
– Operation: Manual, Pneumatic or Electric actuator compatible
– Applications: Flow control in process industries, modulating service
– Design Standard: Likely per ANSI / API / ISO standards
– Testing Standard: API 598 / EN 12266

– V-port ball allows stable flow control across wide range
– Suitable for high-cycling control applications
– Provides tight shut-off with bubble-tight sealing (Class VI leakage)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
