FC Gate Valve – Forged Steel, Metal-to-Metal Seal, Full Bore, API 6A

Product Details

Quantity

100
Availability (Lead Time)

4-6 Weeks
Product Location

China
Condition

New
OEM

Quickoildfield
Equipment code

CFIHOS-30000649

Get Quotation Whatsapp

Short Description

High-pressure FC gate valve with forged steel body, metal-to-metal sealing, and full-bore design. Ideal for drilling and production operations in extreme environments.

Description

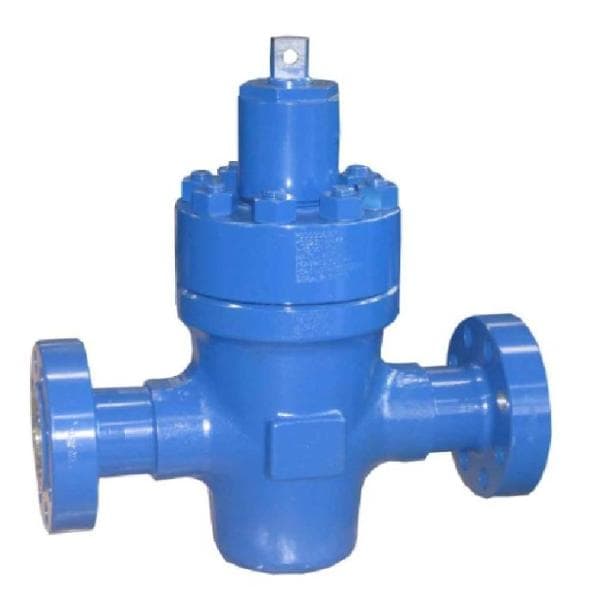

FC Gate Valve – Forged Steel, Metal-to-Metal Seal, Full Bore, API 6A

The FC Gate Valve is a high-performance valve engineered for critical flow control in both onshore and offshore drilling and production environments. Constructed with a forged steel body and metal-to-metal sealing surfaces, this valve offers exceptional strength, leak-tight integrity, and operational reliability even under high-pressure and high-temperature conditions.

Its full-bore design eliminates flow restriction and minimizes pressure drop, making it particularly suitable for pigging operations and processes requiring uninterrupted flow. The slab gate design with floating seats provides bi-directional sealing and allows for reliable shutoff with zero leakage.

Commonly used in wellhead systems and Christmas trees, the FC gate valve meets API 6A standards and is built to perform in the toughest upstream oilfield operations.

Specifications:

– Valve Type: Slab Gate Valve, Full Bore
– Model: FC Type
– Size Range: 1 13/16” to 7 1/16”
– Pressure Ratings: 2,000 PSI to 15,000 PSI (API 2000# – 15000#)
– Body Material: Forged Steel (AISI 4130, AISI 410, Inconel optional)
– Seal Type: Metal-to-metal, with floating seat design
– Design Standard: API 6A (latest edition), NACE MR0175 for H2S environments
– Operation: Manual, Hydraulic, Pneumatic, or Electric actuator
– Temperature Class: K through U (-60°C to +121°C)
– Performance Levels: PR1 & PR2
– Product Specification Levels (PSL): PSL1 to PSL4
– End Connections: Flanged, Threaded, Clamp Hub (as per API 6A)
– Applications: Wellheads, Christmas Trees, Choke & Kill manifolds, BOP systems
– Testing & Inspection: Hydrostatic and functional per API 6A requirements

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
