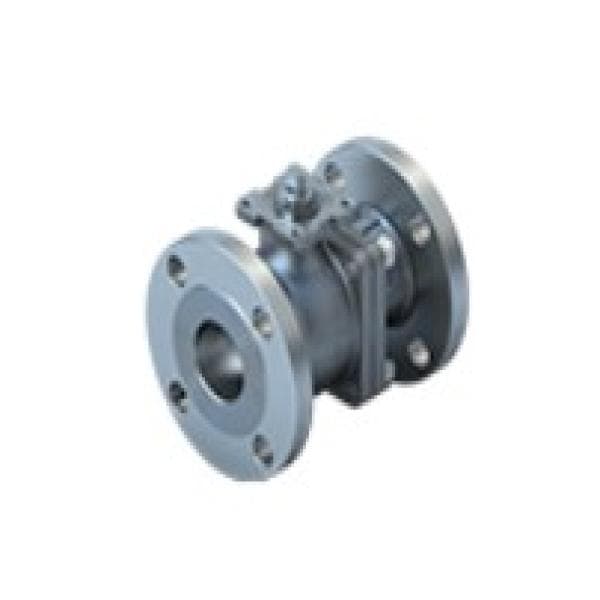

Flanged Ball Valve – Series F15/F30 | Bray

Product Details

Quantity

100
Availability (Lead Time)

6-10 Weeks
Product Location

United Arab Emirates
Condition
OEM

Bray International
Equipment code

CFIHOS-30000649

Get Quotation Whatsapp

Short Description

Bray’s Series F15/F30 Flanged Ball Valves offer high-performance fluid control with a full port design, precision-engineered body, and robust sealing for demanding industrial applications. Available in ASME Class 150 and 300 ratings.

Description

Flanged Ball Valve – Series F15/F30 | Bray

The Flanged Ball Valve – Series F15/F30 by Bray is a high-performance valve solution designed for reliable shutoff and control in general service and industrial applications. With a two-piece, full-port body design and precision-machined components, these valves are engineered to deliver tight sealing, high flow capacity, and long cycle life.

Offered in ASME Class 150 (F15) and Class 300 (F30) pressure ratings, the F15/F30 valves are ideal for use in a wide range of industries, including oil & gas, power generation, chemical processing, pulp & paper, and water treatment. The valves are API 607 fire-safe, feature live-loaded stem packing, and are compatible with a wide range of Bray actuation and automation solutions.

Designed to meet stringent global standards, these flanged ball valves support secure, leak-tight performance and easy maintenance in both manual and automated systems. The rugged body design ensures durability under high pressures and temperature variations, while the secure mount platform allows for quick and reliable actuator mounting.

Specifications:

– Valve Type: 2-piece, floating ball, flanged end
– Series: F15 (Class 150), F30 (Class 300)
– Design Standards: ASME B16.34, B16.10, B16.5
– Size Range: NPS ½” to 12” (DN 15 to DN 300)
– Pressure Ratings:
• F15: ASME Class 150
• F30: ASME Class 300
– Body Materials: Carbon Steel, Stainless Steel, Duplex, Alloy 20, others on request
– Seat Materials: RPTFE (Standard), TFM, UHMWPE, PEEK, others available
– Ball Design: Full port, floating ball
– End Connections: RF or RTJ flanges
– Temperature Range: -50°F to 450°F (-46°C to 232°C), material dependent
– Stem Design: Blowout-proof, live-loaded packing, anti-static
– Fire Safe Design: API 607 / ISO 10497
– Leakage Class: ASME Class VI (soft seat)
– Operation: Manual lever, Gear operator, Pneumatic or Electric actuator
– Mounting: ISO 5211 compliant
– Applications: Chemical, oil & gas, water treatment, refining, pulp & paper, steam systems

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
