Short Description

Bray’s F15/F30 Series Metal Seated Flanged Ball Valve delivers high-performance shut-off and throttling in severe service conditions. Designed for high temperatures, abrasive media, and corrosive fluids.

Description

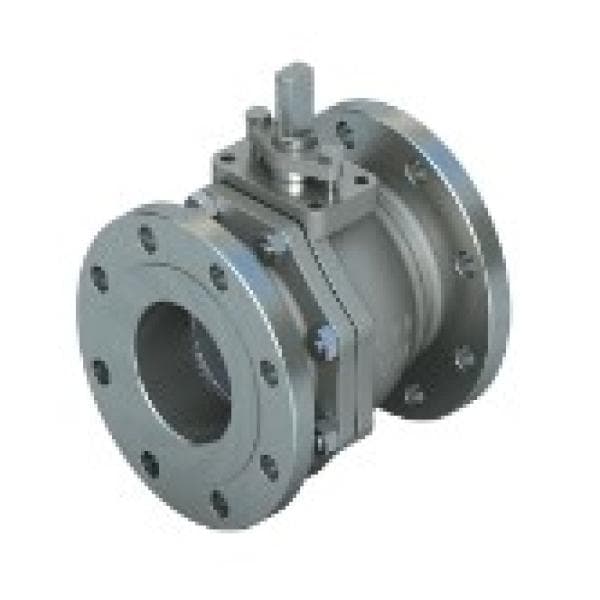

Flanged Ball Valve – Series F15/F30, Metal Seated | Bray

The Flanged Ball Valve – Series F15/F30, Metal Seated by Bray is a robust and versatile valve solution engineered for demanding industrial environments. This high-performance valve features a metal seat design, making it ideal for applications involving high temperatures, abrasive slurries, or corrosive chemicals where soft-seated valves may fail.

The floating ball design ensures tight shutoff performance while the live-loaded stem packing provides low-emission sealing. With a two-piece flanged body and full-port construction, the F15/F30 valves are available in ASME 150 and 300 pressure classes, and are fire-safe tested and certified, offering enhanced safety for critical operations.

The F15/F30 metal-seated variant is well-suited for refining, power generation, mining, pulp & paper, and chemical processing industries. Engineered for durability and precision, the valve is also compatible with Bray's actuators and automation accessories for remote or automatic operation.

Specifications:

– Valve Type: Metal Seated Floating Ball Valve
– Series: F15 (ASME 150#), F30 (ASME 300#)
– Body Style: 2-piece, flanged end
– Seat Type: Metal seated (chromium carbide coated or equivalent)
– Size Range: NPS ½” to 12” (DN 15 to DN 300)
– Pressure Ratings:
• F15: ASME Class 150
• F30: ASME Class 300
– Temperature Range: -50°F to 800°F (-46°C to 427°C), depending on materials
– End Connections: ASME B16.5 RF or RTJ flanges
– Face-to-Face: ASME B16.10
– Leakage Class: ASME Class IV, V, or VI (depending on seat design)
– Body Materials: Carbon Steel, Stainless Steel, Alloy Options
– Seat Materials: Metal with hard coating (e.g., Stellite or Chromium Carbide)
– Ball Design: Full port, floating
– Stem Design: Blowout-proof, anti-static with live-loaded stem packing
– Fire Safe: API 607 / ISO 10497
– Actuation Options: Manual, Pneumatic, Electric, Hydraulic (ISO 5211 mount)
– Applicable Standards: API 598, ASME B16.34, NACE MR0175 (optional)
– Applications: High-temp slurries, hydrocarbons, steam, abrasive fluids, corrosive chemicals

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
