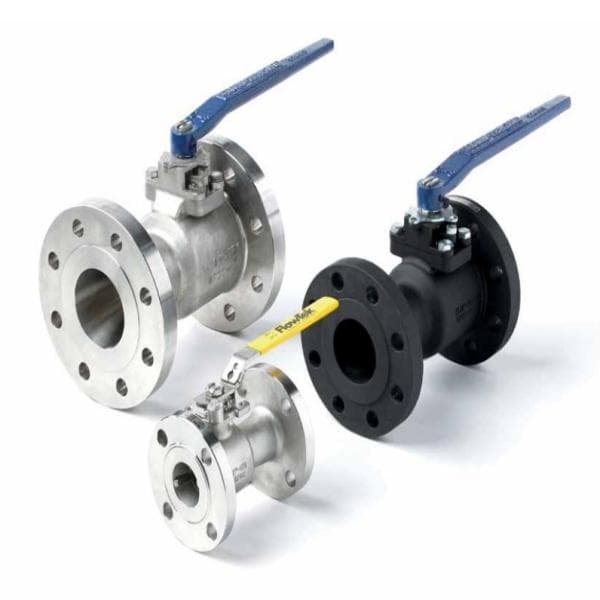

Flanged Ball Valve – Series RF15/RF30 | Bray Flow-Tek

The Flanged Ball Valve – Series RF15/RF30 from Bray Flow-Tek is a precision-engineered, high-performance solution designed to meet demanding industrial standards. These one-piece body, full-port valves offer enhanced strength, reliability, and cycle life, with minimal potential for leakage.

Available in ASME Class 150 (RF15) and Class 300 (RF30) configurations, these valves provide robust sealing and smooth flow characteristics for a variety of applications across the oil & gas, chemical, power, food processing, pulp & paper, and water treatment industries. With ISO 5211 compliant mounting pads, the RF15/RF30 valves support full automation and quick integration into actuation systems.

Their rugged, one-piece body construction minimizes leak paths, while fire-safe certifications and anti-static devices ensure reliability and safety under severe service conditions. Flow-Tek’s Secure Mount system allows for easy actuator or handle installation with guaranteed alignment and strength.

Specifications:

– Valve Type: One-piece flanged ball valve
– Series: RF15 (ASME Class 150), RF30 (ASME Class 300)
– Design Standards: ASME B16.34, B16.10, B16.5, API 607 (Fire Safe)
– Size Range: ½” to 12” (DN 15 to DN 300)
– Pressure Ratings:
 • RF15: ASME Class 150
 • RF30: ASME Class 300
– End Connections: Raised Face (RF) or Ring Type Joint (RTJ) flanges
– Body Materials: Stainless Steel, Carbon Steel, others upon request
– Ball Design: Full port, floating
– Seat Options: RPTFE (Standard), TFM, UHMWPE, PEEK
– Temperature Range: -50°F to 450°F (-46°C to 232°C), depending on materials
– Stem Design: Blowout-proof, live-loaded with Belleville springs
– Fire Safe Compliance: API 607 / ISO 10497
– Mounting: ISO 5211 compliant Secure Mount
– Leakage Class: ASME Class VI
– Operation: Manual, Electric, or Pneumatic actuators available
– Applications: Steam systems, chemicals, oils, water, corrosive media, process plants
