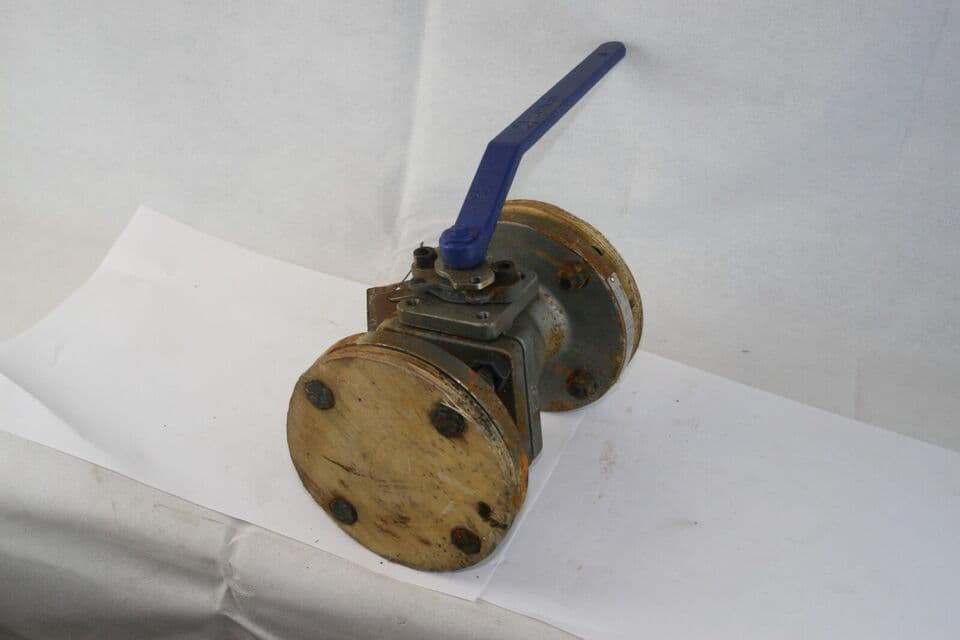

Floating Lever Operated Ball Valve – 2", Full Bore, Class 150, Neway

This high-performance 2-inch floating lever-operated ball valve from Neway is engineered for demanding industrial flow control applications. It features a full bore design for minimal pressure drop, a forged carbon steel A105N body for high strength and pressure durability, and raised face (RF) flanged ends in accordance with ANSI Class 150 standards. The internal components include a corrosion-resistant F316 stainless steel ball and stem, paired with resilient RPTFE seats for reliable sealing and chemical compatibility. Lever-operated for manual control, this valve is suitable for oil & gas, petrochemical, water treatment, and general industrial service.

Specifications:

– Valve Type: Floating Ball Valve
– Operation: Manual Lever Operated
– Size: 2 inch
– Bore: Full Bore (FB)
– Pressure Rating: Class 150 (ANSI B16.5)
– End Connection: Flanged, Raised Face (RF)
– Body Material: ASTM A105N (Carbon Steel, Forged)
– Seat Material: Reinforced PTFE (RPTFE)
– Ball Material: F316 Stainless Steel
– Stem Material: F316 Stainless Steel
– Design Standard: API 6D / ASME B16.34
– Face-to-Face: ASME B16.10
– Fire Safe: Optional per API 607
– Application: General industry, oil & gas, water systems
– Manufacturer: Neway Valve Co., Ltd.
