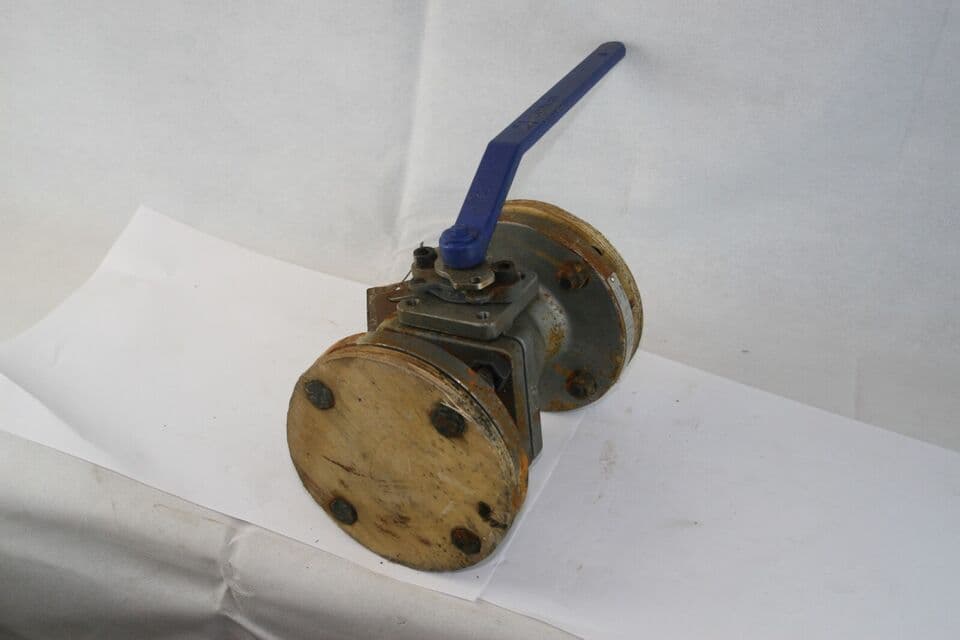

Neway Floating Lever Operated Ball Valve – 2", Reduced Bore, Class 150

The Neway 2" Class 150 floating ball valve is a precision-engineered valve designed for effective shut-off in industrial pipelines. This reduced bore (RB) valve features a forged A105N carbon steel body for superior strength and pressure resistance, a raised face (RF) flanged end connection, and a manually operated lever for easy and secure handling. Internally, it is equipped with a corrosion-resistant F316 stainless steel ball and stem, along with RPTFE seats that offer excellent chemical resistance and sealing integrity. This configuration is ideal for oil and gas, petrochemical, chemical, and water handling applications where reduced flow is acceptable.

Specifications:

– Valve Type: Floating Ball Valve
– Operation: Manual Lever Operated
– Size: 2 inch
– Bore: Reduced Bore (RB)
– Pressure Rating: Class 150 (ANSI B16.5)
– End Connection: Flanged, Raised Face (RF)
– Body Material: A105N (Forged Carbon Steel)
– Seat Material: RPTFE (Reinforced PTFE)
– Ball Material: F316 Stainless Steel
– Stem Material: F316 Stainless Steel
– Design Standard: API 6D / ASME B16.34
– Face-to-Face Standard: ASME B16.10
– Fire Safe Design: Optional per API 607
– Application Areas: Oil & Gas, Petrochemical, Water, Industrial Process Lines
– Manufacturer: Neway Valve Co., Ltd.

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
