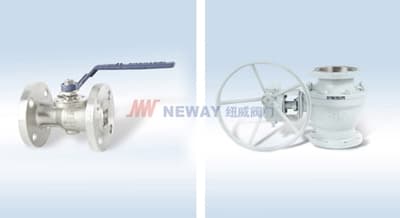

Floating Lever Operated Ball Valve – 4", Full Bore, Class 150, Neway

The Neway 4" Class 150 floating ball valve is engineered for precision control and shut-off in demanding industrial environments. Featuring a full bore (FB) design, it allows unrestricted flow and minimizes pressure loss. The valve body is forged from A105N carbon steel, offering durability and performance in high-pressure applications. Equipped with reinforced PTFE (RPTFE) seats, the valve provides excellent sealing and resistance to corrosion. Internally, it features F316 stainless steel for the ball and stem, ensuring enhanced corrosion resistance and mechanical strength. Designed to ANSI standards, this valve is ideal for use in petrochemical, oil and gas, water treatment, and process industries.

Specifications:

– Valve Type: Floating Ball Valve
– Operation: Manual Lever Operated
– Size: 4 inch
– Bore: Full Bore (FB)
– Pressure Rating: Class 150 (ANSI B16.5)
– End Connection: Flanged, Raised Face (RF)
– Body Material: A105N (Forged Carbon Steel)
– Seat Material: RPTFE (Reinforced PTFE)
– Ball Material: F316 Stainless Steel
– Stem Material: F316 Stainless Steel
– Design Standard: API 6D / ASME B16.34
– Face-to-Face Standard: ASME B16.10
– Fire Safe Design: API 607 (Optional)
– Application: Oil & Gas, Chemical, Power, Water Treatment
– Manufacturer: Neway Valve Co., Ltd.

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
