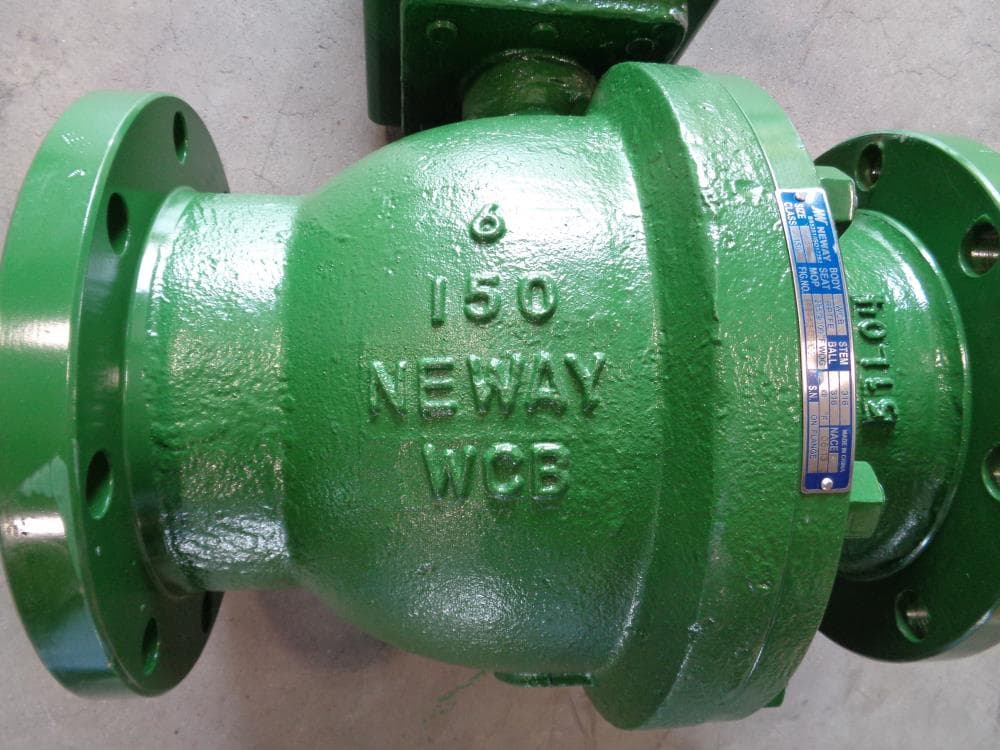

Floating Lever Operated Ball Valve – 6", Full Bore, Class 150, Neway

The Neway 6" Class 150 floating ball valve offers high-integrity flow shut-off for industrial fluid systems. This full bore (FB) design minimizes flow restriction and pressure drop, making it suitable for applications requiring high efficiency. Constructed with a forged A105N carbon steel body and reinforced PTFE (RPTFE) seats, the valve ensures excellent chemical resistance and tight sealing. The F316 stainless steel ball and stem provide robust performance in corrosive and high-temperature environments. Designed with a raised face (RF) flange connection, this lever-operated valve conforms to ANSI B16.5 standards and is widely used in petrochemical, oil & gas, water, and general industrial systems.

Specifications:

– Valve Type: Floating Ball Valve
– Operation: Manual Lever Operated
– Size: 6 inch
– Bore: Full Bore (FB)
– Pressure Rating: Class 150 (ANSI B16.5)
– End Connection: Flanged, Raised Face (RF)
– Body Material: A105N (Forged Carbon Steel)
– Seat Material: RPTFE (Reinforced PTFE)
– Ball Material: F316 Stainless Steel
– Stem Material: F316 Stainless Steel
– Design Standard: API 6D / ASME B16.34
– Face-to-Face Standard: ASME B16.10
– Fire Safe Design: API 607 (on request)
– Application: Oil & Gas, Chemical, Water, General Industrial
– Manufacturer: Neway Valve Co., Ltd.

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
