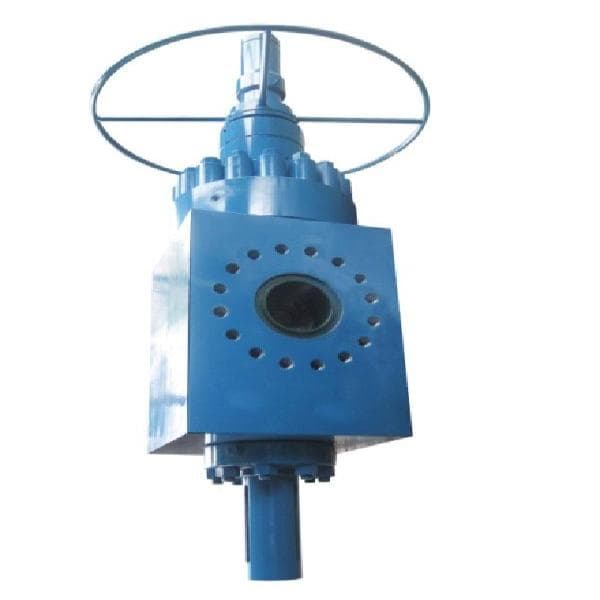

Frac Gate Valve – Full Bore, High-Pressure, API 6A Compliant for Hydraulic Fracturing

The Frac Gate Valve is purpose-built to withstand the extreme conditions of hydraulic fracturing in both onshore and offshore operations. Designed with high-strength forged steel and advanced metal-to-metal or elastomeric sealing technology, this valve offers leak-tight closure even at pressures up to 15,000 PSI.

The full-bore, straight-through design eliminates flow restrictions, supporting efficient proppant flow and minimizing erosion during pumping. It enables high-rate pumping and quick actuation, making it a critical component of frac trees and zipper manifolds.

With replaceable seats and gate, the valve is field-serviceable, allowing for rapid maintenance and reducing downtime in critical operations. Available in manual or actuator-operated versions, the frac gate valve ensures precise flow control, exceptional durability, and maximum safety in high-pressure environments.

Specifications:

– Valve Type: Frac Gate Valve
– Design Type: Slab gate or expanding gate (depending on application)
– Size Range: 2-1/16” to 7-1/16”
– Pressure Rating: 10,000 PSI to 15,000 PSI (API 6A)
– Working Mediums: Proppant slurry, fracturing fluids, oil, gas, water
– Temperature Range: -46°C to +121°C (KU Class)
– Body Material: AISI 4130 Forged Steel, Inconel cladding optional
– Sealing Type: Metal-to-metal or elastomeric seal
– Seal Direction: Bi-directional
– Bore Type: Full bore, piggable
– End Connections: API 6A flanged or studded
– Design & Manufacturing Standard: API 6A (latest edition)
– Material Class: AA to FF
– Product Specification Levels: PSL1 to PSL4
– Performance Requirement: PR1 & PR2
– Operation Mode: Manual, hydraulic actuator, or electric actuator
– Application: Hydraulic fracturing, frac trees, zipper manifolds, stimulation services
– Inspection & Testing: Per API 6A requirements – pressure, seat, and function tested

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
