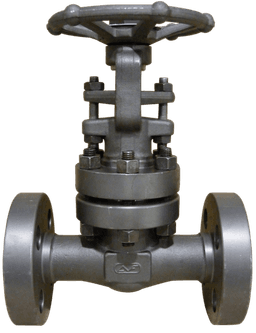

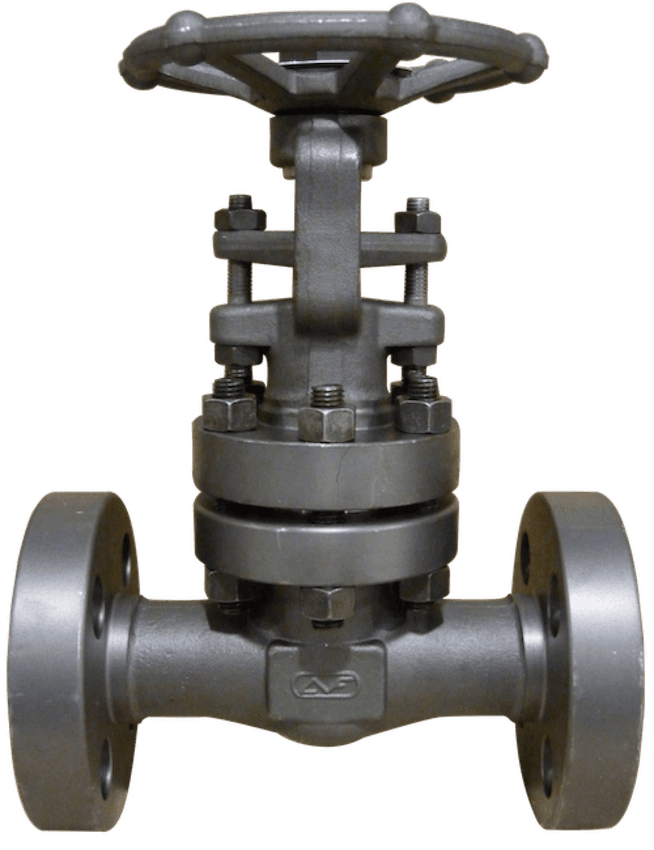

Gate Valve 1" Class 150 – LVF A105N RF Trim 8, Handwheel Operated

The LVF 1" #150 gate valve is designed for dependable shut-off performance in industrial applications involving corrosive or sour service media. Built with a forged carbon steel A105N body and raised face (RF) flanged ends, this valve features a reduced bore (RB) and Trim 8 internals for enhanced resistance and flow control. It employs an OS&Y (Outside Screw & Yoke) configuration with a bolted bonnet (BB) for ease of maintenance. Compliant with NACE MR0103 and MR0175 standards, this valve is suitable for pipelines in chemical, petrochemical, and energy sectors requiring safe and durable operation.

Specifications:

– Valve Type: Gate Valve
– Size: 1 inch
– Pressure Rating: Class 150
– Body Material: A105N (Forged Carbon Steel)
– End Connections: RF (Raised Face) Flanged Ends
– Bore Type: Reduced Bore (RB)
– Trim: Trim 8
– Bonnet Design: Bolted Bonnet (BB)
– Stem Design: OS&Y (Outside Screw & Yoke)
– Operator: Manual Handwheel
– Compliance: NACE MR0103 / MR0175
– Applications: Oil & gas, chemical processing, water treatment, and sour gas systems

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
