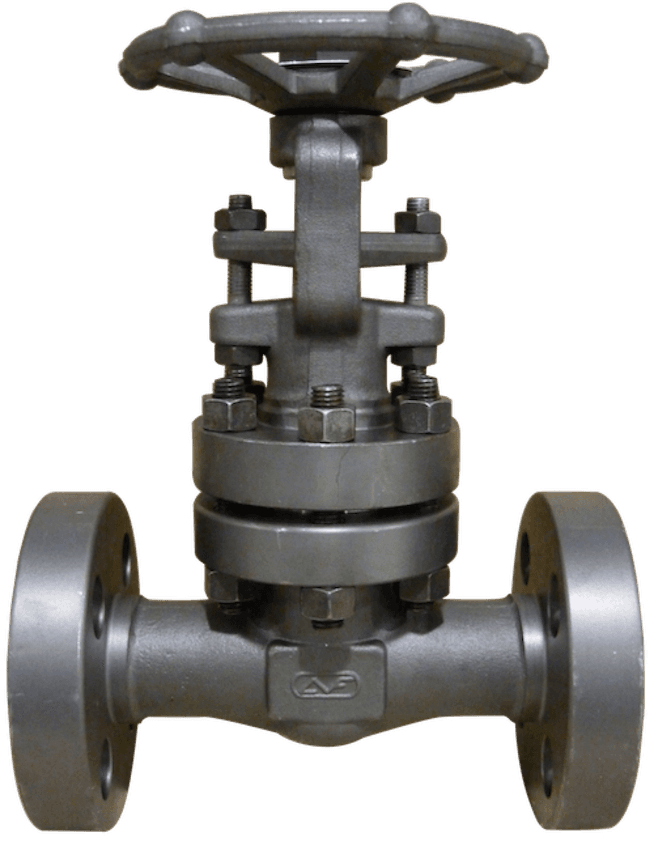

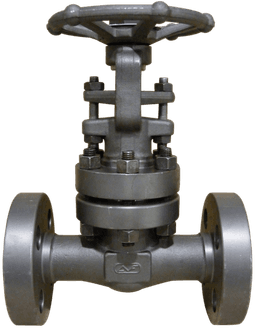

LVF 1-1/2" Gate Valve – Class 300, A105N, BB, RB, Flanged

The LVF 1-1/2" Class 300 Gate Valve is engineered for reliable shut-off service in high-pressure fluid systems. Built with a forged A105N carbon steel body, the valve features a bolted bonnet (BB) and reduced bore (RB) design to maintain structural integrity and minimize flow disruption. Flanged end connections allow easy installation and maintenance. Designed for Class 300 pressure ratings, it is suitable for demanding applications in industries such as oil and gas, power, and chemical processing. The valve is fitted with internal trim coded as 3BR 107, indicating material and design specification suited for durability and tight sealing.

Specifications:

– Valve Type: Gate Valve
– Size: 1-1/2 inch
– Pressure Class: 300#
– Body Material: A105N Forged Carbon Steel
– Design: Bolted Bonnet (BB)
– Bore Type: Reduced Bore (RB)
– End Connection: Flanged (Standard Machined Face - SM F)
– Trim Code: 3BR 107
– Standards: Likely API 602 / ASME B16.34 (typical for forged valves)
– Application: High-pressure isolation service in oil & gas, petrochemical, utility pipelines
– Operation: Manual (typically handwheel operated)
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
