1" Gate Valve #800 – A105N, FNPT Ends, Trim 8, LVF Valves

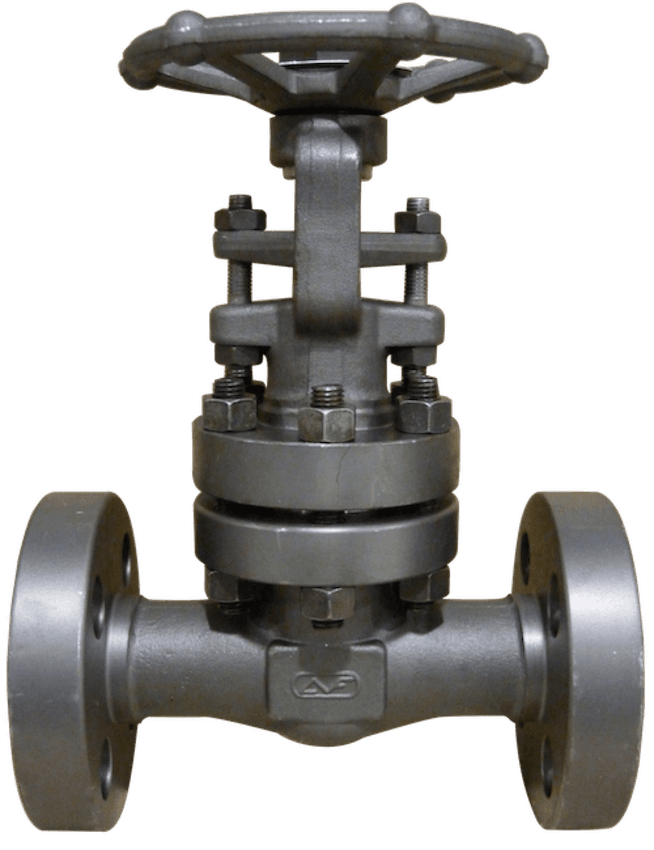

The LVF 1" Gate Valve is a high-performance forged steel valve designed to provide tight shut-off in high-pressure applications. Rated for Class 800 service, this valve features a forged A105N carbon steel body with Trim 8 hard-faced seating surfaces for enhanced durability. It includes a rising stem (OS&Y) for visible position indication, a bolted bonnet for serviceability, and FNPT (Female NPT) threaded ends for easy pipeline connection. Compliant with NACE MR0103 and MR0175 standards, this valve is suitable for sour gas and other corrosive media. The handwheel operator ensures smooth manual operation, making it ideal for use in refineries, petrochemical facilities, and other demanding environments.

Specifications:

– Valve Type: Gate Valve
– Size: 1 inch
– Pressure Class: Class 800
– Body Material: ASTM A105N (Forged Carbon Steel)
– Trim: Trim 8 (A105N + STL.6 hard-facing)
– Ends: FNPT – Female NPT Threaded Ends
– Stem Type: Rising Stem – OS & Y (Outside Screw and Yoke)
– Bonnet Type: Bolted Bonnet (BB)
– Operator: Manual Handwheel
– Design Standard: API 602 / ASME B16.34
– Thread Standard: ASME B1.20.1
– Service Compatibility: NACE MR0103 / MR0175 (Sour Service Certified)
– Application: High-pressure shut-off in oil & gas, chemical, and power industries
– Manufacturer: LVF Valves
