10" Gate Valve #150 – API 600, RF, A216 WCB Body – Neway

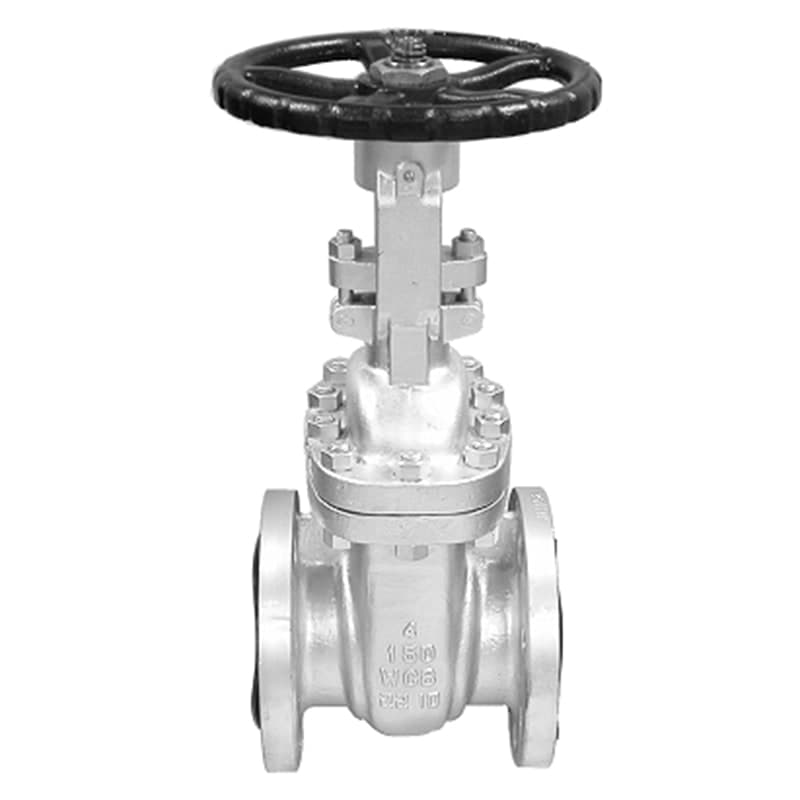

The Neway 10" Gate Valve is built for reliable shutoff in a wide range of industrial pipeline systems. Compliant with API 600 specifications, this valve features a rugged A216 WCB carbon steel body, bolted bonnet, and rising stem design with OS&Y (Outside Screw and Yoke) configuration. The valve's internals include Trim 8 construction with an A105N+STL.6 wedge and seat, providing excellent wear resistance and sealing. Its flanged RF ends conform to ASME B16.5, ensuring compatibility with most piping systems in oil, gas, power, and water sectors. Suitable for standard industrial temperature and pressure conditions, it delivers dependable performance with low pressure drop.

Specifications:

– Valve Type: Gate Valve
– Size: 10 inch
– Pressure Class: Class 150
– Design Standard: API 600
– Body Material: A216 WCB (Cast Carbon Steel)
– Trim Type: Trim 8 (A105N+STL.6)
– Stem Material: A182 (Stainless Steel)
– End Connection: Flanged Raised Face (RF)
– Bonnet Type: Bolted Bonnet
– Stem Design: Rising Stem, OS&Y
– Operation: Manual with Handwheel (H)
– Face-to-Face: ASME B16.10
– Flange Standard: ASME B16.5
– Temperature Rating: Per WCB/Trim 8 Specification
– Manufacturer: Neway Valve Co., Ltd.
– Applications: Oil & gas, petrochemical, waterworks, energy, and industrial services
