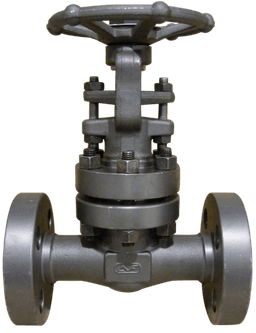

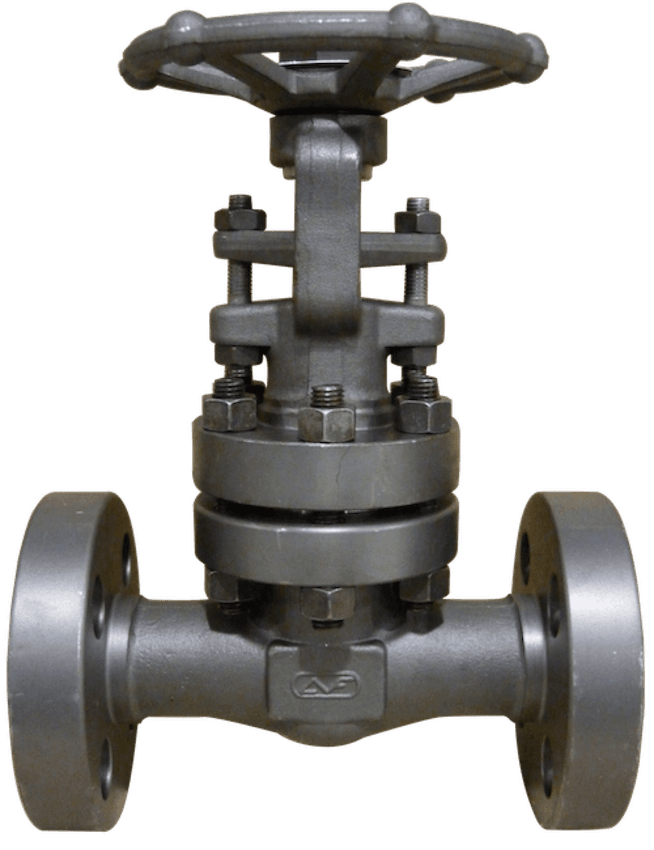

LVF 2" Class 150 Gate Valve – A105N, BB, RB, Flanged

The LVF 2" Gate Valve is a robust and reliable solution designed for Class 150 pressure applications across industrial sectors including oil and gas, chemical, and power generation. Built with a forged A105N carbon steel body, the valve features a bolted bonnet (BB) and a reduced bore (RB) configuration for optimal strength and efficient flow control. The valve’s flanged end connections ensure easy integration into pipeline systems, and its construction supports high mechanical integrity under moderate pressure and temperature conditions. The "1BR 108" marking references the internal trim and part specification.

Specifications:

– Valve Type: Gate Valve
– Size: 2 inch
– Pressure Rating: Class 150
– Body Material: A105N Forged Carbon Steel
– Design: Bolted Bonnet (BB)
– Bore Type: Reduced Bore (RB)
– End Connection: Flanged (Standard Machined Face - SM F)
– Trim Specification: 1BR 108
– Standard Compliance: API 600 / ASME B16.34 (assumed based on valve class and type)
– Applications: Flow isolation in pipelines, oil & gas facilities, water distribution, petrochemical systems
– Operation: Manual handwheel (not explicitly listed, typical for this type)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
